ABMM-14.7456MHZ-B2-T Overview

Crystals +/-20ppm 14.7456MHZ

ABMM-14.7456MHZ-B2-T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Abracon
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Load Capacitance	18 pF
Frequency	14.7456 MHz
Tolerance	20 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 70 C
Length	7 mm
Width	5 mm
Height	1.3 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Ceramic Crystal
ESR	50 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	1000
Unit Weight	0.006562 oz

Preview

Download Datasheet

View All

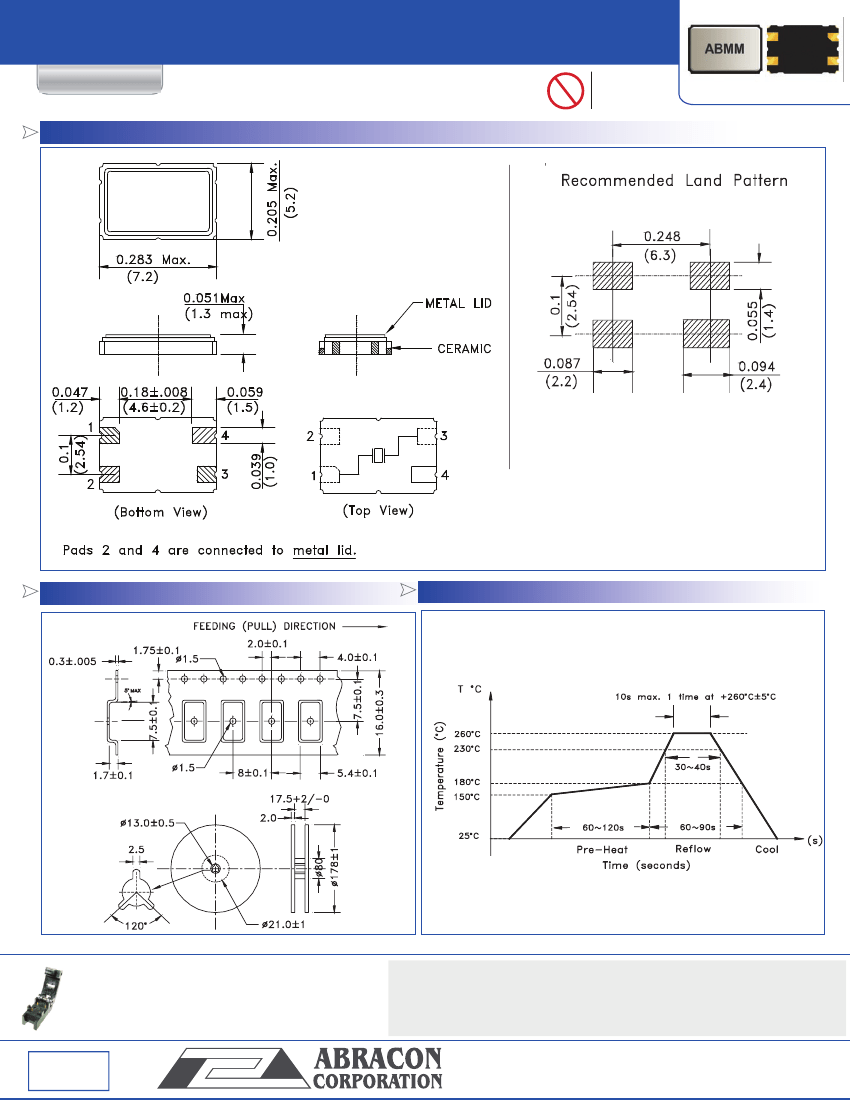

CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL

ABMM

FEATURES:

• Suitable for RoHS reflow

• Low height 1.3 mm max

• AT-strip cut offers a tight tolerance & stability

Pb

RoHS

Compliant

APPLICATIONS:

• Computers, Modems, Microprocessors

• Communication, Test equipment

• PCMCIA

7.0 x 5.0 x 1.3 mm

| | | | | | | | | | | | |

| |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

ABMM

6.0 MHz to 125 MHz

AT-cut

6.0 MHz ~ 33.0 MHz (Fundamental: Standard)

33.01 MHz - 125 MHz (Third-Overtone: Standard)

33.01 MHz ~ 50.0 MHz (Fundamental: Please spedcify. See options)

Operating

Temperature

Storage

Te

mperature

Frequency

Tolerance

at +25°C

Frequency Stability over the

Operating

Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

0

Load Capacitance C

L

Drive Level

Aging at 25°C (first year)

Insulation Resistance

- 10°C to + 60°C (see options)

- 40°C to + 85°C

± 50 ppm max. (see options)

See

Table

1

7pF max.

18pF (see options)

500µW

max., 100µW typical

± 5ppm max.

500MΩ min at 100Vdc ± 15V

ESR (Ω) Max

TABLE 1: STANDARD ESR

6.000 - 11.999(Fund)

12.000 - 20.000(Fund)

Frequency (MHz)

70

50

20.000 - 50.000(Fund)

33.000 - 125.00(3rd O/T)

Frequency (MHz)

ESR (Ω) Max

40

80

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABMM –

MHz -

-

R

-

Pac kag ing

Blan

k:

Bulk

T: Ta

pe & Ree l

(1k)

T2: Ta

pe & Ree l

(250)

Fre qu e nc y in MHz

e .g.

6.000MHz

14.318 18MHz

26.000 MHz

Load Capac itance

P lea

se s

pe cify CL

(8

to

33 pF) in pF or S for S e rie

s

P lea

se

co nta ct

ABRACON

fo r othe r

va lue

s

Mode

F: Fund.AT

for

>33 MHz

ES R if o the r than S TD

S pe cify a va lue in Ω

Ope rating Te mp.

E: 0°C

~ +70°C

B: -20°C

~ +70°C

C:

-30°C

~ +70°C

N:

-30°C

~ +85°C

D: -40°C

~ +85°C

Fre q. Tole ranc e

1:

±

10 ppm

7: ±

15 ppm

2: ± 20

ppm

3:

± 25

ppm

4: ±

30 ppm

Fre q. S tability

U: ±

10 pp m

(*)

G: ±

15 ppm

(**

)

X: ± 20

pp m

W: ± 25

pp m

Y: ±

30 pp m

H:

±

35 pp m

* -10 to +60

°C

only.

°C

** Option

E, B,

and10 to +60 only.

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 02.26.12

30332

Esperanza,

Rancho Santa

Margarita,

California

92688

tel

949-546-8000

|

fax

949-546-8001|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
