CX2016DB48000E0DZZA1 datasheet, PDF

Datasheet> All Categories > Passive components> CX2016DB48000E0DZZA1

CX2016DB48000E0DZZA1: DescriptionCrystals AEC-Q200 48MHz 11.1pF 2x1.6mm; CategoryPassive components; File Size100KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

CX2016DB48000E0DZZA1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CX2016DB48000E0DZZA1	-	-	View	Buy Now

CX2016DB48000E0DZZA1 Overview

Crystals AEC-Q200 48MHz 11.1pF 2x1.6mm

CX2016DB48000E0DZZA1 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	2 mm x 1.6 mm
Load Capacitance	11.1 pF
Frequency	48 MHz
Tolerance	15 PPM
Frequency Stability	-
Drive Level	10 uW
Length	2 mm
Width	1.6 mm
Height	0.4 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	SMD Crystal
ESR	22 Ohms
Mounting Style	SMD/SMT
Lead Spacing	1.4 mm
Qualification	AEC-Q200
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

Crystal Units

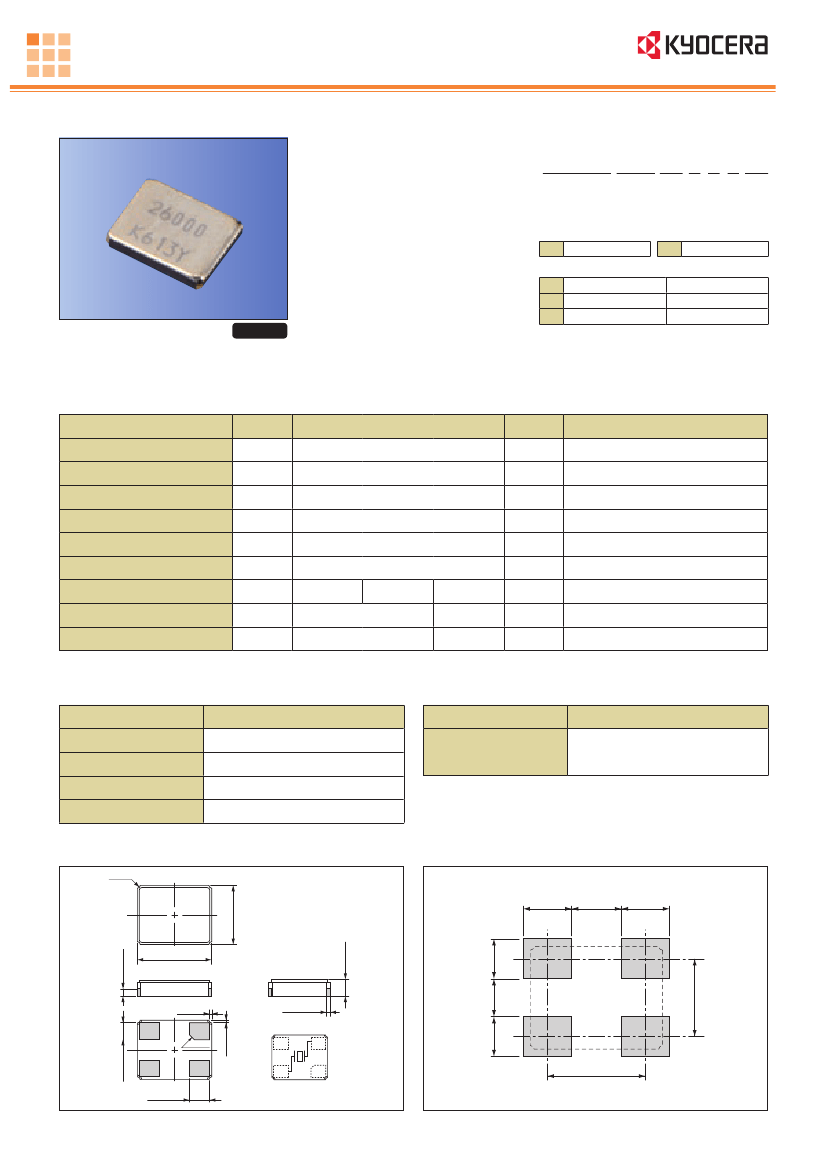

Surface Mount Type CX2016DB

2.0×1.6mm for Consumer Products/ Mobile Communications/ Automotive

Features

• Crystal unit for Consumer Products

• Ultra-miniature and low profile

(2.0×1.6×0.40mm)

• Ceramic package

• Reflow compatible

• AEC-Q200 qualified

(Please contact us for Automotive use)

How to Order

CX2016DB 27000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series (CX2016DB)

②

Frequency

③

Load Capacitance

④

Frequency Tolerance

8 pF

-10

+70°C

-30

+85°C

-40

+125°C

±15×10

±50×10

Applications

• Digital Electronics

• Consumer Products

• Mobile Communications, Bluetooth

Wireless LAN

• Car Electronics

Bluetooth

Trademarks are owned by

Bluetooth SIG Inc.

Symbol

_nom

_tol

_use

_stg

_tem

Specification

16000 to 60000

Fundamental

±15

Table 1

Table 2

-10

+70

-40

+85

±15

-30

+85

-40

+125

-40

+125

±50

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

RoHS Compliant

⑦

Individual Specification

Packaging (Tape & Reel 1000/ 3000 pcs./ reel)

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Tolerance

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Please contact us for other specifications.

Units

kHz

―

×10

ohm

μW

°C

×10

Remarks

Please contact us for other Load Capacitance.

25°C±3°C

Freq. deviation from the value at 25°C

Table1 Motional Series Resistance

Frequency Range

16000≤f

_nom

<18000kHz

18000≤f

_nom

<26000kHz

26000≤f

_nom

<40000kHz

40000≤f

_nom

≤60000kHz

Motional Series Resistance

200Ω max.

150Ω max.

60Ω max.

50Ω max.

Table2 Level of Drive

Frequency Range

16000≤f

_nom

≤60000kHz

Level of Drive

10μW (100μW max.)

Dimensions

4−R0.1

1.60±0.10

(Unit: mm)

Recommended Land Pattern

0.9

0.5

0.9

(Unit: mm)

0.15±0.05

0.3

0.8

2.00±0.10

0.40±0.05

4−0.10

4−0.10±0.1

4−0.49±0.1

C 0.20

4−0.08

GND

4−0.57±0.1

CONNECTION

(TOP VIEW)

1.4

0.8

1.1

CX2016DB48000E0DZZA1 Related Products

	CX2016DB48000E0DZZA1	CX2016DB48000C0FRZC1	CX2016DB48000C0FLHA1	CX2016DB48000E0DLFA1
Description	Crystals AEC-Q200 48MHz 11.1pF 2x1.6mm	Crystals AEC-Q200 48MHz 7pF 2x1.6mm	Crystals AEC-Q200 48MHz 8.79pF 2x1.6mm	Crystals AEC-Q200 48MHz 11.1pF 2x1.6mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	AVX	AVX	AVX	AVX
Product Category	Crystals	Crystals	Crystals	Crystals
RoHS	Details	Details	Details	Details
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	2 mm x 1.6 mm	2 mm x 1.6 mm	2 mm x 1.6 mm	2 mm x 1.6 mm
Load Capacitance	11.1 pF	7 pF	8.79 pF	11.1 pF
Frequency	48 MHz	48 MHz	48 MHz	48 MHz
Tolerance	15 PPM	15 PPM	15 PPM	15 PPM
Drive Level	10 uW	10 uW	10 uW	10 uW
Length	2 mm	2 mm	2 mm	2 mm
Width	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Height	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Type	SMD Crystal	SMD Crystal	SMD Crystal	SMD Crystal
ESR	22 Ohms	50 Ohms	50 Ohms	50 Ohms
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Lead Spacing	1.4 mm	1.4 mm	1.4 mm	1.4 mm
Qualification	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Factory Pack Quantity	3000	3000	1000	3000
Packaging	Reel	Reel	Reel	Reel

Recommended Resources

Forward and reverse control circuit of micro DC motor a

Battery-driven low-power reference voltage generation circuit

3V regulated power supply circuit

Automatic navigation light

Practical electronic ballast circuit diagram

Single Tube TV Antenna Amplifier 2

Signal Generator Data: Signal generator information, I made the information I found, and I put it together to share with my friends, maybe it will be useful..................; cheng-happy MCU

I would like to ask, what is the inductor routing problem of this buck power supply circuit?: [i=s]This post was last edited by kal9623287 on 2022-7-4 07:22[/i]I would like to ask, the teacher said that there is a problem with the inductor routing of the PCB board of this buck power supply cir...; kal9623287 Power technology

Digital Oscilloscope: Dear experts: We need to choose a digital oscilloscope that can be accessed remotely for embedded system development. We don't know which one can meet the requirements? I hope someone who has used it ...; fjiahao Embedded System

Power battery management system protection solution: [i=s]This post was last edited by qwqwqw2088 on 2018-1-16 10:29[/i] [color=#000000][font=Arial,]Author: Wang Maofan[/font] The safety of electric vehicles[/font][font=Arial,], especially the safety of...; qwqwqw2088 Analogue and Mixed Signal

485 communication circuit based on SN65HVD22: Nearby is a 485 communication circuit based on SN65HVD22The 485 chip has its own electrostatic protection function, the transmission distance can reach 1200 meters, supports 256 nodes, and a transmiss...; aboutnow Microcontroller MCU

Unlimited Doorbell: [url]https://bbs.eeworld.com.cn/thread-107280-1-1.html[/url] I want to follow the production process of this great god to make an unlimited doorbell, but I can't find it on Taobao, jc618. Where can I ...; wgqsll DIY/Open Source Hardware
