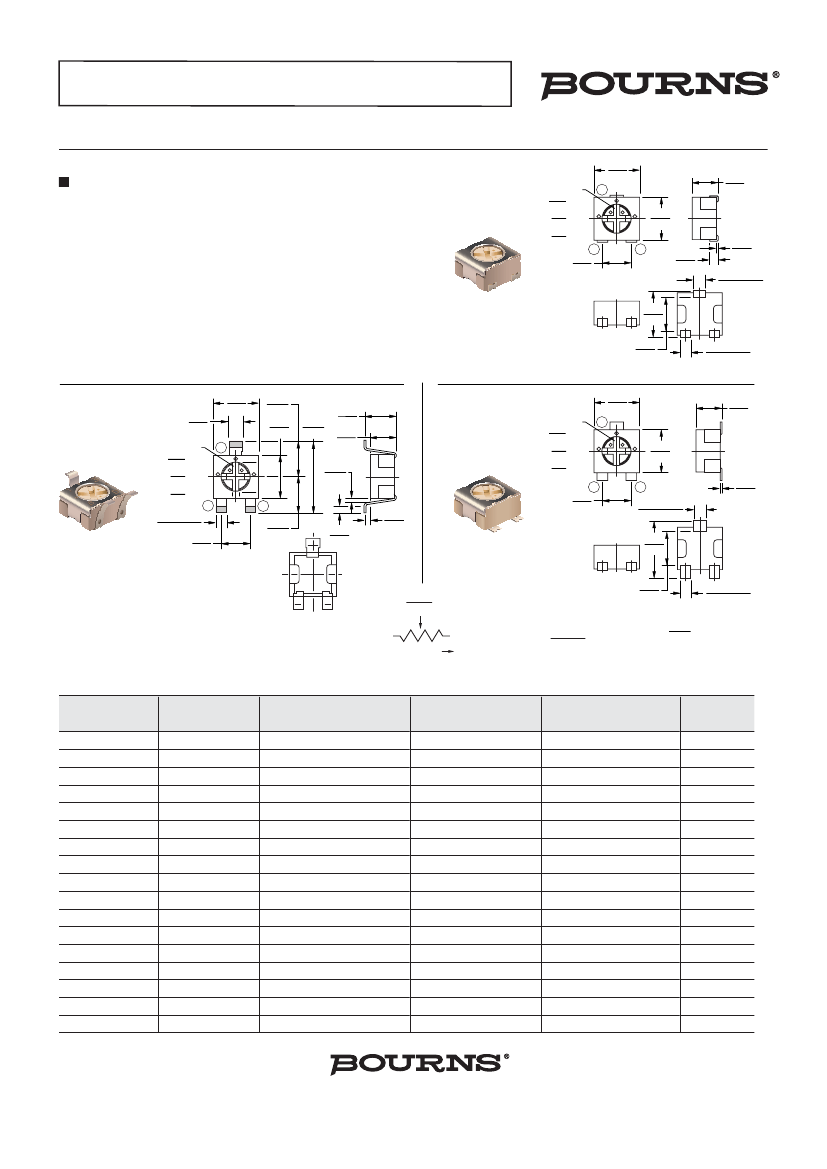

1. Surface Mount 3 mm Square / Single-turn / Cermet / Sealed
2. Available in J-hook, gull-wing and reverse gull-wing pin styles
3. Units can be pre-adjusted at clockwise, counter-clockwise
or standard 50 % position
4. 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard
trimmer footprint
5. RoHS compliant*
6. Metal cover for thermal protection/heat transfer
7. For trimmer applications/processing guidelines,
click here
3.6
(.142)
2.8
(.110)
3.4
(.134)
2
5.8
(.228)
2.5
(.098)
2.0
(.079)
3.6
(.142)
ADJ. SLOT
2.2 DIA.
(.087)
.45
WIDE
X
(.018)
.40
DEEP
X
(.016)
3.6
(.142)
ADJ. SLOT
2.2 DIA.
(.087)
.45
WIDE
X
(.018)
.40
DEEP
X
(.016)
2
3.4
(.134)
1
0.6
(.024)
2.0
(.079)
3
2.3
(.091)
MIN.
0.1
(.004)
1.00 ± 0.15
(.039 ± .006)
PVG3A
3.6
(.142)
2.7
(.106)
0.75 ± 0.15
(.030 ± .006)
1.1
(.043)
ADJ. SLOT
2.2 DIA.
(.087)
0.50
WIDE
X
(.020)
0.55
DEEP
X
(.022)
2
3.4
(.134)
3
1
1.00 ± 0.15
(.039 ± .006)
4.5
(.177)
2.0
(.079)
2 PLCS.
0.1
(.004)
MIN.
1
2.8
(.110)
0.5
2 PLCS.
(.020)
0.5
(.020)
3
2.3
(.091)
MIN.
0.1
(.004)
PVG3K
0.8 ± 0.2
(.031 ± .008)
2.3
(.091)
PVG3G
Circuit
2.7
(.106)
0.75 ± 0.15
(.030 ± .006)
#2 (Wiper)
#3
#1
Clockwise
DIMENSIONS:
MM
(INCHES)
TOLERANCES: ± 0.25
(.010)
EXCEPT WHERE NOTED
Top Adjustment (Standard J-Hook Style)
Part Number
PVG3A100C01
PVG3A200C01
PVG3A500C01
PVG3A101C01
PVG3A201C01
PVG3A501C01
PVG3A102C01
PVG3A202C01
PVG3A502C01
PVG3A103C01
PVG3A203C01
PVG3A503C01
PVG3A104C01
PVG3A204C01
PVG3A504C01
PVG3A105C01
PVG3A205C01
Power Rating
(W)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
Number of Turns
(Effective Rotation Angle)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
Mechanical Rotation
Angle
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
Total Resistance Value
10 ohm ± 20%
20 ohm ± 20%
50 ohm ± 20%
100 ohm ± 20%
200 ohm ± 20%
500 ohm ± 20%
1k ohm ± 20%
2k ohm ± 20%
5k ohm ± 20%
10k ohm ± 20%
20k ohm ± 20%
50k ohm ± 20%
100k ohm ± 20%
200k ohm ± 20%
500k ohm ± 20%
1M ohm ± 20%
2M ohm ± 20%
TCR
(ppm/°C)
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
Operating Temperature Range: -55 to +125 °C
Soldering Method: Reflow / Soldering Iron
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PVG3.pdf
12/19/17
Top Adjustment (Gull-Wing Style)
Part Number
PVG3G100C01
PVG3G200C01
PVG3G500C01
PVG3G101C01
PVG3G201C01
PVG3G501C01
PVG3G102C01
PVG3G202C01
PVG3G502C01
PVG3G103C01
PVG3G203C01
PVG3G503C01
PVG3G104C01
PVG3G204C01
PVG3G504C01
PVG3G105C01
PVG3G205C01
Power Rating
(W)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
Number of Turns
(Effective Rotation Angle)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
Mechanical Rotation
Angle
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
Total Resistance Value
10 ohm ± 20%
20 ohm ± 20%
50 ohm ± 20%
100 ohm ± 20%
200 ohm ± 20%
500 ohm ± 20%
1k ohm ± 20%
2k ohm ± 20%
5k ohm ± 20%
10k ohm ± 20%
20k ohm ± 20%
50k ohm ± 20%
100k ohm ± 20%
200k ohm ± 20%
500k ohm ± 20%
1M ohm ± 20%
2M ohm ± 20%
TCR
(ppm/°C)
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
Operating Temperature Range: -55 to +125 °C
Soldering Method: Reflow / Soldering Iron
Rear Adjustment (Reverse Gull-Wing Style)
Part Number
PVG3K100C01
PVG3K200C01
PVG3K500C01
PVG3K101C01
PVG3K201C01
PVG3K501C01
PVG3K102C01
PVG3K202C01
PVG3K502C01
PVG3K103C01
PVG3K203C01
PVG3K503C01
PVG3K104C01
PVG3K204C01
PVG3K504C01
PVG3K105C01
PVG3K205C01
Power Rating
(W)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
0.25 (70 °C)
Number of Turns
(Effective Rotation Angle)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
1 (210 ° ±10 °)
Mechanical Rotation
Angle
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
250 ± 10 °
Total Resistance Value
10 ohm ± 20%
20 ohm ± 20%
50 ohm ± 20%
100 ohm ± 20%
200 ohm ± 20%
500 ohm ± 20%
1k ohm ± 20%
2k ohm ± 20%
5k ohm ± 20%
10k ohm ± 20%
20k ohm ± 20%
50k ohm ± 20%
100k ohm ± 20%
200k ohm ± 20%
500k ohm ± 20%
1M ohm ± 20%
2M ohm ± 20%
TCR
(ppm/°C)
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
±150
Operating Temperature Range: -55 to +125 °C
Soldering Method: Reflow / Soldering Iron
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PVG3.pdf
12/19/17
Standard Land Patterns
PVG3A
1.4
(.055)
0.9
(.035)
1.4
(.055)
PVG3G
1.3
(.051)
1.5
(.059)
PVG3K
1.0
(.039)
2.1
(.083)
0.9
(.035)
1.3
(.051)
2.5
(.098)
3.1
(.122)
2.1
(.083)
2.5
(.098)
1.0
(.039)
3.1
(.122)
1.1
(.043)
1.2
(.047)
1.1
(.043)
1.1
(.043)
1.2
(.047)
1.1
(.043)
1.2
(.047)
TOLERANCES: ± 0.1
(.004)
EXCEPT WHERE NOTED
1.1
(.043)
1.2
(.047)
DIMENSIONS:
MM
(INCHES)
Characteristics
Temperature
Cycle
Humidity
Vibration (20G)
Shock (100G)
Temperature
Load Life
Low Temperature
Exposure
High Temperature
Exposure
Rotational Life
Part Numbering
ΔTR
: ±2%
ΔV.S.S.:
±1%
ΔTR
IR
: ±2%
: 10M ohm min.
Product ID
PV = Trimming Potentiometer
PV G3 A 103 C01 R00
Series
G3 = SMD Sealed 3 mm Square, Single-Turn
Pin Style
A = J-Hook
G = Gull-Wing
K = Reverse Gull-Wing
ΔTR
: ±1%
ΔV.S.S.:
±1%
ΔTR
: ±1%
ΔV.S.S.:
±1%
ΔTR
: ±3% or 3 ohm max., whichever is greater
ΔV.S.S.:
±1%
ΔTR
: ±2%
ΔV.S.S.:
±2%
ΔTR
: ±3%
ΔV.S.S.:
±2%
ΔTR
:
R≤100 kohm
±3% or 2 ohm max., whichever is greater
R>100 kohm
+0/-10% (50 cycles)
Total Resistance
Expressed by three figures.
The first and second figures are
significant digits; the third figure expresses
the number of zeros that follow.
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
2,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
ΔTR
: Total Resistance Change
ΔV.S.S.:
Voltage Setting Stability
IR
: Insulation Resistance
Popular distribution values listed in boldface.
Special resistances available.
Individual Specification
C01 = Standard Type
Packaging
R00 = Tape and Reel (1,000 pcs./7 ” reel)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
The linux kernel uses cfi to drive the nor flash. Can I directly hang the nor flash driver under mtd without using the cfi interface? Also, do I need to ioremap the address of the nor flash? Please gi...
THE PROJECT TO BE REPORTED is an outgrowth of theincreasing demand for fast, broadband (2:l or grcater) analogphase-shifters oC 2n angular range. In particular, 8-18CHzcoverage in a single unit has. a...
Asking my colleagues, where is the world's smallest computer hard drive produced? Some say it is in Guizhou, is that right? I searched on Baidu, but couldn't find it5555555...
Low-power Qorvo chips enhance connectivity and reliability for new Luna smart home systemImagine a smart home system with modern thermostats, smart radiator valves, temperature/door/window sensors and...
I would like to ask what are the control algorithms for developing an automatic tracking camera using DSP? Has anyone done it before or has any ideas? Please give me some advice! I would like to thank...
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
Is pure electric vehicles a false proposition for long-distance driving? At least from my personal perspective, based on current technological and infrastructure standards, I believe so. Below, I'l...[Details]
Topics: Bring Your Own Device (BYOD) trends; the impact of using employees' own mobile devices to control access to work facilities and equipment on information security; and ways to securely imple...[Details]
Definition of interactive projection system:
Interactive projection systems, also known as multimedia interactive projection, are available in floor, wall, and tabletop interactive projection....[Details]
Robotics
has become
LiDAR
's "second growth curve."
While LiDAR was still battling with its "pure vision" rivals in the automotive field, another field ignited the demand f...[Details]
On August 21, WeRide officially launched WePilot AiDrive, a one-stage end-to-end assisted driving solution developed in cooperation with Bosch. This comes only half a year after the two parties' "t...[Details]
On August 18th, Galaxis, a specialist in integrated intelligent intralogistics robotics, officially unveiled its next-generation, ultra-narrow aisle forklift mobile robot, the "VFR Ultra-Narrow Ser...[Details]
The all-new MG4 was recently officially announced on the Ministry of Industry and Information Technology's (MIIT) new vehicle announcement. The all-new MG4's semi-solid-state battery version addres...[Details]
A half-bridge is an inverter topology for converting DC to AC. A typical half-bridge circuit consists of two controller switches, a three-wire DC power supply, two feedback diodes, and two capacito...[Details]
Recently, Joyson Electronics has made positive progress in the core technology research and development of the robot's "brain and brain" and key components, and launched the industry's first integr...[Details]
On August 21st, BYD announced the launch of its next-generation "Little White Pile" product, the "Lingchong"
charging
pile
, which is now available for general sale. This charging pile feat...[Details]
The difference between a series inverter and a parallel inverter is that they use different oscillation circuits. A series inverter connects L, R, and C in series, while a parallel inverter connect...[Details]
introduction
The widespread use of air conditioner communication circuits began with the rise of household inverter air conditioners. With China's energy conservation and emission reduction in...[Details]
As the core of electric vehicles, batteries are concerned with vehicle use and maintenance. The operation of vehicles is guaranteed by the electricity generated by batteries. For batteries, battery...[Details]
The power transmission system between a car's engine and drive wheels is called its drivetrain. It ensures the necessary traction and speed under various driving conditions, and coordinates these t...[Details]
