IR above +125°C is derated by one order of magnitude.
ENVIRONMENTAL TESTS
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
ATC 100 B Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC ap-
plied while subjected to an environment of 85°C with 85% relative
humidity for
240 hours min.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
(No capacitance variation with voltage or pressure).
PIEZOELECTRIC EFFECTS:
None
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
0.1 to 330 pF: from -55°C to +175°C
360 to 1000 pF: from -55°C to +125°C
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage Applied:
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips and pellets with-
stand a pull of 5 lbs. min., 15 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test per MIL-
STD-202, method 211.
ATC # 001-807 Rev. R; 2/17
ATC 100 B Capacitance Values
CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC CAP. CAP.
RATED WVDC
TOL.
TOL.
TOL.
TOL.
CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT. CODE (pF)
STD.
EXT.
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
VOLT
B
EXTENDED VOLTAGE
B, C
500
1500
EXTENDED VOLTAGE
1500
EXTENDED VOLTAGE
EXTENDED
B, C,
D
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
2.4
2.7
3.0
3.3
3.6
3.9 B, C,
D
4.3
4.7
5.1
5.6
6.2
500
6.8
7.5 B, C, J,
8.2 K, M
9.1
10
11
12
13 F, G, J,
K, M
15
16
18
121
131
1000
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
NOTE: EXTENDED WVDC DOES NOT APPLY TO CDR PRODUCTS.
ATC PART NUMBER CODE
ATC100 B 91 0 J W 500 X
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
T
Packaging
T - Tape and Reel, 1000 pc. qty.*
TV - Vertical Orientation of Product,
Tape and Reel, 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
ATC Cap-Pac
®
packaging (100 pc. qty. std.) is also
available.
For this option, leave last field blank.
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
M
Laser Marking
WVDC
Termination Code
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
The above part number refers to a 100 B Series (case size B) 91 pF capacitor,
J tolerance (±5%), 500 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Tape and Reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
2
w w w.a t c e r am ic s .c o m
EXT
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
20
22
24
27
30
33
36
39
43
500
47
51
F, G, J,
56
K, M
62
68
75
82
91
100
110
300
120
130
EXTENDED VOLTAGE
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
VOLTAGE
150
160
180
200
220
240
270
300
330
360
390
F, G, J,
430
K, M
470
510
560
620
680
750
820
910
1000
300
1000
EXT
100
VOLT
50
300
EXT
1500
200
600
VOLT

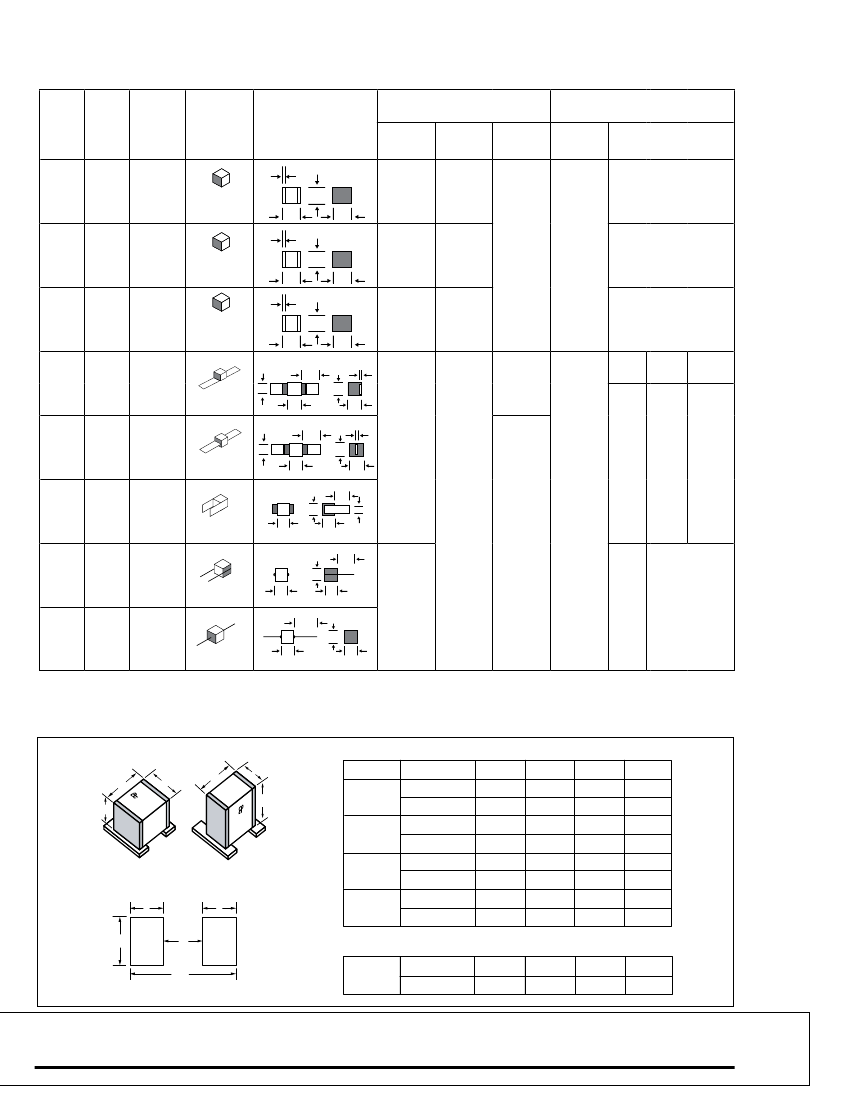

ATC 100 B Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
MIL-PRF-
55681
CASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
Y
100B
W
CDR14BG
B
Solder Plate.1
Y
W
L
T
.110
+.020 -.010 110 ±.015
(2.79 +0.51 (2.79 ±0.38)
-0.25)
.110
+.035 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.89 -0.25)
.110
+.020 -.010 .110 ±.015
(2.79 +0.51 (2.79 ±0.38)
-0.25)
.110 ±.0. 15
020 -.010 .110 ±.015
(2.79
(2.79 ±0.38)
+0.51 -0.25)
TL
TIn / Lead, Solder Plated over
Nickel Barrier Termination10
100B
P
CDR14BG
B
W
Pellet
Y
L
T
Heavy Tin /Lead Coated,
over
Nickel Barrier Termination
.102 (2.59) .015 (0.38)
max.
±.010 (0.25)
100B
T
N/A
B
Solderable
Nickel Barrier
Y
W
L
T
Tin Plated over
Nickel Barrier Termination
RoHS Compliant
100B
CA
CDR13BG
B
Gold Chip
B
W
LL
TL
L
WL
W
L
T
T
Gold Plated over
Nickel Barrier Termination
Length
( LL )
Width Thickness
( WL )
( TL )
RoHS Compliant
100B
MS
CDR21BG
Microstrip
B
LL
WL
W
L
T
.120 (3.05)
max.
100B
AR
CDR22BG
Axial Ribbon
B
LL
WL
TL
W
L
T
.135 ±.015
(3.43 ±0.38)
.250
(6.35)
min.
.110 ±.015
(2.79 ±0.38)
.102 (2.59)
max.
N/A
.093
±.005
(2.36
±0.13)
.004
±.001
(.102
±.025)
100B
RR
CDR24BG
Radial Ribbon
L
WL
LL
W
L
LL
TL
WL
W
T
T
100B
RW
CDR23BG
LL
B
Radial Wire
B
T
L
L
LL
W
T
WL
W
LL
.145 ±.020
(3.68 ±0.51)
•
T
.500
(12.7)in.
min.
#26 AWG.,
.016 (.406) dia.
nominal
100B
AW
CDR25BG
Axial Wire
W
L
• •
L
LL
T
W
Additional lead styles available: Narrow Microstrip (NM), Narrow Axial Ribbon (NA) and Vertical Narrow Microstrip (H). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
RoHS
compliant. For a complete military catalog, request American Technical Ceramics
document ATC 001-818.
••
LL
W
•
L
T
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
3
w w w.a t c e r am ic s .c o m
ATC 100 B Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
MIL-PRF-
55681
CASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
W
L
Y
W
L
Y
LL
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
TIn /Lead, Solder Plated
over
Non-Magnetic Barrier
Termination
Heavy Tin /Lead Coated,
over
Non-Magnetic Barrier
Termination
Tin Plated over
Non-Magnetic
Nickel Barrier Termination
100B
WN
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
Meets
Require-
ments
B
Non-Mag
Solder Plate
B
Non-Mag
Pellet
B
Non-Mag
Solderable
Barrier
B
T
.110
+.025 -.010 110 ±.015
(2.79 +0.64 (2.79 ±0.38)
-0.25)
.110
+.035 -.010 110 ±.015 .102 (2.59) .015 (0.38)
(2.79 +0.89 (2.79 ±0.38)
max
±.010 (0.25)
-0.25)
.110
+.025 -.010 110 ±.015
(2.79 +0.64 (2.79 ±0.38)
-0.25
TL
100B
PN
T
RoHS Compliant
100B
TN
W
W
T
TL
L
WL
L
T
100B
MN
LL
Non-Mag
Microstrip
B
WL
W
L
T
TL
LL
.120 (3.05)
max.
Length
( LL )
Width Thickness
( WL )
( TL )
100B
AN
Non-Mag
Axial Ribbon
B
WL
W
L
T
.135 ±.015
(3.43
±0.38)
.110 ±.015
(2.79
±0.38)
.250
(6.35)
min
N/A
.102 (2.59)
max.
.500
(12.7)
in.
min.
.093
±.005
(2.36
±0.13)
.004
±.001
(.102
±.025)
LL
100B
FN
W
WL
Non-Mag
Radial Ribbon
B
Non-Mag
Radial Wire
B
Non-Mag
Axial Wire
L
LL
WL
T
TL
W
L
T
LL
100B
RN
T
L
L
LL
W
T
W
WL
LL
.145 ±.020
(3.68
±0.51)
•
T
#26 AWG.,
.016 (.406) dia.
nominal
100B
BN
W
L
• •
L
LL
T
W
Additional lead styles available: Narrow Microstrip (DN), Narrow Axial Ribbon (GN) and Vertical Narrow Microstrip (HN). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
1. Introduction
Since the 1980s, with the continuous development of automotive electronic technology, there are more and more electronic control units in automobiles, such as electronic fuel i...[Details]
1 Introduction
Building Automation System (BAS) is a distributed monitoring system (DCS) designed according to distributed information and control theory. It is the result of the mutual de...[Details]
1 Introduction
With the development of control, computer, communication, network technology, etc., a new control technology, namely fieldbus, has emerged in the field of industrial control...[Details]
0 Introduction
There are many types of sensors, and the working principles, measurement targets and measurement environments of different types of sensors vary greatly. The corresponding detection s...[Details]
The demand for improved healthcare environments is endless, so medical imaging equipment with higher resolution is needed to better observe the human body. High resolution brings problems with sign...[Details]
Battery clamps, commonly known as battery connectors, come in two sizes depending on the thickness of the battery terminals. One is the battery clamp used on thick terminals, with a positive termin...[Details]
Electrostatic coupling and interference occur when a charged object is close to the input of the circuit being measured. At low impedance, the effects of interference are not noticeable because th...[Details]
In recent years, with the increasing maturity of LED technology, LED light sources have been increasingly widely used due to their advantages of using low-voltage power supply, low energy consumpti...[Details]
1. Project Introduction
Beijing Benz-Daimler Chrysler Co., Ltd. is a joint venture between Beijing BAIC Group and Benz-Daimler Chrysler. In October 2005, it started to build a new automobile ...[Details]
Today's automotive application developers face numerous design challenges as modern cars add more electronic functionality, while the need for lower power consumption and smaller printed circuit bo...[Details]
(1) Open circuit voltage of the battery
(2) Internal resistance of the battery
(3) Battery operating voltage
(4) Charging voltage
Charging voltage refers to the voltage applied ...[Details]
Li/SOCl2 batteries (lithium sub-cells) have the advantages of high operating voltage, stable discharge voltage, wide operating temperature range and long storage life, and have been widely used in ...[Details]
Abstract: A motion estimation design for video images is implemented using a powerful FPGA. The search method used is a three-step search method. When designing the scheme, this paper uses the rela...[Details]
Background
The proliferation of ultra-low-power wireless sensor nodes for measurement and control purposes, combined with new energy harvesting techniques, has made it possible to create ful...[Details]
1. Introduction
The human balance ability is the basis for people to carry out various sports. People need balance ability to stand, sit, lie down, and walk. Once a person's balance ability is...[Details]
/201805121509408_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/201805121509408_pdf/1.png)
/201805121509408_pdf/2.png)
/201805121509408_pdf/3.png)
/201805121509408_pdf/4.png)
/201805121509408_pdf/5.png)
/201805121509408_pdf/pg_0002.png)
/201805121509408_pdf/pg_0003.png)
/201805121509408_pdf/pg_0004.png)
/201805121509408_pdf/pg_0005.png)
