Chip NTC Thermistor
ABNTC-0805
FEATURES:
• Large B constant for high temperature sensing capability
• Designed for high density
• Available in standard EIA compatible case size
• Internal electrode designed for enhanced reliability
• Excellent aging stability
RoHS/RoHS II Compliant
2.0 x 1.25 x 0.85 mm
.
APPLICATIONS:
• For temperature measurement or sensor: Digital thermometer,
measuring instruments, temperature controller
• For temperature compensation: transistor circuit, TCXO, Crystal
Oscillator
• LED lighting driver, Notebook, Cell Phone, Power Supplies, Disk Drive
STANDARD SPECIFICATIONS:
Operating Temperature:
-55˚C ~+125˚C
Storage Temperature:
-10˚C ~ +40˚C and RH 75% (Max.)
Part Number
Resistance at 25
o
C
R25
(kΩ)
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.0
2.2
3.3
4.7
5.0
6.8
10
10
15
22
33
47
50
68
100
150
220
330
470
680
1300
B constant
(25-50
o
C)
(K)
3380
3380
3450
3450
3450
3450
3450
3950
3950
3950
3950
3950
3950
3950
3450
3950
3500
4050
4050
4150
4150
4150
4250
4300
4350
4400
4500
4500
4700
Max. Permissive
Operating
Current
(25
o
C)
(mA)
4.0
3.5
3.0
2.5
2.0
1.7
1.4
1.2
1.0
0.90
0.72
0.65
0.60
0.50
0.40
0.44
0.32
0.31
0.24
0.20
0.18
0.16
0.14
0.11
0.08
0.06
0.05
0.04
0.03
<5sec
2.0
200
Thermal Time
Dissipation
Rated Electric
Constant
Factor
(mW/
o
C) Power
(mW)
ABNTC-0805-101Δ-3380
□
ABNTC-0805-151Δ-3380
□
ABNTC-0805-221Δ-3450
□
ABNTC-0805-331Δ-3450
□
ABNTC-0805-471Δ-3450
□
ABNTC-0805-681Δ-3450
□
ABNTC-0805-102Δ-3450
□
ABNTC-0805-152Δ-3950
□
ABNTC-0805-202Δ-3950
□
ABNTC-0805-222Δ-3950
□
ABNTC-0805-332Δ-3950
□
ABNTC-0805-472Δ-3950
□
ABNTC-0805-502Δ-3950
□
ABNTC-0805-682Δ-3950
□
ABNTC-0805-103Δ-3450
□
ABNTC-0805-103Δ-3950
□
ABNTC-0805-153Δ-3500
□
ABNTC-0805-223Δ-4050
□
ABNTC-0805-333Δ-4050
□
ABNTC-0805-473Δ-4150
□
ABNTC-0805-503Δ-4150
□
ABNTC-0805-683Δ-4150
□
ABNTC-0805-104Δ-4250
□
ABNTC-0805-154Δ-4300
□
ABNTC-0805-224Δ-4350
□
ABNTC-0805-334Δ-4400
□
ABNTC-0805-474Δ-4500
□
ABNTC-0805-684Δ-4500
□
ABNTC-0805-135Δ-4700
□
Δ:
Please specify the tolerance code of R25
(F=±1%, H=±3%,
J=±5%, K=±10%).
□
: Please specify the tolerance code of B value
(F=±1%, H=±3%).
Test Conditions
Unless otherwise specified, the standard atmospheric conditions for
measurement/test as:
a. Ambient Temperature: 20±15
o
C
b. Relative Humidity: 65±20%
c. Air Pressure: 86 kPa to 106 kPa
30332 Esperanza, Rancho Santa Margarita, California 92688
Visit
www.abracon.com
for Terms & Conditions of Sale
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 12.02.12
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Chip NTC Thermistor
ABNTC-0805
ELECTRICAL CHARACTERISTICS CURVES
RoHS/RoHS II Compliant
2.0 x 1.25 x 0.85 mm
.
OPTIONS AND PART IDENTIFICATION:
ABNTC-0805-
-
-T
R25 Code
Please refer to the
table above
R 25 Tolerance
F=±1%
H=±3%
J=±5%
K=±10%
B Constant
Please refer to the
table above
B Tolerance
F=±1%
H=±3%
T: Tape and Reel
(4kpcs
/ reel)
Packaging

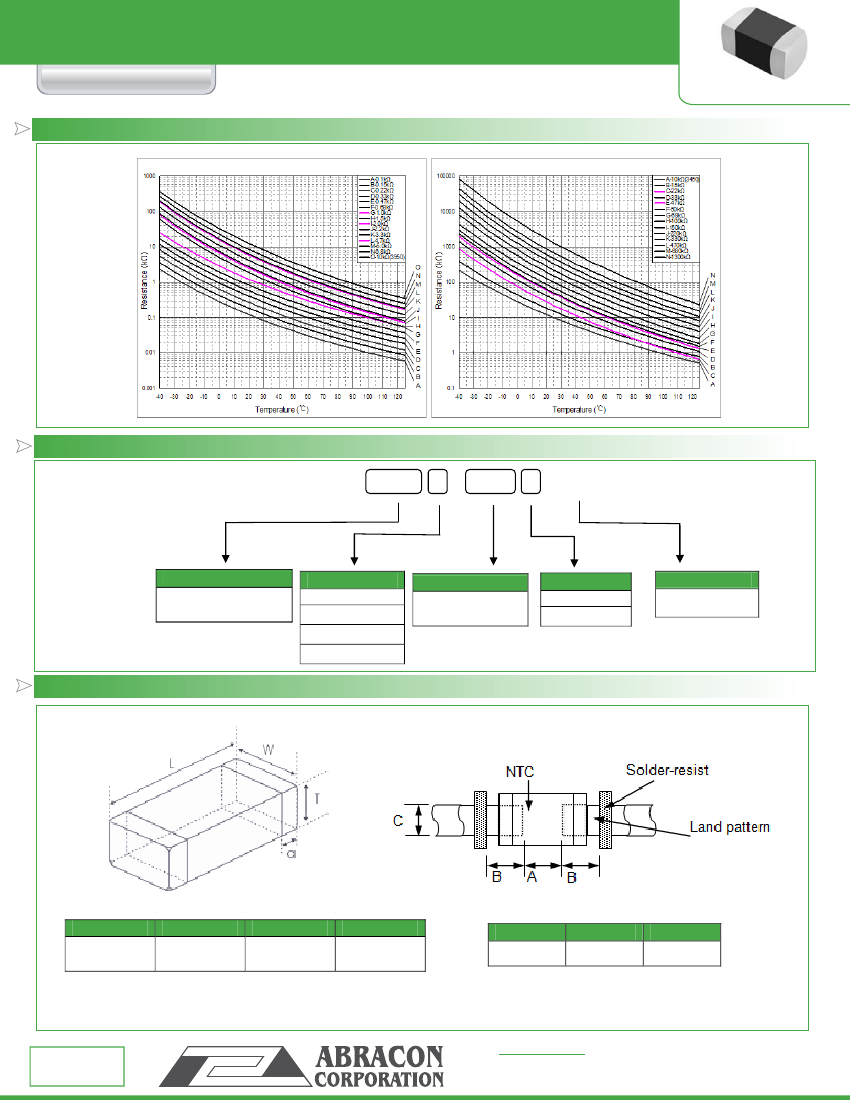

OUTLINE DIMENSION:
Recommended Land Pattern
L
2.0±0.2
W
1.25±0.2
T
0.85±0.2
a
0.5±0.3
A
0.80~1.20
B
0.80~1.20
C
0.90~1.60
Dimension: mm
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Visit
www.abracon.com
for Terms & Conditions of Sale
30332 Esperanza, Rancho Santa Margarita, California 92688
Revised: 12.02.12
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Chip NTC Thermistor
ABNTC-0805

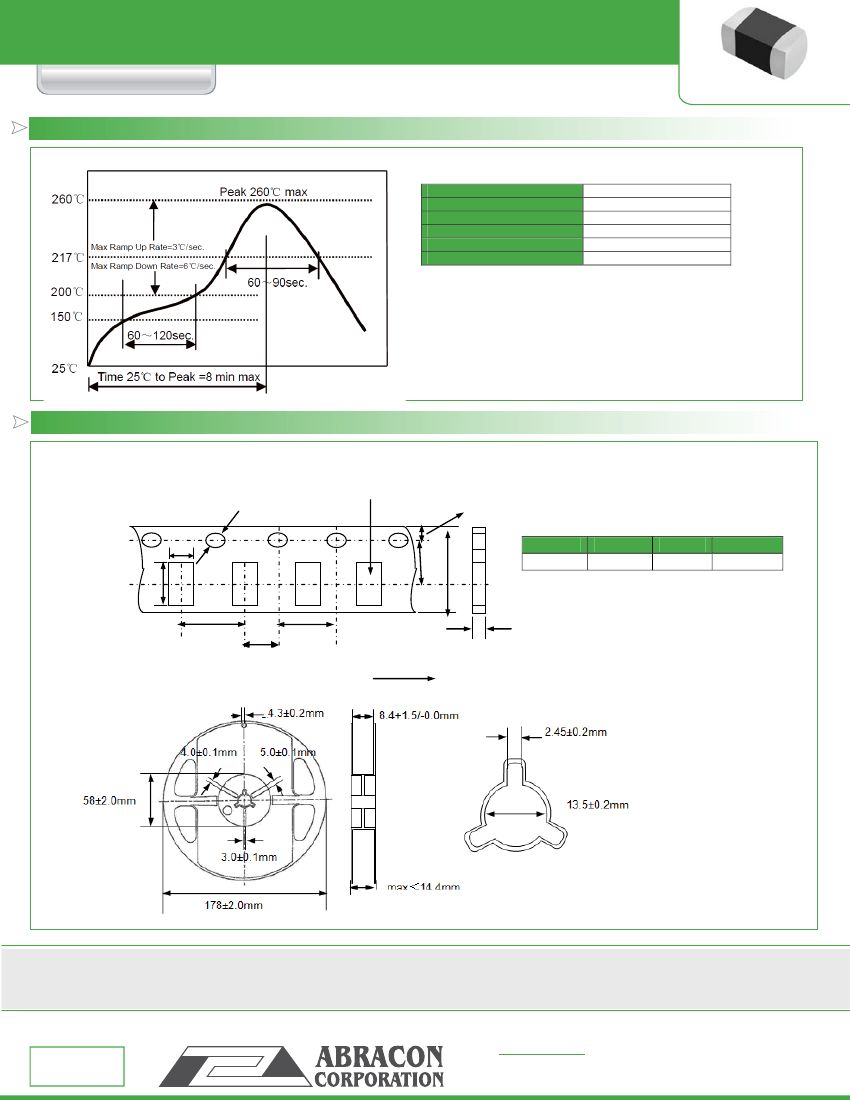

REFLOW PROFILE:
Preheat Condition
Allowed time above 217
˚C
Max temperature
Max time at max temperature
Solder paste
Allowed Reflow time
150 to 200
˚C;
60 to 120 sec.
60 to 90 sec.
260
˚C
10 sec.
Sn/3.0Ag/0.5Cu
2x max.
RoHS/RoHS II Compliant
2.0 x 1.25 x 0.85 mm
.
TAPE & REEL:
Packing
T: 4,000pcs / reel
Sprocket
Hole Φ1.5 (+0.1,0)
Chip Cavity
1.75±0.1
A
B
A
1.5±0.2
B
2.3±0.2
P
4.0±0.1
T (max)
1.1
3.5 ± 0.05
T
8.0 ± 0.3
P
2.0± 0.05
4.0 ± 0.1
Direction of Feed
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace,
Life-dependant
Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
