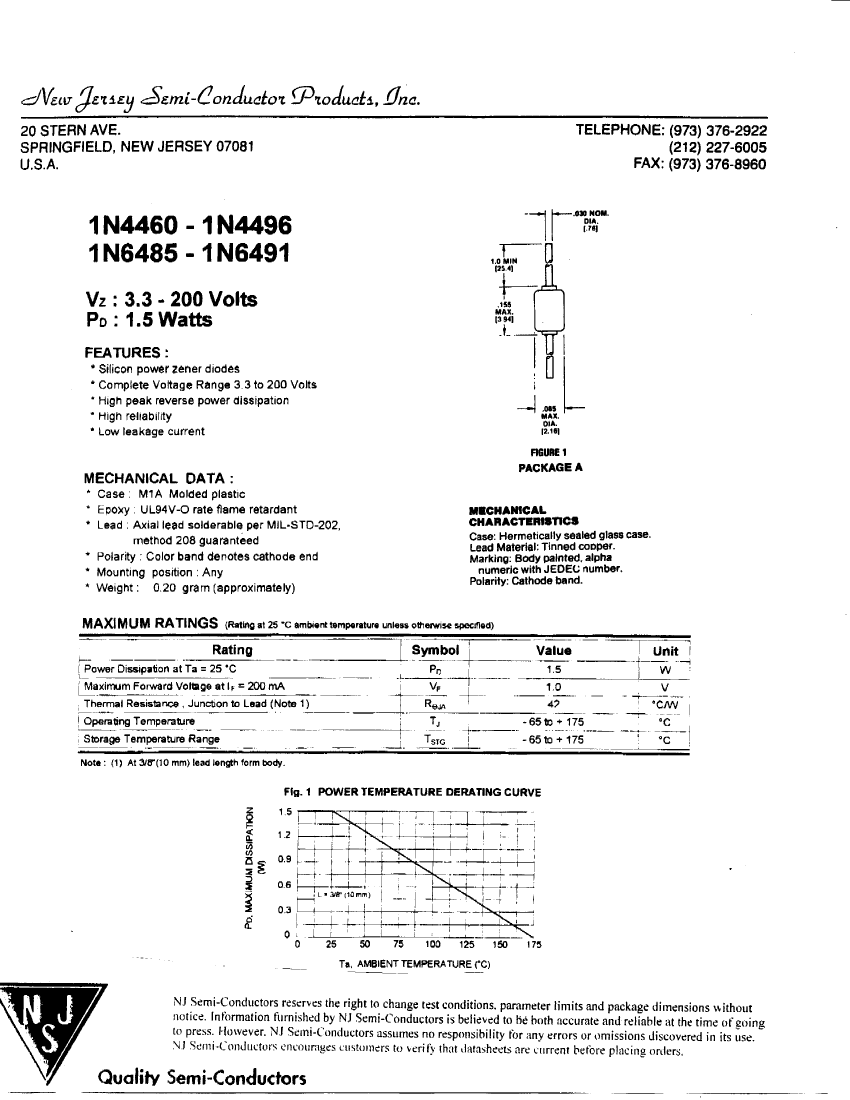

1N4460 -1N4496
1N6485 - 1N6491
Vz : 3.3 - 200 Volts
Po: 1.5 Watts
FEATURES:
*
*
*
*
*
Silicon power zener diodes
Complete Voltage Range 3 3 to 200 Volts
High peak reverse power dissipation
High reliability
Low leakage current
FIGURE 1
PACKAGE A
MECHANICAL DATA :
* Case : MIA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight: 0.20 gram (approximately)
(MECHANICAL
CHARACTERISTICS
Case: Hermetically sealed glass case.
Lead Material: Tinned cooper.
Marking: Body painted, alpha
numeric with JEDEC number.
Polarity: Cathode band.
MAXIMUM RATINGS (Rating at 25 -C ambient tomparature unless otherwise specified)
Rating
1 Power Dissipation at Ta = 25 'C
j Maximum Forward Voltage at l
f
= 200 mA
Thermal Resistance , Junction to Load (Note 1)
| Operating Temperature
Storage Temperature Range
Note: (1) At 3/8"(10 mm) lead length form body.
Symbol
P-,
H-
Value
1.5
1.0
4?
[
^
'
unit I
W ~~!
V
"C/W
,
R*J*
L
TSTG
Vf
-65to + 175
-65 to + 175
°C
°C
'
Fig. 1 POWER TEMPERATURE DERATING CURVE
1,5
1.2
25
50
75
100
125
150
175
Ta, AMBIENT
TEMPERATURE CO
NJ Semi-Concluctors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However. NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verily that datasheets are current before placing orders.
