86083-3096 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 86083-3096

86083-3096: DescriptionFiber Optic Connector, 9/125um, Multi Mode, Simplex; CategoryThe connector; File Size152KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

86083-3096 Overview

Fiber Optic Connector, 9/125um, Multi Mode, Simplex

86083-3096 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	9/125um
IEC compliance	NO
Insertion loss	0.75 dB
MIL compliance	NO
Manufacturer's serial number	86083
model	MULTI
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

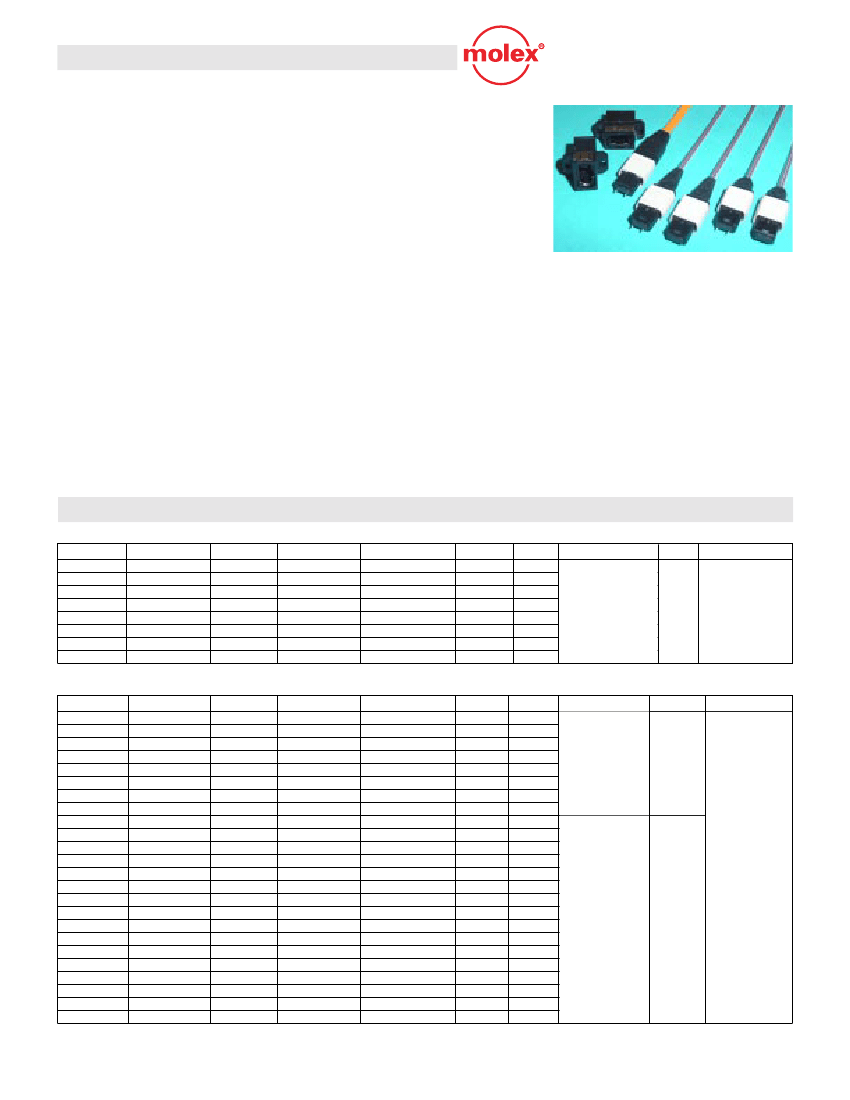

FEATURES AND SPECIFICATIONS

Features and Benefits

■

Precision alignment pins improve insertion loss

performance

■

Fanouts to simplex fiber connectors require no splicing

resulting in cost reduction

■

MTP to HBMT and BMTP cable assemblies provide a

transition from the board to the backplane

■

Color coded housings ensure singlemode and multimode

assemblies are easily distinguished

■

Push-pull mating of MTP* for quick connections

■

Variety of MTP adapters facilitate multiple mounting

options for flexible board and panel layouts

*MTP is a registered trademark of US Conec Ltd.

Applications

■

Dense interconnect for datacommunication and

telecommunication systems

■

Chassis-to-chassis connections

■

Miniature interconnenction for optoelectronic modules

Reference Information

Connector Body Material: Polymer

Housing: UL V-0

MTP/MPO sold as terminations only

MTP*/MPO

Connectors and Adapters

MTP/MPO connectorized ribbon fiber cable assemblies provide

reliable high performance interconnects of up to 24 fibers in a

small footprint. The MTP/MPO connectors utilize the precision

molded NTT compatible ferrule which connects four to 24

fibers using bare ribbon or ruggedized ribbon cable.

Alignment between mating ferrules is accomplished using two

precision guide pins that are pre-installed into the designated

male connector.

MTP/MPO assemblies utilize a push-pull connector housing

for a quick and reliable connection. For optical device

interconnections, MTP/MPO assemblies interface on the

daughter card to Molex’s HBMT and BMTP adapters on the

backplane.

Multiple transitions between ribbon cable to individual fibers

are available to meet a variety of fiber routing requirements.

Fanouts to single fiber leads connectorized with Molex

industry standard LC, MU, FC, SC and ST connectors are

available to interconnect with the current installed base of

transmitters, receivers and patch panels.

A singlemode low loss version of the MTP/MPO connector is

achieved by using more precise MT 8-fiber ferrules and guide

pins. The superior precision of the singlemode low loss MT

ferrule yields comparable insertion loss values of the single

fiber ceramic ferrules.

MTP/MPO connectors meet IEC 1754-7 and TIA/EIA 604-5

standards.

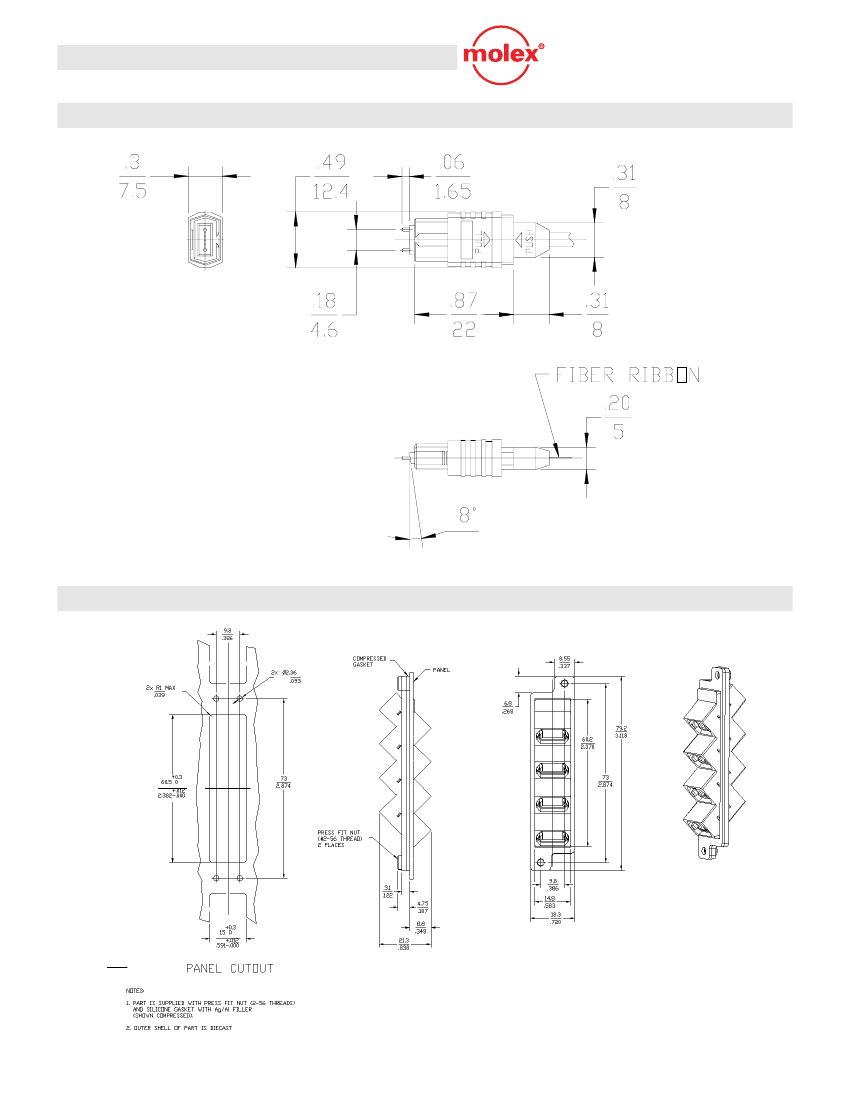

Mating of the MTP/MPO connectors can be achieved by using

a variety of MTP/MPO adapters. For applications where EMI is

a concern, Molex has developed a series of shuttered die cast

adapters that are designed to shield and isolate EMI

emissions.

ORDERING INFORMATION

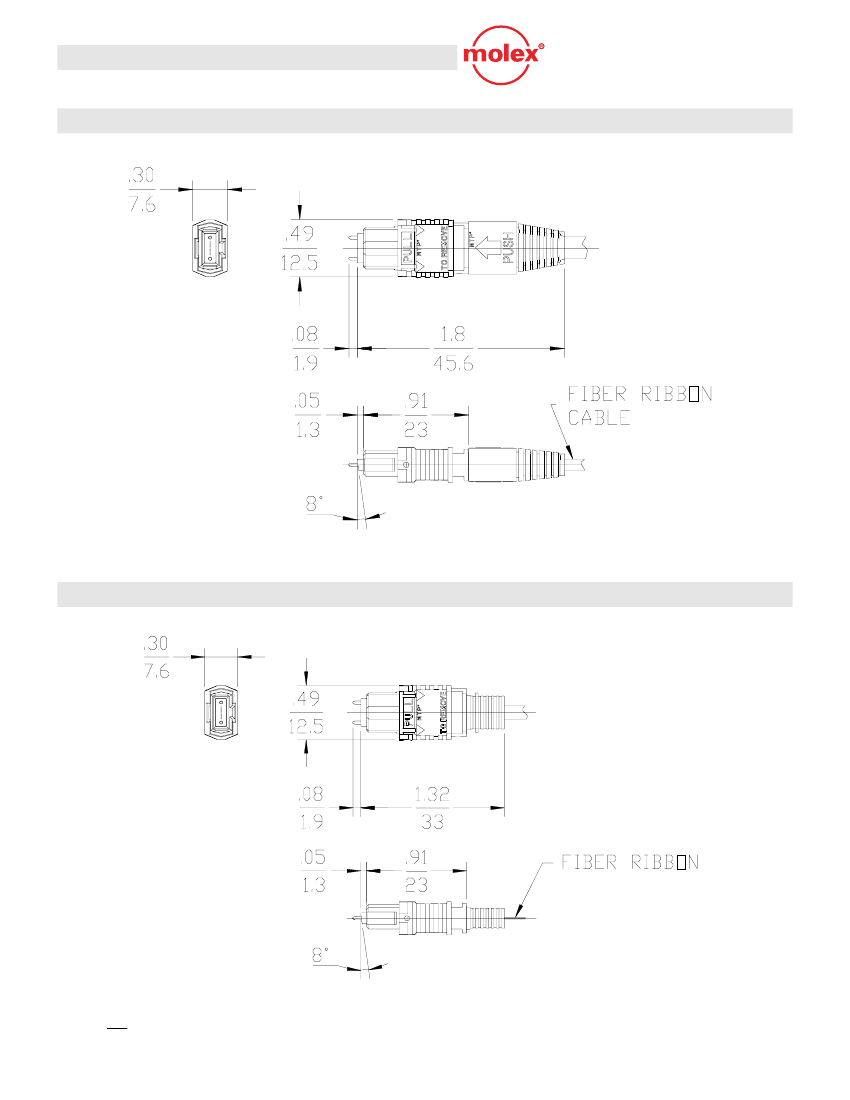

MTP Connectors

Part No.

86081-3030

86081-3020

86081-5020

86081-6020

86082-3030

86082-3020

86082-5020

86082-6020

Body

Male, Black

Male, Beige

Male, Green

Male, Yellow

Female, Black

Female, Beige

Female, Green

Female, Yellow

Mode

Multimode

Singlemode

Multimode

Singlemode

Insertion Loss At Test

.5dB

.75dB

.5dB

.75dB

.5dB

Ferrule Hole Size

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

Ferrule Port

4, 8,12 or 24

APC

Cable Type

Bare Ribbon / Jacketed

Boot

Black

Mates With

MTP/BMTP Adapters

MTP / BMTP Adapters

MTP/BMTP Adapters

Yes

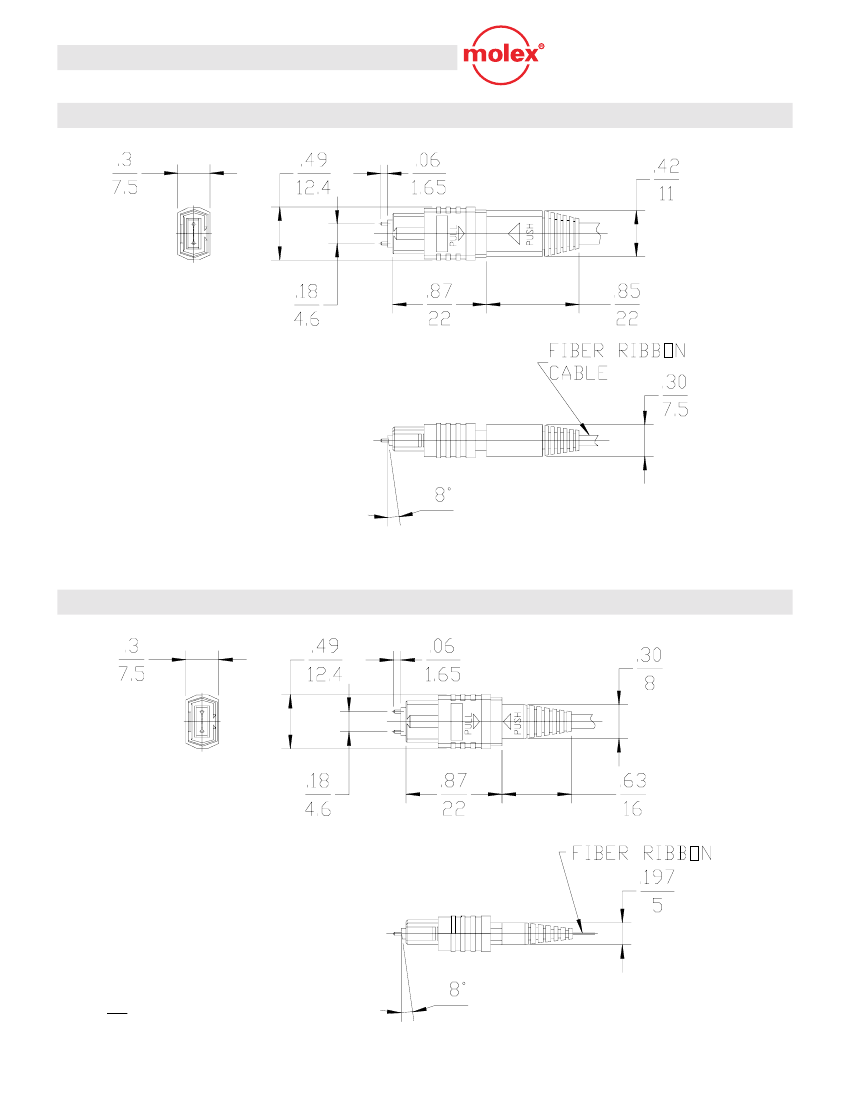

MPO Connectors

Part No.

86083-3093

86083-3090

86083-5090

86083-6094

86084-3093

86084-3090

86084-5090

86084-6094

86083-3095

86083-3092

86083-3096

86083-6099

86084-3095

86084-3092

86084-5096

86084-6099

86083-3094

86083-3091

86083-5002

86083-6098

86084-3094

86084-3091

86084-5097

86084-6098

Body

Male, Black

Male, Beige

Male, Green

Male, Yellow

Female, Black

Female, Beige

Female, Green

Female, Yellow

Male, Black

Male, Beige

Male, Green

Male, Yellow

Female, Black

Female, Beige

Female, Green

Female, Yellow

Male, Black

Male, Beige

Male, Green

Male, Yellow

Female, Black

Female, Beige

Female, Green

Female, Yellow

Mode

Multimode

Singlemode

Multimode

Singlemode

Multimode

Singlemode

Multimode

Singlemode

Insertion Loss At Test

.5dB

.75dB

.5dB

.75dB

.5dB

.75dB

.5dB

.75dB

.5dB

.75dB

.5dB

.75dB

.5dB

Ferrule Hole Size

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

50/125lm

62.5/125lm

9/125lm

Ferrule Port

4, 8,12 or 24

APC

Cable Type

Jacketed

Bare

Boot

Standard, Black

Long, Black

Short, Black

Mates With

MTP/BMTP Adapters

MTP / BMTP Adapters

MTP/BMTP Adapters

Yes

Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.

MOLEX FIBER OPTICS DIVISION

5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber
