Datasheet> All Categories > Passive components> inductor> DLH-31-0008

DLH-31-0008: DescriptionFixed Inductors DLH Linear choke 6.3A; CategoryPassive components inductor; File Size302KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DLH-31-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DLH-31-0008	-	-	View	Buy Now

DLH-31-0008 Overview

Fixed Inductors DLH Linear choke 6.3A

DLH-31-0008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
structure	Rectangular
DC Resistance	0.023 Ω
Nominal inductance(L)	50 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead length	3.5 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	33 mm
Package length	31.5 mm
Package form	PCB Mount
Package width	18.5 mm
Maximum rated current	6.3 A
self resonant frequency	9.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

Suppression Chokes

https://www.schurter.com /PG81_82

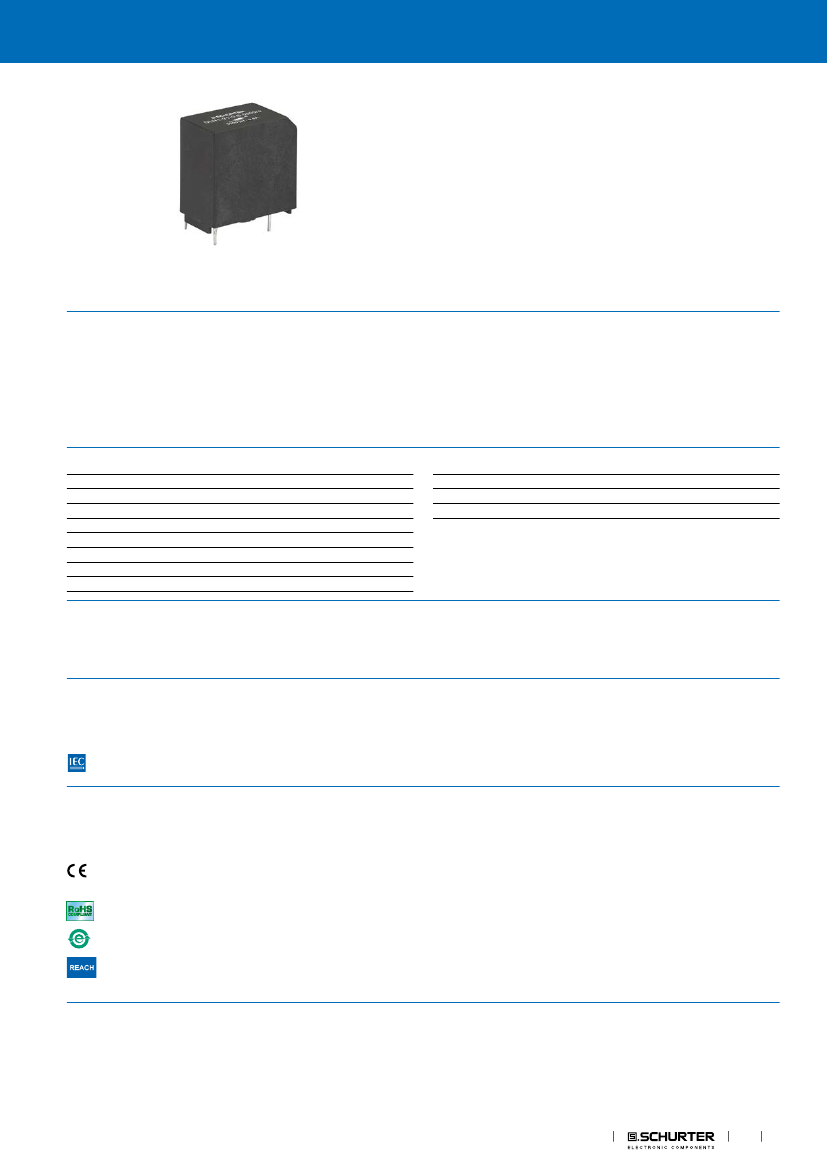

DLH

Linear Choke, high design

Approvals and Compliances

Description

- Linear choke

- THT-terminals

- Inductor vertically positioned in housing

Applications

Smoothing RFI suppression choke

RFI suppression choke

Chopper amplifiers

DC drives and stepper motor controls

Switching power supplies

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 600 VDC

0.45 - 7 A @ Ta 70 °C

0.02 - 5.5 mH, Tol. ±15%

up to 20 kHz

THT

4 - 38 g

UL 94V-0

Isolation Voltage

Climatic Category

Allowable Operation Temp.

2 kV eff., winding to ambient

40/125/21 acc. to IEC 60068-1

-40 °C to 125 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

Compliances

The product complies with following Guide Lines

Identification

Details

CE declaration of conformity

Initiator

SCHURTER AG

Description

The CE marking declares that the product complies with the applicable

requirements laid down in the harmonisation of Community legislation on

its affixing in accordance with EU Regulation 765/2008.

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

RoHS

China RoHS

REACH

SCHURTER AG

EMC Products

DLH-31-0008 Related Products

	DLH-31-0008	DLH-22-0006	DLH-14-0003	DLO1-24-0004	DLO1-24-0006	DLO1-24-0002	DLH-22-0008	DLH-22-0001	DLH-31-0001	DLH-14-0002
Description	Fixed Inductors DLH Linear choke 6.3A	Fixed Inductors DLH LINEAR CHOKE 3A	Fixed Inductors LINEAR	Fixed Inductors DLO Saturation choke 1.8A	Fixed Inductors DLO Saturation choke 1A	Fixed Inductors DLO Saturation choke 4.5A	Fixed Inductors LINEAR	Fixed Inductors LINEAR	Fixed Inductors LINEAR	Fixed Inductors LINEAR
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular	Toroidal	Toroidal	Toroidal	Rectangular	Rectangular	Rectangular	Rectangular
DC Resistance	0.023 Ω	0.07 Ω	0.05 Ω	0.178 Ω	0.6 Ω	0.026 Ω	0.012 Ω	2.6 Ω	3.6 Ω	0.22 Ω
Nominal inductance(L)	50 µH	100 µH	50 µH	300 µH	1000 µH	50 µH	20 µH	5000 µH	5500 µH	200 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead length	3.5 mm	3.5 mm	3.5 mm	15 mm	15 mm	15 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Number of functions	2	2	2	1	1	1	2	2	2	2
Number of terminals	4	4	4	2	2	2	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package length	31.5 mm	23 mm	15 mm	10 mm	10 mm	10 mm	23 mm	23 mm	31.5 mm	15 mm
Package form	PCB Mount	Radial	Radial	Radial	Radial	Radial	Radial	Radial	PCB Mount	Radial
Maximum rated current	6.3 A	3 A	2 A	1.8 A	1 A	4.5 A	7 A	0.45 A	0.6 A	1 A
self resonant frequency	9.5 MHz	4 MHz	9 MHz	2 MHz	0.8 MHz	8.4 MHz	15 MHz	0.2 MHz	0.2 MHz	6 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	RADIAL	RADIAL	RADIAL	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Tolerance	15%	15%	15%	15%	15%	15%	15%	15%	15%	15%
Factory Lead Time	16 weeks	8 weeks	16 weeks	16 weeks	16 weeks	16 weeks	-	8 weeks	16 weeks	8 weeks
Package height	33 mm	24 mm	13.5 mm	-	-	-	24 mm	24 mm	33 mm	13.5 mm
Package width	18.5 mm	13 mm	10.5 mm	-	-	-	13 mm	13 mm	18.5 mm	10.5 mm
