GT02-111-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> GT02-111-006

GT02-111-006: DescriptionPULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S); CategoryPower management transformer; File Size166KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GT02-111-006 Overview

PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)

GT02-111-006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
application	GATE DRIVE
ET product minimum value	6.9 V-us
high	3 mm
Insulation voltage	1500 V
length	6.8 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	REEL
physical size	L6.8XB8.6XH3.0 (mm)
Primary inductance	135 µH
surface mount	YES
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1:1
width	8.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ICE Components, Inc.

Voice: 800.729.2099

Fax: 678.560.9304

cust.serv@icecomp.com

www.icecomponents.com

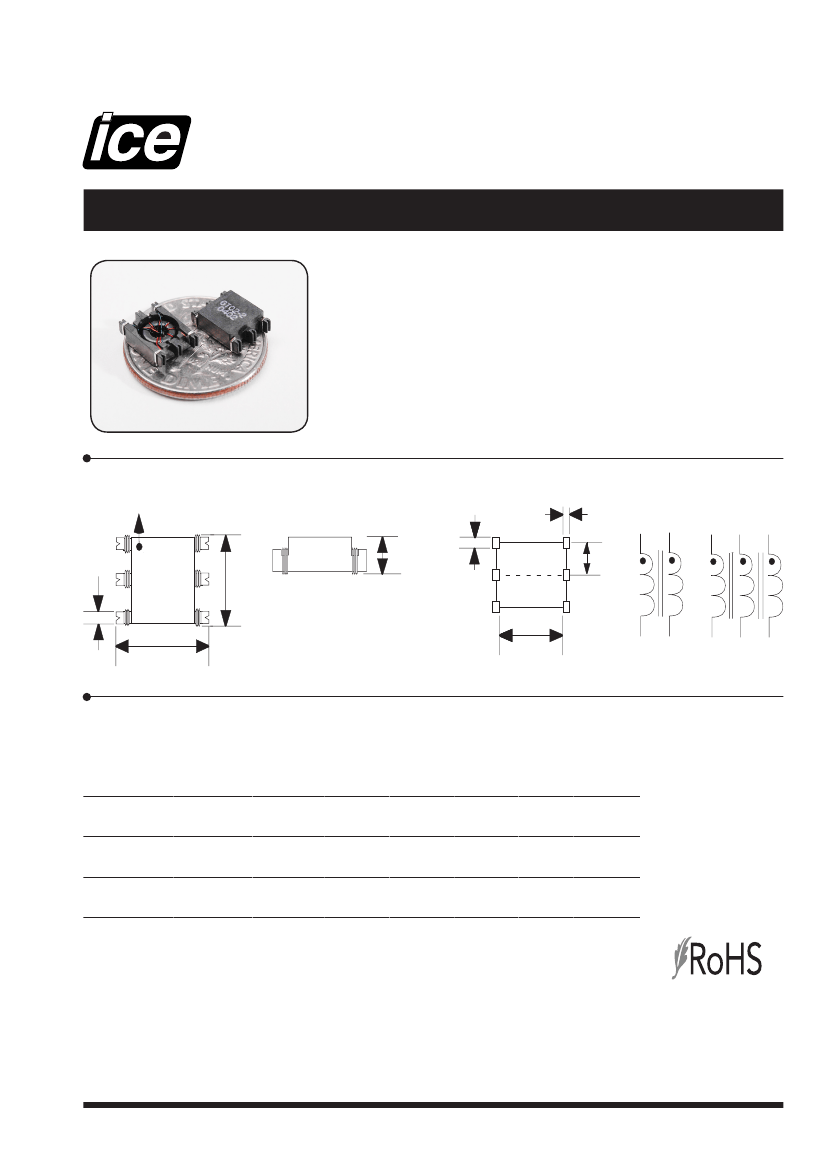

Gate Drive Transformer

Features

• Low Profile - 3mm

• Designed for Frequencies from

75 kHz to over 1 MHz

• Suiteable for Pick and Place

applications

GTO2 Series

Applications

• Gate Drive Transformer

• AC/DC and DC/DC

Converters

• Pulse/Signal Transformers

Packaging:

Reel diameter: 13”, Reel width: 16 mm, Pieces/reel: 1500

Mechanical

Dot for

pin 1

XXX-XXX

YYWW

6.8

5 max

8.6 max

Recommended PCB Layout

1.27

3.0 max

1.52

5.71

2.54

(X4)

Schematic

0.76

Top View

units: mm

Electrical Specifications

Part

Number

GT02-110-006

GT02-110-010

GT02-110-019

GT02-120-006

GT02-120-014

GT02-111-006

GT02-122-006

GT02-122-008

Turns Ratio Inductance

N1:N2:N3

(µH, min.)

DCR

(mΩ, max.)

Lkg. Ind.

(µH, max.)

E-T Prod

(V-µs)

Hi-Pot

(Vdc)

Schematic

1:1

1:2.5

1:1:1

1:2.5:2.5

1:2:2

135

290.4

785

21.6

86.4

135

21.6

48.6

225:225

320:320

600:520

110:320

190:410

230:230

110:230

160:260

0.2

0.36

0.1

0.15

0.1

0.15

6.9

10.2

19.4

6.9

13.8

6.9

8.3

1500

Tested at 100kHz,

0.1Vrms.

2. Electrical specifications at

25ºC.

Operating range: -40 ºC

to +130 ºC.

Meets UL 94V-0.

E-T product rating is for

secondary (gate) wind-

ings and is based upon

a flux density of 2200

Gaussat 25 ºC in a bipo-

lar drive application.

Specifications subject to change without notice.

(05/07) GT02-1

GT02-111-006 Related Products

	GT02-111-006	GT02-110-010	GT02-110-006	GTO2	GT02-122-006	GT02-120-006	GT02-122-008	GT02-120-014
Description	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)
application	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	130 °C	130 °C	130 °C	130 Cel	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Primary inductance	135 µH	290.4 µH	135 µH	785 mH	21.6 µH	21.6 µH	48.6 µH	86.4 µH
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	unknow	-	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	-	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
ET product minimum value	6.9 V-us	10.2 V-us	6.9 V-us	-	6.9 V-us	6.9 V-us	8.3 V-us	13.8 V-us
high	3 mm	3 mm	3 mm	-	3 mm	3 mm	3 mm	3 mm
Insulation voltage	1500 V	1500 V	1500 V	-	1500 V	1500 V	1500 V	1500 V
length	6.8 mm	6.8 mm	6.8 mm	-	6.8 mm	6.8 mm	6.8 mm	6.8 mm
method of packing	REEL	REEL	REEL	-	REEL	REEL	REEL	REEL
physical size	L6.8XB8.6XH3.0 (mm)	L6.8XB8.6XH3.0 (mm)	L6.8XB8.6XH3.0 (mm)	-	L6.8XB8.6XH3.0 (mm)	L6.8XB8.6XH3.0 (mm)	L6.8XB8.6XH3.0 (mm)	L6.8XB8.6XH3.0 (mm)
surface mount	YES	YES	YES	-	YES	YES	YES	YES
Turns ratio (Np:Ns)	1:1:1	1:1	1:1	-	1:2.5:2.5	1:2.5	1:2:2	1:2.5
width	8.6 mm	8.6 mm	8.6 mm	-	8.6 mm	8.6 mm	8.6 mm	8.6 mm
Base Number Matches	1	1	1	-	1	1	1	1
