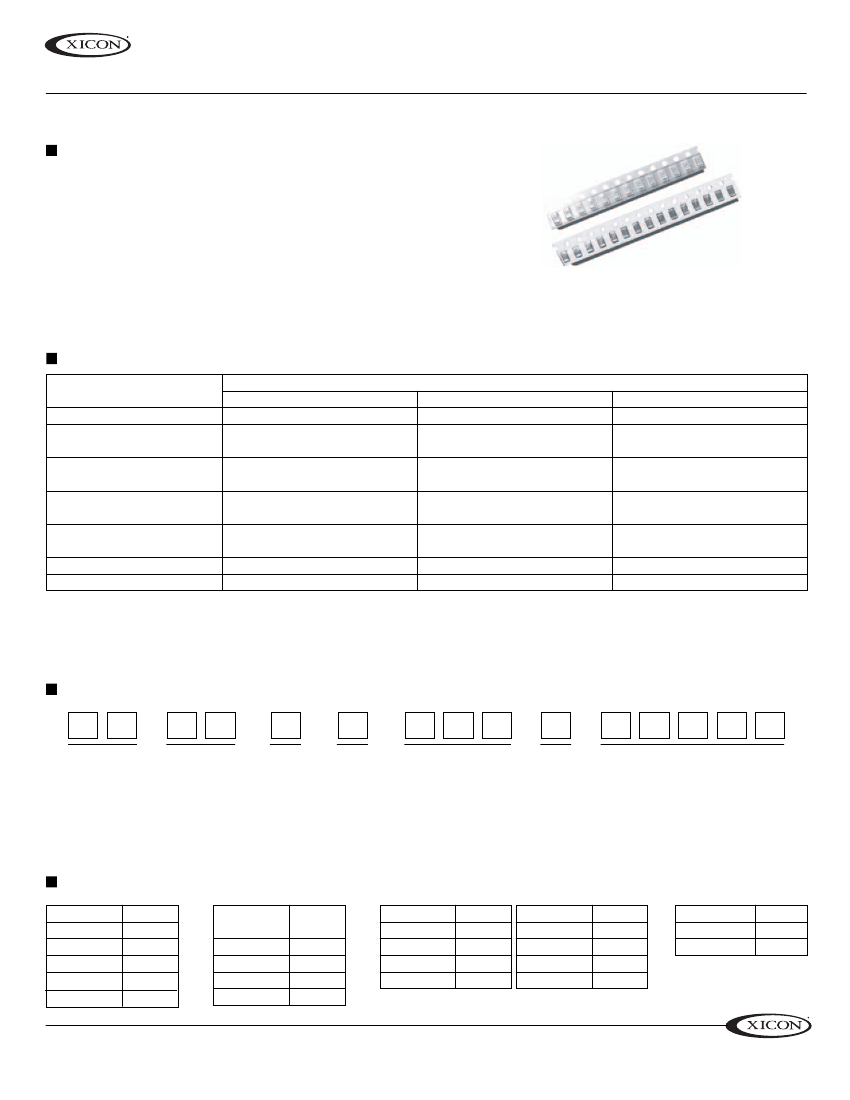

Ceramic Chip Capacitors
FEATURES
• High reliability
• Small size with high dielectric constant
• Low inductance
• Popular temperature coefficients available
• Wide operating temperature range
• High insulation resistance
• Case sizes: 0402, 0603, 0805, 1206, 1210
CC Series
CHARACTERISTICS
Item
Operating Temperature Range
Temperature Coefficient
Measuring Conditions for
Capacitance and D.F.
Dissipation Factor and Tangent
of Loss Angle (Tan
δ)
Insulation Resis. After 60 sec.
Charging at Rated Voltage 25°C
Voltage Test 25°C
Capacitance Aging
NPO / COG
-55°C ~ +125°C
±30ppm/°C for C>20pF
+120ppm, -40ppm/°C for C≤20pF
1MHz, 1Vrms for C≤1,000pF
1KHz, 1Vrms for C>1,000pF
≥0.001
for C≥50pF
≤1.5(150/C
+ 7) x 10
-2
for C<50pF
≥100GΩ
or
≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
0
Characteristics
X7R
-55°C ~ +125°C
∆C
±15% maximum
over -55°C +125°C
1KHz, 1Vrms
≤0.025
≥100GΩ
or
≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
=1.5% per decade hour
Z5U
-25°C ~ +85°C
∆C
±56%-22% maximum
over +10°C +85°C
1KHz, 0.3Vrms
≤0.030
≥10GΩ
or
≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
=5% per decade hour
PART NUMBERING SYSTEM
C
C
5
0
2
Case
Size
N
Temperature
Coefficient
1
0
Value
1
J
Tolerance
/
R
E
Suffix
E
L
Series
Voltage
CODES FOR CASE SIZE, TEMPERATURE COEFFICIENT, AND TOLERANCE
Case Size
0805
1206
1210
0603
0402
Code
1
2
3
4
5
Temperature
Coefficient
NPO / COG
X7R
Z5U
Y5V
Code
N
B
Z
V
Tolerance
±0.25pF
±0.5pF
±5%
±10%
Code
C
D
J
K
Tolerance
±20%
+80% -20%
+100% -0%
GMV
Code
M
Z
P
V
Suffix
Tape and Reel
Bulk
Code
/REEL
-BK
For capacitance values below 10pF, use C or D.
GMV = Guaranteed Minimum Value
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600090
Page 1 of 2
Date Revised: 12/27/05
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Ceramic Chip Capacitors
CAPACITANCE RANGES
Case Size
0402
0603
0805
1206
1210
NPO / COG
50V
1.0pF~220pF
1.0pF~470pF
1.0pF~1500pF
1.0pF~3900pF
4700pF~8200pF
100V
50V
220pF~1000pF
100pF~0.01µF
100pF~0.1µF
100pF~0.1µF
0.12µF~0.22µF
X7R
100V
CC Series
1.0pF~1000pF
1.0pF~2700pF
3300pF~5600pF
100pF~.022µF
100pF~.047µF
.047µF~0.1µF
Z5U (0805, 1206, 1210) / Y5V (0603)
50V
100V
---
0.01µF~0.1µF
---
2700pF~0.15µF
---
8200pF~0.47µF
0.22µF~0.68µF
---
---
TOLERANCE AVAILABLE
Availability
Tolerance
Capacitance
±0.25pF
<5pF
NPO / COG
±0.5pF
±2%
≤10pF
>13pF
±5%
≥10pF
±5%
All Values
X7R
±10%
All Values
±20%
All Values
±20%
All Values
Z5U
+80% -20% +100% -0%
All Values
All Values

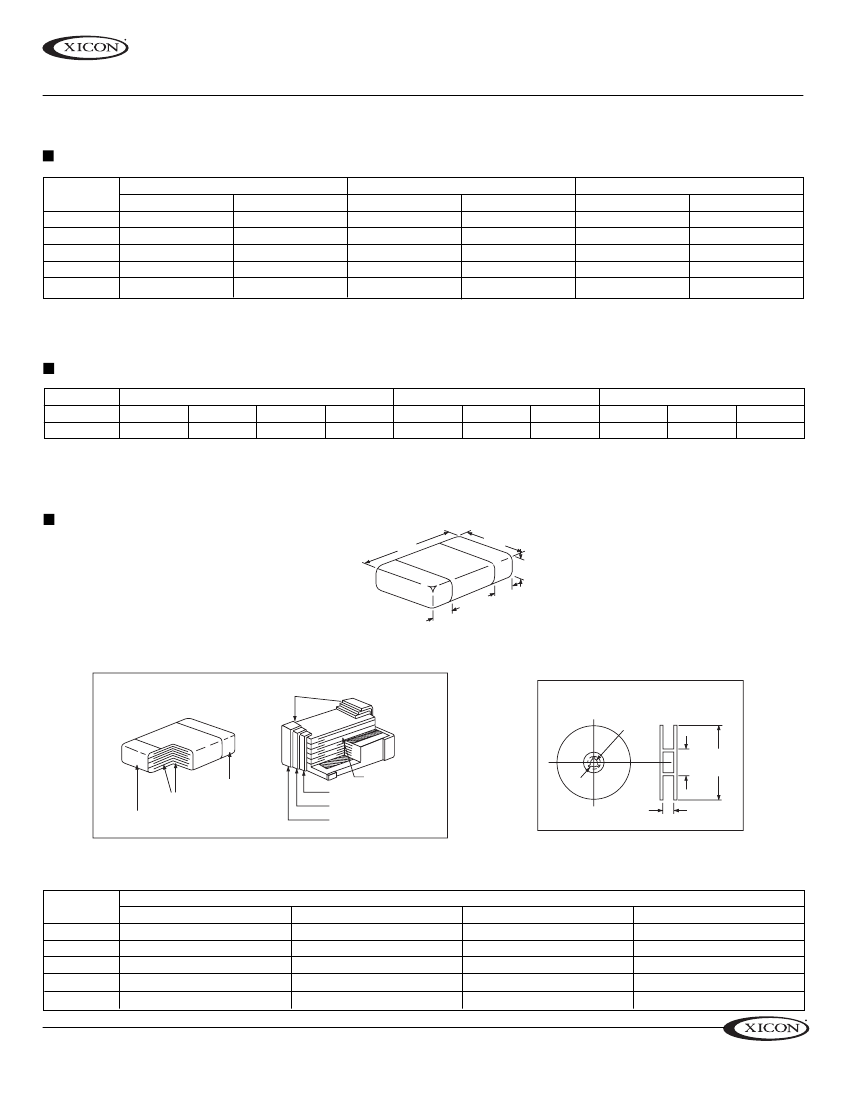

DIMENSIONS
L
W
T
E
E
Configuration:
Terminations (nickel barrier)
Reel Dimensions (mm):
Reel Quantity: 4,000 per Reel
ø13 0.5
50
min.
178
2.0
Termination
Electrodes
Termination
Electrodes
Silver metalization
Nickel barrier layer
Solder plated layer
10 1
Case Size
0402
0603
0805
1206
1210
L (length)
1.0 ±0.2
1.52 ±0.2
2.0 ±0.2
3.2 ±0.2
3.2 ±0.2
W (width)
0.5 ±0.2
0.8 ±0.2
1.2 ±0.2
1.6 ±0.2
2.5 ±0.2
Dimensions (mm)
T (thickness) max.
.35
.65
1.0
1.25
1.3
E (termination)
0.5 ±0.2
0.5 ±0.2
0.5 ±0.2
0.5 ±0.2
0.5 ±0.2
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600090
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Page 2 of 2
Date Revised: 12/27/05
