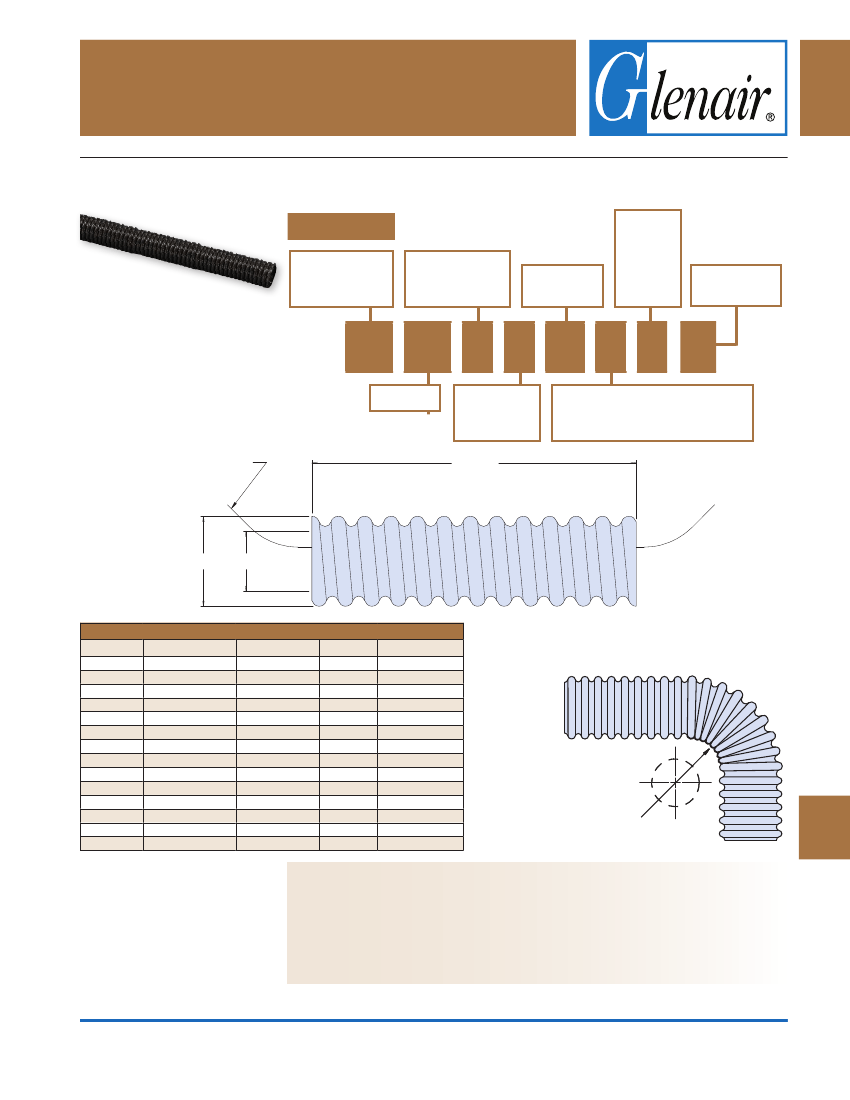

120-100
Helical Polymer-Core Convoluted Tubing
In Accordance With SAE AMS-81914
Outstanding mechanical wire protection and lubricity for non-environmental and
non-EMI/RFI applications
How To Order
Product Series
120
- Convoluted
Tubing
Class:
1
- Standard Wall
2
- Thin Wall
Tubing Size
(Table I)
Material
K
- PEEK
E
- ETFE
F
- FEP
P
- PFA
T
- PTFE
L
- Lanyard
Omit
for none
120
-
100
-
1
-
1
-
16
Basic No.
Convolution
1
- Standard
2
- Close
LENGTH
(AS SPECIFIED IN P.O.)
B
K
L
B
- Black
C
- Clear
Color
O
- Orange
Y
- Yellow
BL
- Blue
LANYARD
B
A
Table I: Tubing Size Order Number and Dimensions
Tubing Size Fractional Size Ref A Inside Dia Min
06
3/16
.181 (4.6)
09
9/32
.273 (6.9)
10
5/16
.306 (7.8)
12
3/8
.359 (9.1)
14
7/16
.427 (10.8)
16
1/2
.480 (12.2)
20
5/8
.603 (15.3)
24
3/4
.725 (18.4)
28
7/8
.860 (21.8)
32
1
.970 (24.6)
40
1 1/4
1.205 (30.6)
48
1 1/2
1.437 (36.5)
56
1 3/4
1.688 (42.9)
64
2
1.937 (49.2)
B Dia Max Min Bend Radius
.320 (8.1)
.50 (12.7)
.414 (10.5)
.75 (19.1)
.450 (11.4)
.75 (19.1)
.510 (13.0)
.88 (22.4)
.571 (14.5)
1.00 (25.4)
.650 (16.5)
1.25 (31.8)
.770 (19.6)
1.50 (38.1)
.930 (23.6)
1.75 (44.5)
1.073 (27.3)
1.88 (47.8)
1.226 (31.1)
2.25 (57.2)
1.539 (39.1)
2.75 (69.9)
1.832 (46.5)
3.25 (82.6)
2.156 (54.8)
3.63 (92.2)
2.332 (59.2)
4.25 (108.0)
MINIMUM
BEND RADIUS
Packaging
• Long-length orders of 120-100 conduit are subject to carrier weight and box size
restrictions. For example, UPS air shipments are currently limited to 50 lbs. per box.
Unless otherwise specified, Glenair standard practice is to ship optimal lengths of product
based on weight, size, and individual carrier specifications.
• Consult factory for thin-wall, close convolution combination and for PEEK
TM
and PTFE min/
max dimensions.
© 2012 Glenair, Inc.
Fiber Optic
U.S. CAGE Code 06324
Rev. 03.31.16
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-7
E-Mail: sales@glenair.com
Fiber Optic Cables
and Conduit
