2926360 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2926360

2926360: DescriptionD-Sub Cables CABLE-D- 9SUB/M/ OE/0,25/S/0,5M; CategoryThe connector The connector; File Size54KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

2926360 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2926360	-	-	View	Buy Now

2926360 Overview

D-Sub Cables CABLE-D- 9SUB/M/ OE/0,25/S/0,5M

2926360 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

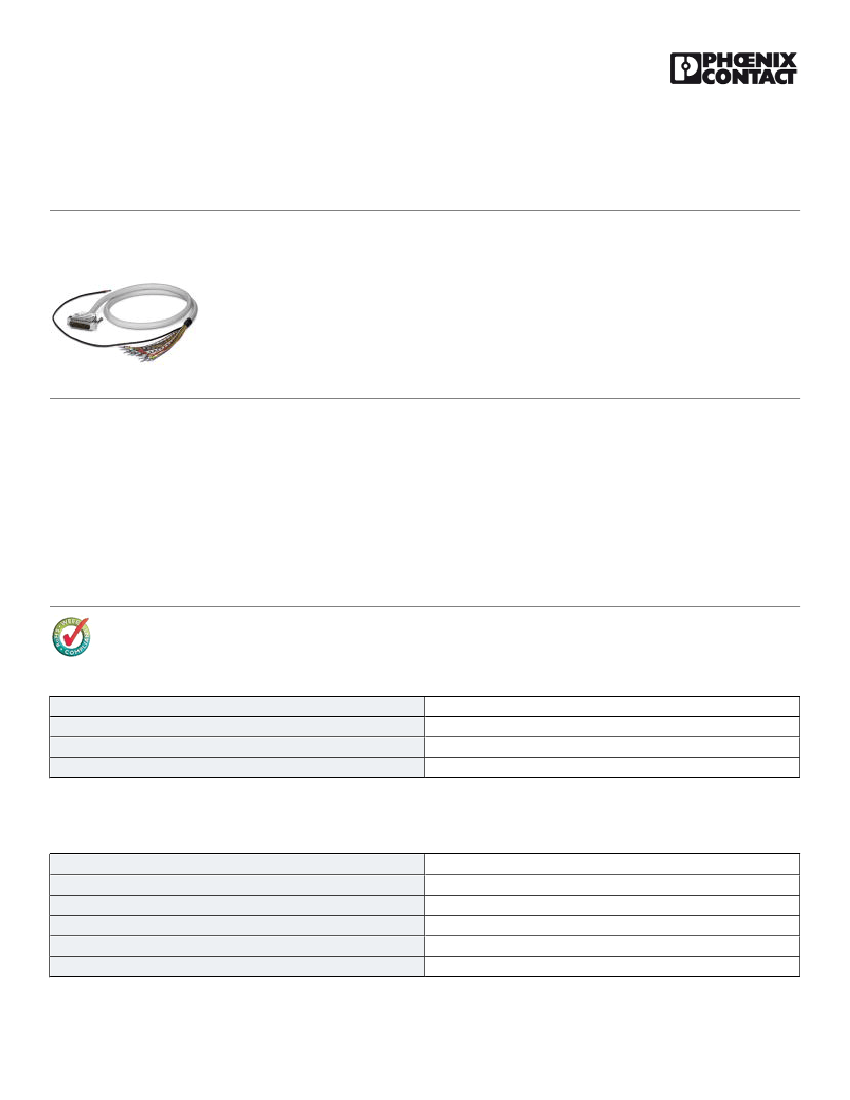

https://www.phoenixcontact.com/us/products/2926360

Cable - CABLE-D- 9SUB/M/OE/0,25/S/0,5M - 2926360

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Shielded cable with a 9-pos. D-SUB pin strip and one open end. The individual wires are labeled 1 to 9 and fitted

with ferrules. The braided shield is routed to a separate cable end. Cable length: 0.5 m.

The figure shows the 25-pos. version

Product Features

■

Individual wire marking: 1, 2, 3, 4, etc.

Individual wires fitted with ferrules

Connector according to IEC 60807-2/DIN 41652

D-SUB socket or pin strip at one end

Open end at one end

Screw connection: 2 UNC 4-40 screws

1:1 connection

Shield connection: H05V-K 1 mm² cable, black, 0.5 m in length

Key Commercial Data

Packing unit

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

60.0 g

85444290

Germany

Technical data

General

Nominal voltage U

Max. current carrying capacity per path

Max. conductor resistance

Length of cable

Single wire, cross section

Single wire, cross section [AWG]

125 V AC/DC

≤ 0.09 Ω/m

0.5 m

0.25 mm²

04/22/2016 Page 1 / 4
