Optional Parts
PB PMA Series Attachment
BASE Attachment
Plate model
Applicable models
F-PBA10-1
F-PBA15-1
F-PBA30-1
F-PBA50-1
F-PBA75-1
F-PBA100-1
F-PBA150-1
PBA10F
PBA15F, PBW15F
PBA30F, PBW30F, PMA15F
PBA50F, PBW50F, PMA30F
PBA75F, PMA60F
PBA100F
PBA150F, PMA100F
Example

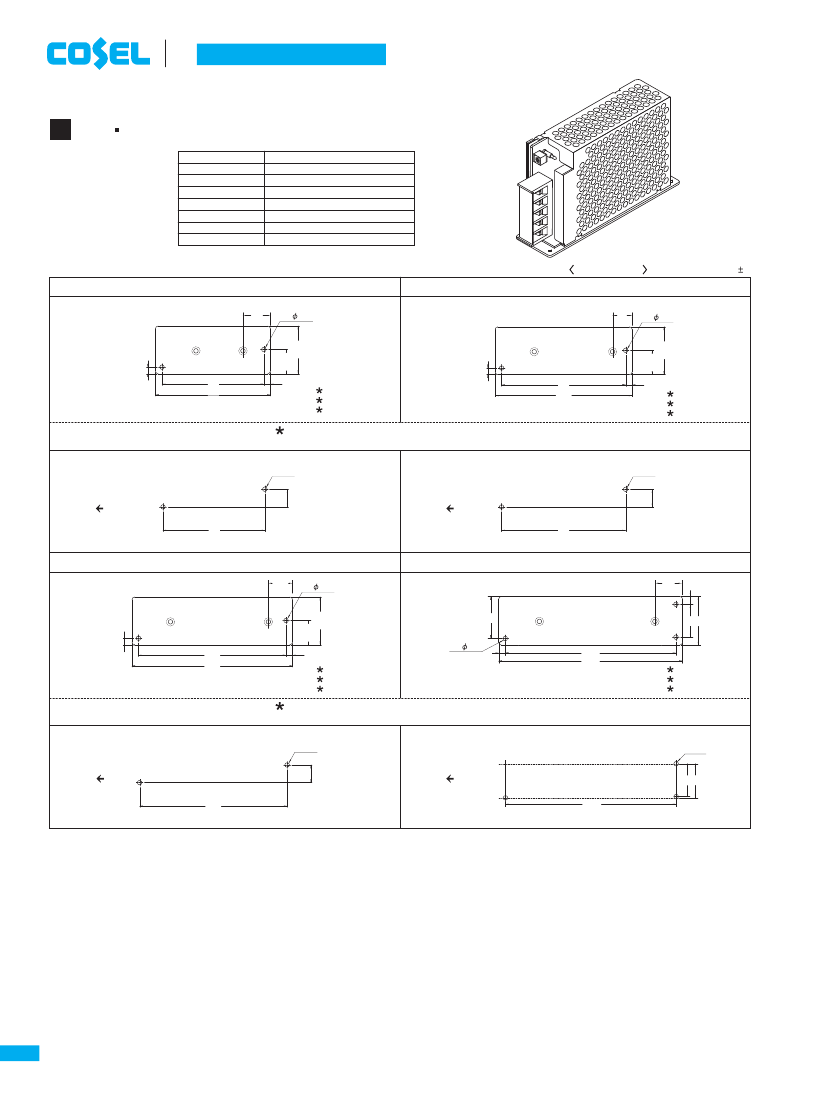

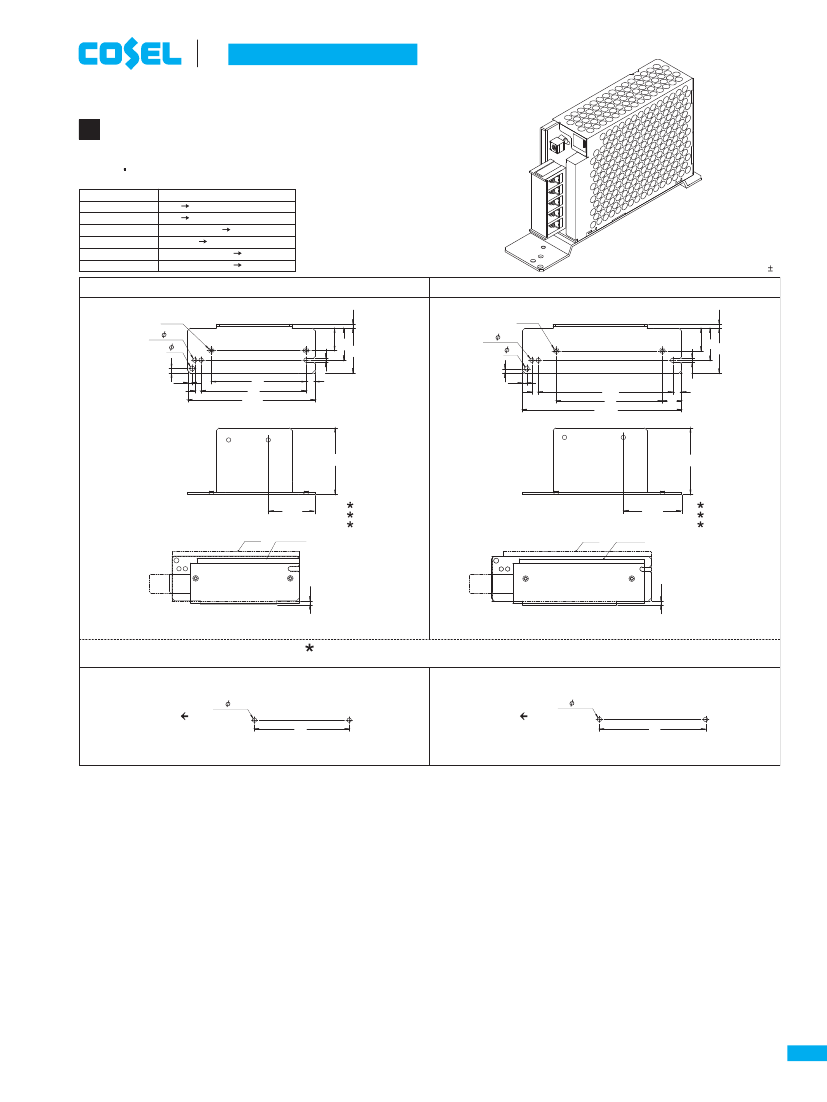

TOP VIEW
(Unit : mm) (Tolerance : 1)
F-PBA10-1
Size
21
2 - 3.5
F-PBA15-1
Size
15
2 - 3.5
18.5
36.5
5
78
88
5
Material : SECC
Thickness : 2.0
Weight : 60g max
5
95
105
5
Material : SECC
Thickness : 2.0
Weight : 70g max
M3 Flat screw is requested when mounting.
Please check the instruction manual for the size of screw.
Mounting hole size
2-M3
Mounting hole size
2-M3
FRONT
78
FRONT
95
F-PBA30-1
Size
18.5
2 - 3.5
F-PBA50-1
Size
32
21
13.5
13.5
18.5
36.5
130
140
Material : SECC
Thickness : 2.0
Weight : 95g max
18.5
36.5
5
113
123
5
Material : SECC
Thickness : 2.0
Weight : 85g max
3 - 3.5
5
M3 Flat screw is requested when mounting.
Please check the instruction manual for the size of screw.
Mounting hole size
2-M3
Mounting hole size
3-M3
113
130
Option
Option-4
25
26
FRONT
13.5
FRONT
25
37
6
Optional Parts
TOP VIEW
(Unit : mm) (Tolerance : 1)
F-PBA75-1
Size
32
19
F-PBA100-1
Size
32
25
6
25
37
3 - 3.5
5
145
155
Material : SECC
Thickness : 2.0
Weight : 110g max
3 - 3.5
5
157
167
Material : SECC
Thickness : 2.0
Weight : 110g max
M3 Flat screw is requested when mounting.
Please check the instruction manual for the size of screw.
Mounting hole size
3-M3
Mounting hole size
3-M3
25
26
FRONT
145
FRONT
157
F-PBA150-1
Size
32
19
3 - 3.5
5
178
188
Material : SECC
Thickness : 2.0
Weight : 130g max
M3 Flat screw is requested when mounting.
Please check the instruction manual for the size of screw.
Mounting hole size
3-M3
FRONT
178
25
26
25
37
6
25
26
25
37
6
Option
Option-5
Optional Parts
Example
FRONT REVERSE
Attachment
Plate model
Applicable models
F-PBA10-2
F-PBA15-2
F-PBA30-2
F-PBA50-2
F-PBA75-2
F-PBA100-2
F-PBA150-2
PBA10F
PBA15F, PBW15F
PBA30F, PBW30F, PMA15F
PBA50F, PBW50F, PMA30F
PBA75F, PMA60F
PBA100F
PBA150F, PMA100F
Using hole-A
Using hole-B
TOP VIEW
(Unit : mm) (Tolerance : 1)
F-PBA10-2
Size
hole-B
68.5
35
hole-B
hole-A
3 - 3.5
15
35
F-PBA15-2
Size
hole-A
85.5
17.5
hole-B hole-A
3 - 3.5
15
20.5
10
Material : SECC
Thickness : 1.6
Weight : 70g max
21.5
10
hole-A
11.5
15 15
35
hole-B
5.5
15 15
35
Material : SECC
Thickness : 1.6
Weight : 60g max
M3 screw is requested when mounting.
Please check the instruction manual for the size of screw.
F-PBA30-2
Size
hole-A
103.5
35
hole-B
hole-A
3 - 3.5
15
35
F-PBA50-2
Size
hole-A
123
hole-B hole-A
3 - 3.5
21
hole-B
14
21
15
25
45
Material : SECC
Thickness : 2.0
Weight : 120g max
17.5
7
17.5
20
Material : SECC
Thickness : 1.6
Weight : 80g max
M3 screw is requested when mounting.
Please check the instruction manual for the size of screw.
Option
Option-6
10
hole-B
9
15 15
35
17.5
Optional Parts
TOP VIEW
(Unit : mm) (Tolerance : 1)
F-PBA75-2
Size
hole-A
138
35
hole-B hole-A
3 - 3.5
21
35
F-PBA100-2
Size
hole-B
150
17.5
hole-A
3 - 3.5
21
hole-B
20.5
12
15
25
45
hole-A
hole-B
hole-B
hole-A
18
19.5
7
15
25
45
Material : SECC
Thickness : 2.0
Weight : 130g max
Material : SECC
Thickness : 2.0
Weight : 140g max
M3 screw is requested when mounting.
Please check the instruction manual for the size of screw.
F-PBA150-2
Size
hole-A
171
38
hole-B
3 - 3.5
22
hole-B
hole-A
19.5
12
15
25
45
Material : SECC
Thickness : 2.0
Weight : 170g max
M3 screw is requested when mounting.
Please check the instruction manual for the size of screw.
8
19
7
17.5
Option
Option-7
Optional Parts

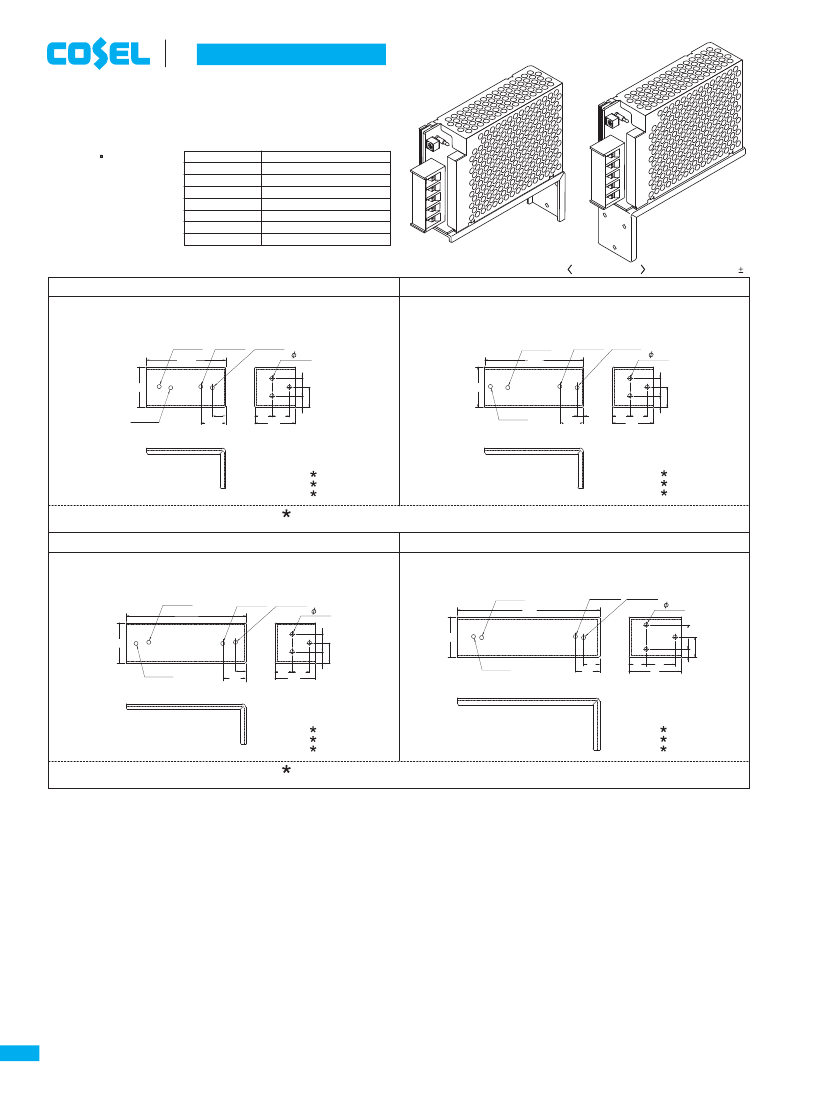

Attachment for Replacement
This is an attachment when replacing to PBA series
from P PAA series.
Plate model
F-PPBA15-1
F-PPBA30-1
F-PPBA50-1
F-PPBA75-1
F-PPBA100-1
F-PPBA150-1
Applicable models
P15 PBA15F
P30 PBA30F
P50, PAA50F PBA50F
PAA75F PBA75F
P100, PAA100F PBA100F
P150, PAA150F PBA150F
Example
(PBA50F)
(Unit : mm) (Tolerance : 1)
F-PPBA15-1
17.5
25
3.1
35
F-PPBA30-1
2-M3
2 - 3.5
4
2-M3
3.5
3.5
3.5
3.5
5
74
82
99.5
7
3.5
5
105
83
124.5
7
15
52
36.5
Mounting
P15
PBA15F
Material : SECC
Thickness : 1.6
Weight : 100g max
52
45.5
3.5
Material : SECC
Thickness : 1.6
Weight : 120g max
Mounting
P30
PBA30F
(BOTTOM VIEW)
3.1
When change to
PBA15F, external
size becomes
larger.
When change to
PBA30F, external
size becomes
larger.
(BOTTOM VIEW)
M3 screw is requested when mounting.
Please check the instruction manual for the size of screw.
Mounting hole size
2 - 3.5
Mounting hole size
2 - 3.5
FRONT
74
FRONT
83
3.1
25
35
2 - 3.5
4
17.5
3.1
Size
Size
Option
Option-13
