172-UL4010-E: DescriptionMulti-Conductor Cables 4C 26AWG SILVER 1000 FT SPOOL; CategoryWire/cable; File Size30KB，1 Pages; ManufacturerKobiconn; Environmental Compliance

Download Datasheet Parametric Compare View All

172-UL4010-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172-UL4010-E	-	-	View	Buy Now

172-UL4010-E Overview

Multi-Conductor Cables 4C 26AWG SILVER 1000 FT SPOOL

172-UL4010-E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kobiconn
Product Category	Multi-Conductor Cables
Shipping Restrictions	Due to size or weight of the product, your shipping charge may increase.
RoHS	Details
Number of Conductors	4 Conductor
Length	1000 ft
Wire Gauge - AWG	26 AWG
Jacket Color	Gray
Outside Diameter	5 mm
Jacket Material	Polyvinyl Chloride (PVC)
Shielding	Unshielded
Features	Passes CM vertical flame test
Number of Pairs	4
Stranding	7 x 34
Voltage Rating	150 V

Preview

Download Datasheet

View All

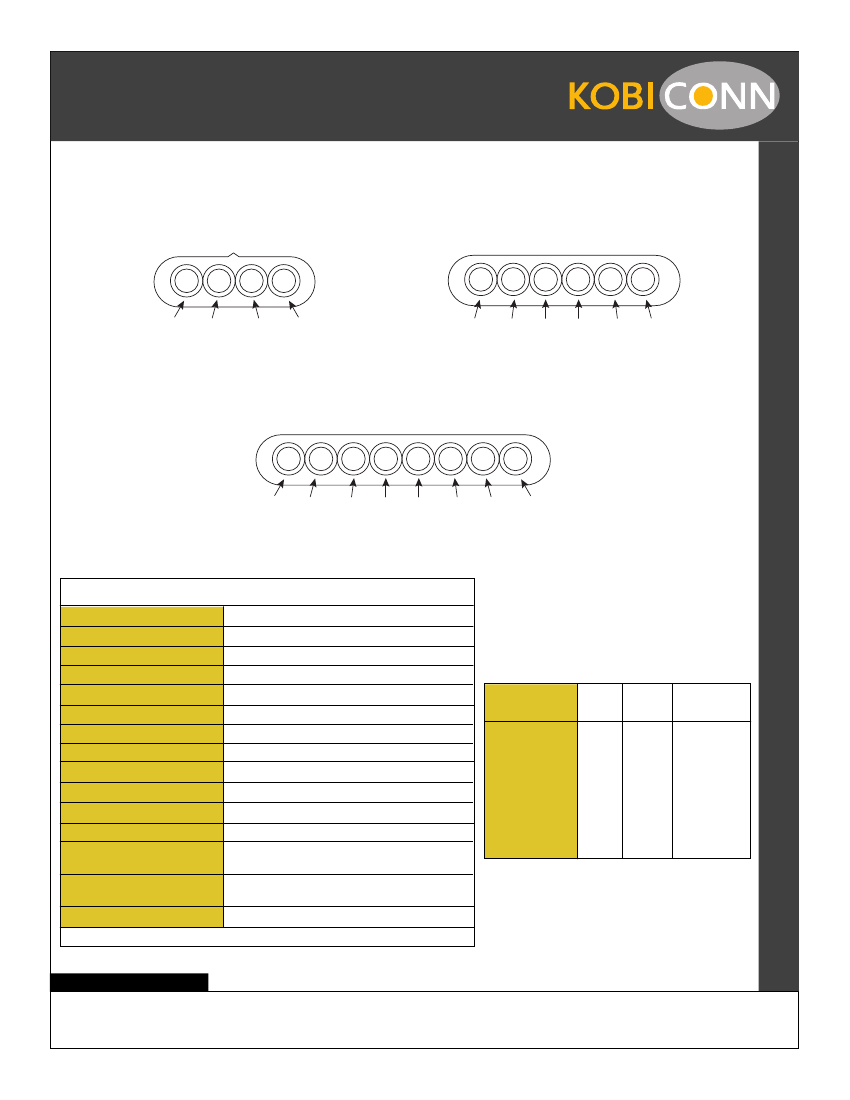

172-UL4010-E, 172-UL4110-E, 172-UL4210-E, 172-UL4310-E,

172-UL6010-E, 172-UL6110-E, 172-UL6210-E, 172-UL8010-E,

172-UL8110-E, 172-UL8210-E

Dimensions: in.

Flat Modular Cable

Black

Red

Green Yellow

White Black Red Green Yellow Blue

Cable Diagrams

Gray Orange Black Red Green Yellow Blue Brown

172-UL4010-E, 172-UL4110-E, 172-UL4210-E, 172-UL4310-E,172-UL6010-E,

172-UL6110-E, 172-UL6210E, 1072-UL8010-E, 172-UL8110-E, 172-UL8210-E

Type:

SPECIFICATIONS

polypropylene

PVC

150V

60°C

1.8A

Conductors:

Insulator:

Jacket:

Voltage:

Passes:

Acceptable current:

Temperature rating:

1000 ft. spool flat modular telephone

26 AWG, 7x34 stranded tinned copper

CM vertical flame test

<2Ω/m

Conductor resistance:

Insulation resistance:

Capacitance/ft:

Elongation:

Tensile strength:

Dielectric withstand voltage:

>500VAC (between adjacent conductors)

>100MΩ

Hardness of jacket:

RoHS Compliant

PVC 60P

Insulation: Min. 200%

Jacket: Min. 100%

Insulation: Min. 1.0kg/mmxmm (square mm)

Jacket: 1.3kg/mmxmm (square mm)

19.95~20.94pF, 25pFmax. (between conductors)

172-UL4010-E

172-UL4110-E

172-UL4210-E

172-UL4310-E

172-UL6010-E

172-UL6110-E

172-UL6210-E

172-UL8010-E

172-UL8110-E

172-UL8210-E

Mouser

Stock No.

No. of Jacket

Cond. Color

4

6

8

Silver

Black

White

Red

Silver

Black

White

Silver

Black

White

Jacket

O.D. (in.)

.197

.276

.354

x

.098

Date Last Revised: 9/15/09

Speciﬁcations are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-

301203
