172-1026-E: DescriptionUSB Cables / IEEE 1394 Cables USB A-MINI USB B 1.5; CategoryWire/cable; File Size109KB，1 Pages; ManufacturerKobiconn; Environmental Compliance

Download Datasheet Parametric View All

172-1026-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172-1026-E	-	-	View	Buy Now

172-1026-E Overview

USB Cables / IEEE 1394 Cables USB A-MINI USB B 1.5

172-1026-E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kobiconn
Product Category	USB Cables / IEEE 1394 Cables
RoHS	Details
Product	USB Cables
Type	USB
Connector End A	USB Type A
Connector End A Pin Count	4 Position
Connector End B	USB Type B
Connector End B Pin Count	4 Position
Gender	Male / Male
Wire Gauge - AWG	28 AWG
Length	1500 mm
Color	Black
Packaging	Bulk
Number of Conductors	4 Conductor
Voltage Rating	300 V

Preview

Download Datasheet

View All

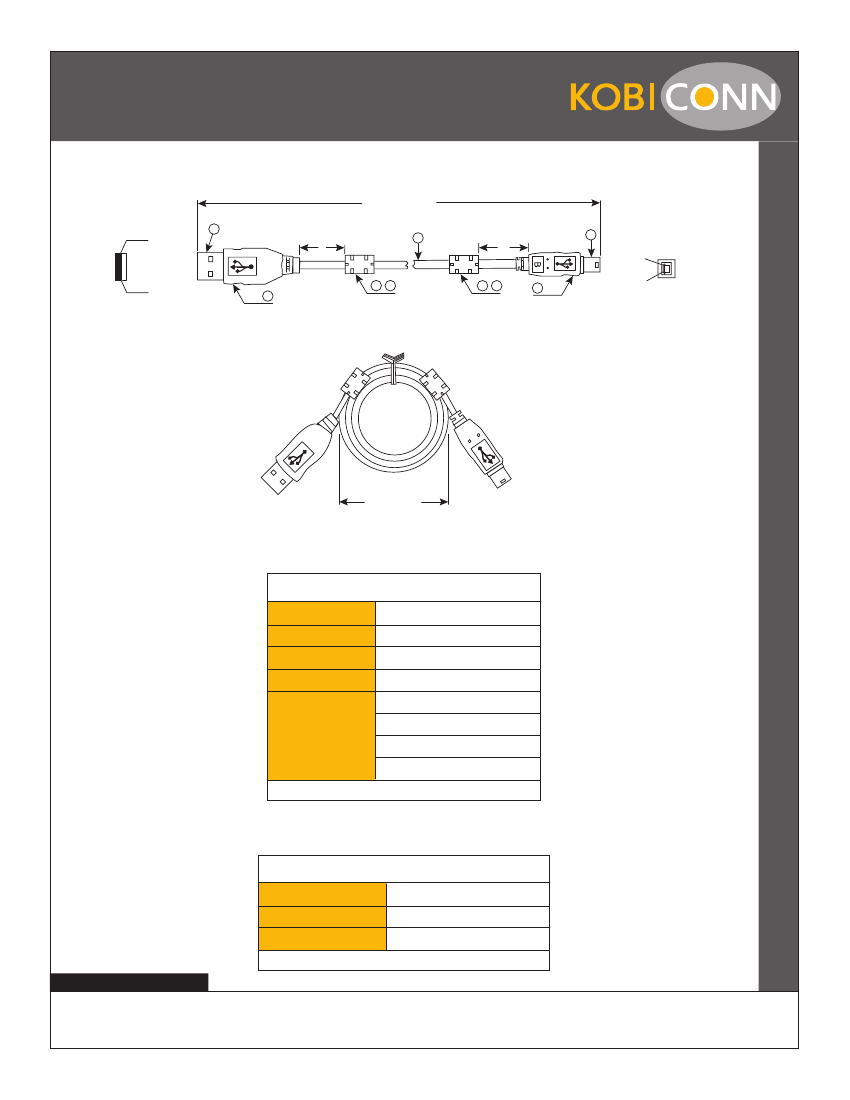

USB “A” Mini-USB “B” Cable

172-1026-E

USB “A” Mini-USB “B” Cable

Front View

4

2

1500 ± 50

(59.06 ± 1.97)

30± 5

(1.18 ± .197)

1

30± 5

(1.18 ± .197)

3

Front View

1

Connt.1:

U.S.B "A" TYPE M

(GOLD 30U")

4

4 5

PVC MOLDING

COLOR:BLACK

4 5

4

5

Connt.2:

MINI USB "B" TYPE MALE

130 ± 20

(5.12 ± .787)

Dimensions: mm (In.)

SPECIFICATIONS

(5) Ferrite Core:

(4) PVC Molding:

(3) Connt. 2:

(2) Connt. 1:

(1) Cable:

ø12x25xø5.6mm

black

Mini USB “B” type 5P male

USB “A” type male

28AWG/1P+28AWG/2C+AEB

Rev: 2.0

Jacket color: black

OD: 3.8 ± 0.1mm

RoHS Compliant

ELECTRICAL SPECIFICATIONS

Contact resistance:

Insulation resistance:

Hi-pot:

2Ω max

50Mega Ω min.

300VDC/10ms

100% open short mis-wire test

Date Last Revised: 8-22-06

172-1026-E

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-

301040

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
