10-002-154YP: DescriptionMulti-Paired Cables YELLOW STREAK JUMPER PITCH BARS 10 COND; CategoryThe connector The connector; File Size538KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

10-002-154YP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10-002-154YP	-	-	View	Buy Now

10-002-154YP Overview

Multi-Paired Cables YELLOW STREAK JUMPER PITCH BARS 10 COND

10-002-154YP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

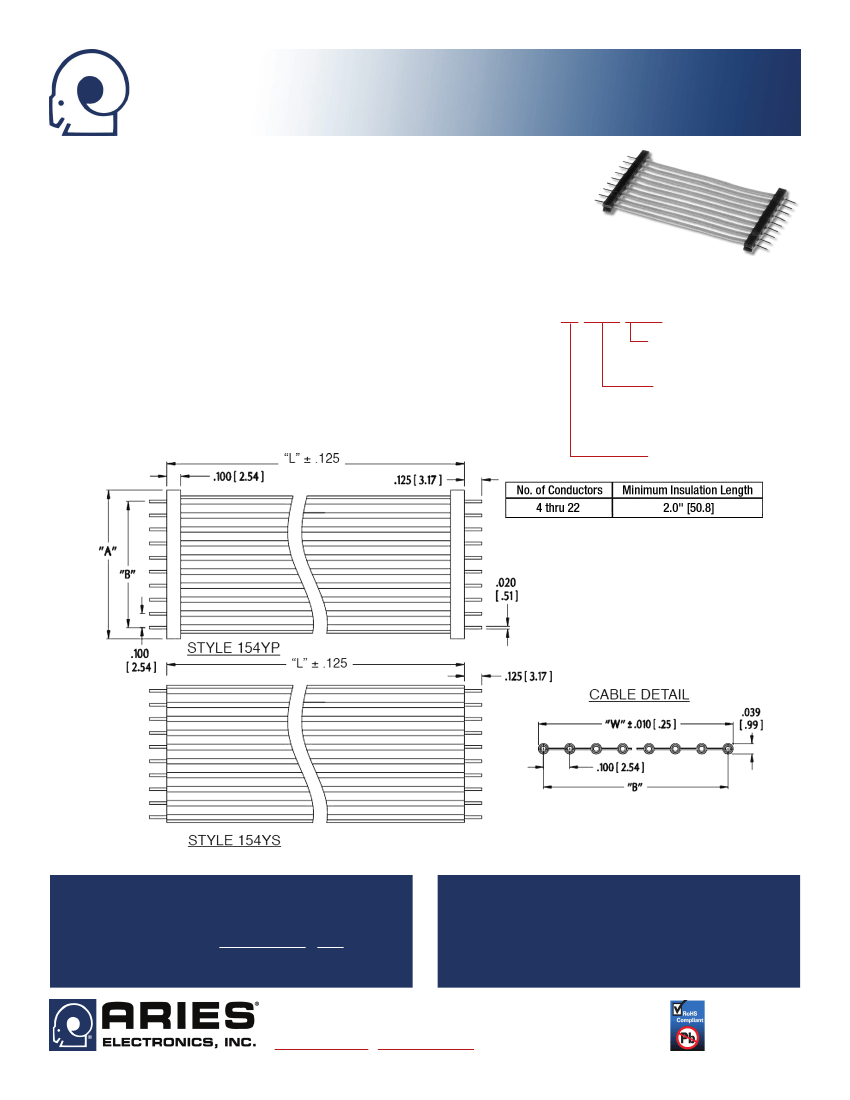

Series 154 Yellow Streak Jumpers

on 0.100 [2.54] Centers

FEATURES

• Maintain 0.100 [2.54] Conductor Spacing with Pitch Bars

GENERAL SPECIFICATIONS

•

PITCH BAR: Black UL 94V-0 glass-filled 4/6 Nylon

•

CABLE INSULATION: UL Style 1061 Polyvinyl Chloride (PVC), semi-rigid

•

LAMINATE: Clear PVC, Self-extinguishing

•

CONDUCTORS: 24-AWG, tinned, solid Cu

•

CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient

•

CABLE VOLTAGE RATING: 300V

•

CABLE TEMPERATURE RATING: 176°F [80°C]

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

ORDERING INFORMATION

XX-XXXX-XXXX

Series

154YS = Without Pitch Bars

154YP = With Pitch Bars

Length “L” (inches)

2.00" = 002 (min)

2.50" = 002.5

3.00" = 003

Etc.

No. of Conductors

(4 thru 22)

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

NOT TO BE USED FOR HIGH-FLEX APPLICATIONS

FOR HIGH-FLEX APPLICATIONS, SEE DATA SHEETS 11005 & 11014

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

11015

Rev. 5.5

1 of 1
