A-2PA-113-150B2 datasheet, PDF

Datasheet> All Categories > Wire/cable> A-2PA-113-150B2

A-2PA-113-150B2: DescriptionRF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt; CategoryWire/cable; File Size1020KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Compare View All

A-2PA-113-150B2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A-2PA-113-150B2	-	-	View	Buy Now

A-2PA-113-150B2 Overview

RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt

Preview

Download Datasheet

View All

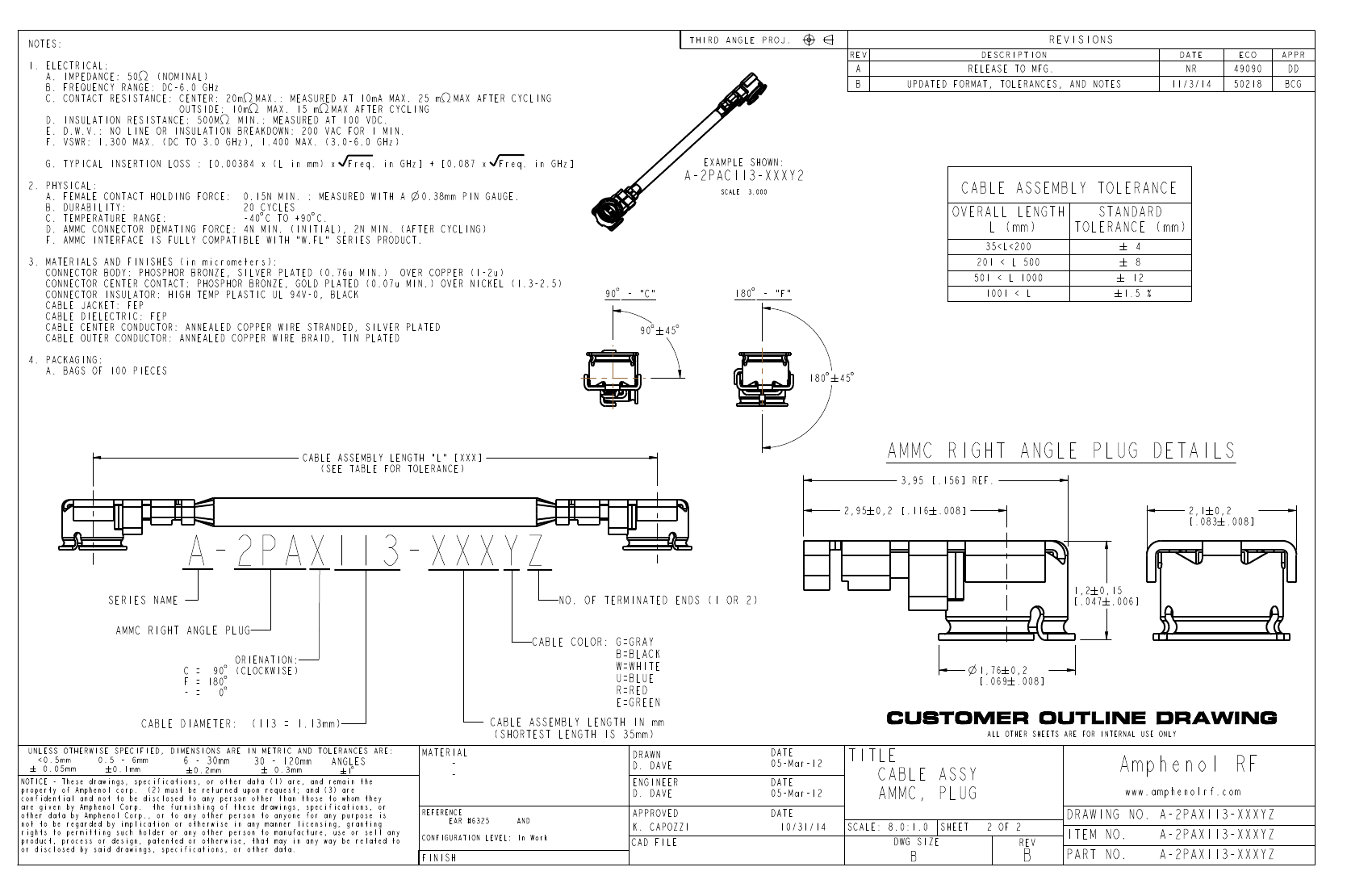

NOTES:

1. ELECTRICAL:

A. IMPEDANCE: 50

(NOMINAL)

B. FREQUENCY RANGE: DC-6.0 GHz

C. CONTACT RESISTANCE: CENTER: 20m

MAX.: MEASURED AT 10mA MAX. 25 m

OUTSIDE: 10m

MAX. 15 m MAX AFTER CYCLING

D. INSULATION RESISTANCE: 500M

MIN.: MEASURED AT 100 VDC.

E. D.W.V.: NO LINE OR INSULATION BREAKDOWN: 200 VAC FOR 1 MIN.

F. VSWR: 1.300 MAX. (DC TO 3.0 GHz), 1.400 MAX. (3.0-6.0 GHz)

G. TYPICAL INSERTION LOSS : [0.00384 x (L in mm) x

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG.

DESCRIPTION

DATE

MAX AFTER CYCLING

UPDATED FORMAT, TOLERANCES, AND NOTES

11/3/14

49090

50218

ECO

APPR

BCG

Freq. in GHz] + [0.087 x

Freq. in GHz]

2. PHYSICAL:

A. FEMALE CONTACT HOLDING FORCE: 0.15N MIN. : MEASURED WITH A

0.38mm PIN GAUGE.

B. DURABILITY:

20 CYCLES

C. TEMPERATURE RANGE:

-40 C TO +90 C.

D. AMMC CONNECTOR DEMATING FORCE: 4N MIN. (INITIAL), 2N MIN. (AFTER CYCLING)

F. AMMC INTERFACE IS FULLY COMPATIBLE WITH "W.FL" SERIES PRODUCT.

3. MATERIALS AND FINISHES (in micrometers):

CONNECTOR BODY: PHOSPHOR BRONZE, SILVER PLATED (0.76u MIN.) OVER COPPER

CONNECTOR CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATED (0.07u MIN.) OVER

CONNECTOR INSULATOR: HIGH TEMP PLASTIC UL 94V-0, BLACK

CABLE JACKET: FEP

CABLE DIELECTRIC: FEP

CABLE CENTER CONDUCTOR: ANNEALED COPPER WIRE STRANDED, SILVER PLATED

CABLE OUTER CONDUCTOR: ANNEALED COPPER WIRE BRAID, TIN PLATED

4. PACKAGING:

A. BAGS OF 100 PIECES

(1-2u)

NICKEL (1.3-2.5)

A-2PAC113-XXXY2

SCALE

3.000

EXAMPLE SHOWN:

OVERALL LENGTH

STANDARD

L (mm)

TOLERANCE (mm)

501 < L 1000

1001 < L

201 < L 500

35<L<200

# 12

# 8

# 4

CABLE ASSEMBLY TOLERANCE

90 $- "C"

90 $#

45 $

180 $- "F"

#1.5 %

180 $#

45 $

CABLE ASSEMBLY LENGTH "L" [XXX]

(SEE TABLE FOR TOLERANCE)

AMMC RIGHT ANGLE PLUG DETAILS

3,95 [.156] REF.

2,95 #

0,2 [.116 #

.008 ]

2,1 #

0,2

[.083 #

.008 ]

A-2PAX113-XXXYZ

SERIES NAME

AMMC RIGHT ANGLE PLUG

ORIENATION:

C = 90 $(CLOCKWISE)

F = 180 $

- =

0 $

NO. OF TERMINATED ENDS (1 OR 2)

CABLE COLOR: G=GRAY

B=BLACK

W=WHITE

U=BLUE

R=RED

E=GREEN

CABLE ASSEMBLY LENGTH IN mm

(SHORTEST LENGTH IS 35mm)

MATERIAL

REFERENCE

EAR #6325

1,2 #

0,15

[.047 #

.006 ]

1,76 #

0,2

[.069 #

.008 ]

CABLE DIAMETER:

(113 = 1.13mm)

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

6 - 30mm

30 - 120mm

ANGLES

# 0.05mm

0.1mm

# 0.3mm

0.2mm

# $

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

DRAWN

D. DAVE

ENGINEER

D. DAVE

AND

DATE

05-Mar-12

DATE

05-Mar-12

DATE

10/31/14

CONFIGURATION LEVEL: In Work

FINISH

CAD FILE

APPROVED

K. CAPOZZI

TITLE

CABLE ASSY

AMMC, PLUG

SCALE: 8.0:1.0

DWG SIZE

SHEET

2 OF 2

Amphenol RF

www.amphenolrf.com

DRAWING NO. A-2PAX113-XXXYZ

REV

ITEM NO.

PART NO.

A-2PAX113-XXXYZ

A-2PA-113-150B2 Related Products

	A-2PA-113-150B2	A-2PA-113-100B2	A-2PA-113-250B2	A-2PA-113-200B2	A-2PA-113-050B2	A-2PA-113-300B2	A-2PA-113-01KB2
Description	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt	RF Cable Assemblies AMMC RAPLG-AMMCRAPLG 1.13MM MC W.FL Compt
Product Attribute	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	-	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	-	Details	Details	Details	Details	Details	Details
Connector A Series	-	AMMC	AMMC	AMMC	AMMC	AMMC	AMMC
Connector B Series	-	AMMC	AMMC	AMMC	AMMC	AMMC	AMMC
Length	-	100 mm	250 mm	200 mm	50 mm	300 mm	1 m
Impedance	-	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	-	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	-	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax
Packaging	-	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Color	-	Black	Black	Black	Black	Black	Black
Contact Plating	-	Gold	Gold	Gold	Gold	Gold	Gold
Contact Material	-	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Factory Pack Quantity	-	100	100	100	100	100	100
Unit Weight	-	0.012346 oz	0.028219 oz	0.022928 oz	0.007055 oz	0.033510 oz	0.106880 oz
