6
5
4
3
2
1
D
L
D
Interfacial
Gasket
Overmolded
mini-B USB Plug
Coupling Ring
(Bayonet Locking Type)
Overmolded
USB Type A Plug
C
C
NOTES:
1. Electrical Specifications:
Meets USB 2.0 Specifications
Low level Contact Resistance:
- 50 mOhm max. for mini USB
- 30 mOhm max. for USB
Pin-Assignments
mini-B USB Plug
USB Cable
USB Type A Plug
B
Insulation Resistance 100 MOhm min.
Currant Rating: 1.0 A max. @ 25
~
C
DWV: 100 VAC/60s at sea level
Connector Operating Temperature: -40
~
C to +80
~
C
2. Material and Finish:
- mini USB Coupling Ring: PBT (Black); UL94 V-0
- mini USB Overmold: PVC (Black); UL94 V-0
- mini USB Insulator: PBT, UL 94V-0, Black
- Gasket: Silicone, Transparent
- USB Insulator: PBT, UL 94V-0, Color: White
- USB Overmold: PVC, UL94 V-0, Color: Black
- mini USB & USB Metal Shell: Steel. Nickel plated
Pin1
Pin2
Pin3
Pin4
Pin5
Shell
------------------------
------------------------
------------------------
------------------------
------------------------
------------------------
Red -------------------- Pin1
White ------------------ Pin2
Green ------------------ Pin3
Not Connected
Black ------------------- Pin4
Braid + Drain ----------- Shell
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
b
c
Cable Length L
2 m +/-0.1m
3 m +/-0.1m
5 m +/-0.1m
Part Number
17-250031
17-250041
17-250051
B
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
Approval Date
Unless otherwise specified
Tolerance
Name
Title
0 PLC
1 PLC
2 PLC
3 PLC
ANGLES
`
0.30
`
0.20
`
0.10
`
0.05
`
1
~
Scale: 2
Autodesk
Inventor
Name
Vincent Ke
J. Cahudry
Dim. in m
Material: See Notes
Title:
2011
Draw.
Appd.
Norm
Date
May 05
May 05

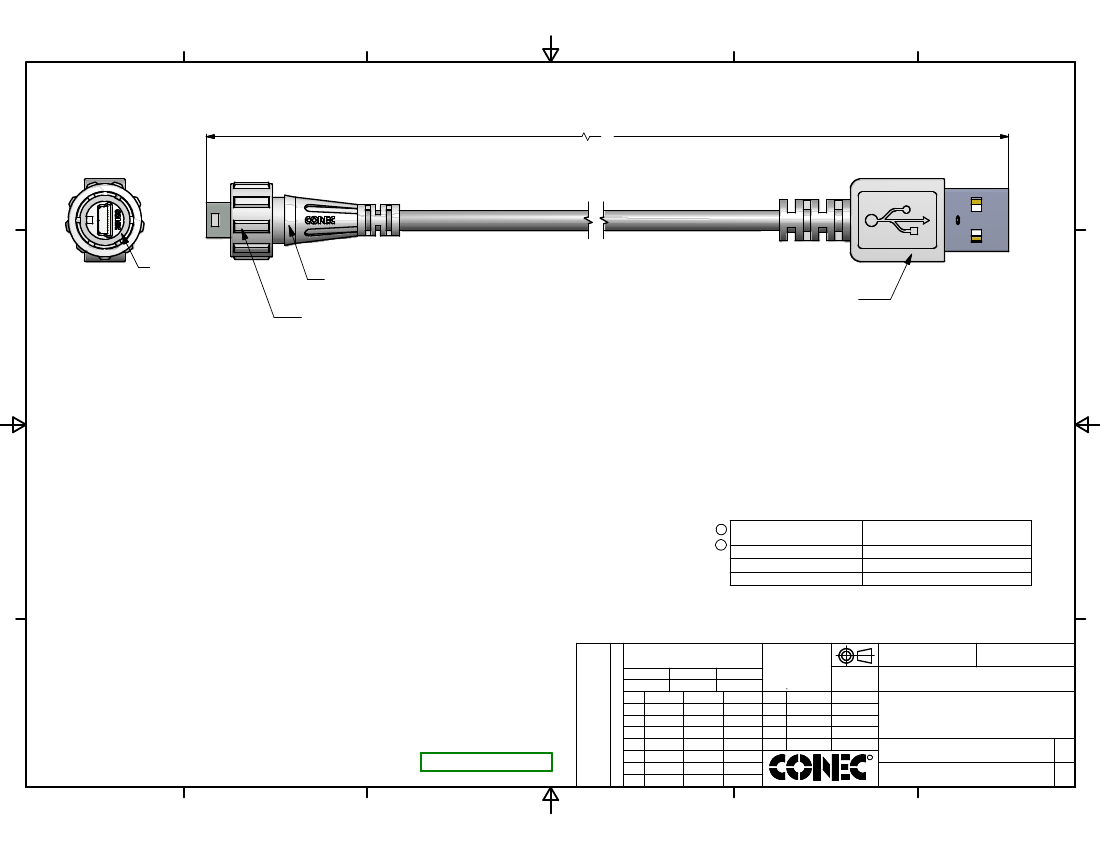

USB Patch Cords
IP67 mini-B USB Plug
to Standard USB Type A Plug
A
- mini USB & USB Contact: Copper Alloy, 30 u" min. Au over 40 u" min. Ni Plated
3. Shielded USB Cable Confirguration
AWM
2725 AWG28/1p + AWG28/2c, OD: 3.5 mm Color: black
4. IP67 rated when fully mated with appropriate mating connector
A
DIN
c
b
a
Rev.
RoHS Compliant
4
1 x c Mar/27/2015 Vincent Ke
D-old
1 x b Feb/09/2015 Vincent Ke
original
Changes
Date
Name
R
Drawing No.: 17K1A140
Part No.: SEE P/N ABOVE
A3
Sheet
1/1
6
5
3
2
1
