43-15365 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 43-15365

43-15365: DescriptionEthernet Cables / Networking Cables 8P M DBL END M12x1 X-CODE CABLE ASSY 2M; CategoryWire/cable; File Size933KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric Compare View All

43-15365 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43-15365	-	-	View	Buy Now

43-15365 Overview

Ethernet Cables / Networking Cables 8P M DBL END M12x1 X-CODE CABLE ASSY 2M

43-15365 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CONEC
Product Category	Ethernet Cables / Networking Cables
RoHS	Details
Type	Cat 6
Connector End A	M12
Connector End A Pin Count	8 Position
Connector End B	M12
Connector End B Pin Count	8 Position
Length	2 m
Color	Water Blue
Number of Conductors	8
Wire Gauge - AWG	26 AWG, 7 AWG
Gender	Male / Male
Packaging	Bulk
Current Rating	500 mA
Voltage Rating	48 V
Factory Pack Quantity	10

Preview

Download Datasheet

View All

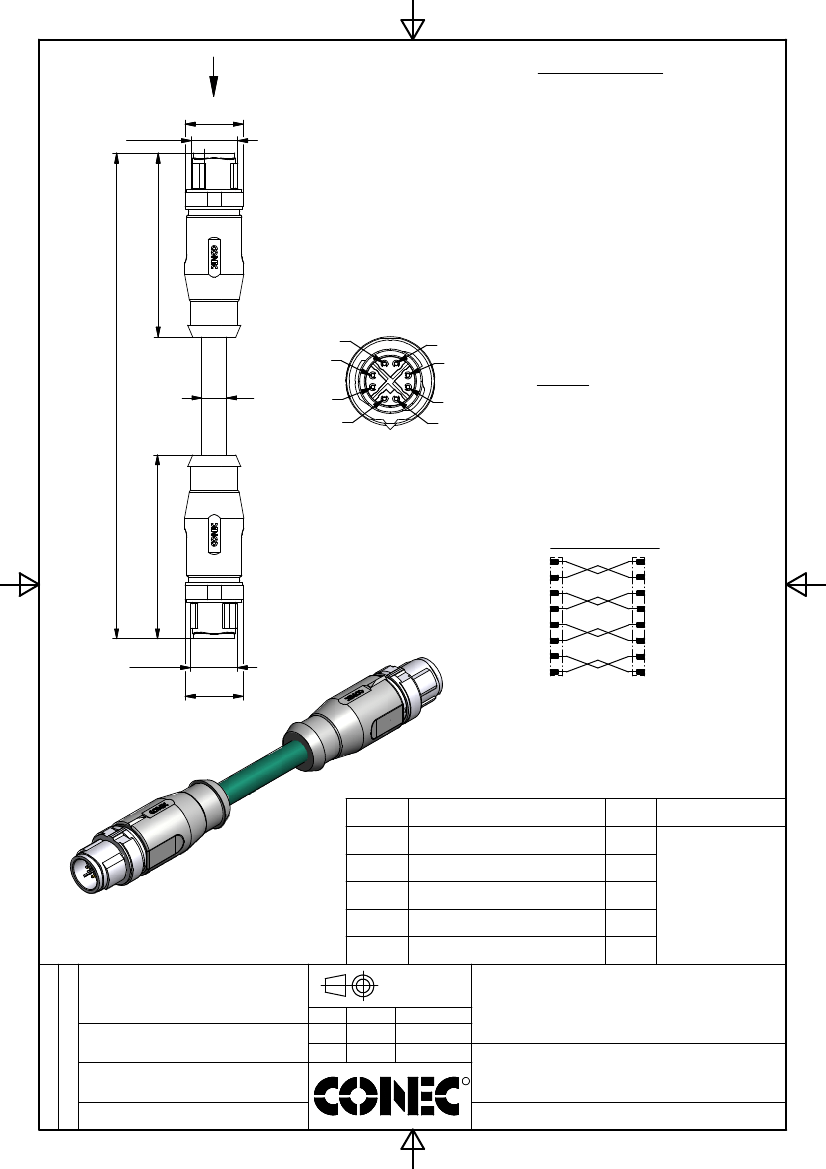

Technical specification:

Rated voltage:

IEC 61076-2-109

Current rating:

IEC 61076-2-109

Transmission properties:

,6 2 ,( &

Surge voltage category:

48 V

500 mA at 40°C

JDEL ( W Q

W KHU HW

&$ 7

Ø14,8

M12x1

Pollution degree:

IEC 60664-1

Degree of protection:

IEC 60529

IP 67, in mated

condition

-25° ... +85°

>=100

Temperature range:

IEC 60664-1

Mating cycles:

IEC 60512-9a

Materials:

Contact:

Contact plating:

Contact carrier:

Coupling screw:

Moulding body:

CuSn

Nickel, gold plated

PPA

GD-Zn, nickel plated

TPU, UL 94, grey

Contact assignment:

M12x1

Ø14,8

Part no:

43-15364

43-15365

43-15366

43-15367

Description:

SAL - 12X - RS8.8 - RS8.8 / 1 / GG

SAL - 12X - RS8.8 - RS8.8 / 2 / GG

SAL - 12X - RS8.8 - RS8.8 / 5 / GG

SAL - 12X - RS8.8 - RS8.8 / 10 / GG

SAL - 12X - RS8.8 - RS8.8 / ... / GG

Length L: Cable:

10m

TPU,

water blue (RAL 5021),

4x2xAWG26/7; S-FTP

Kabel: 781-GG180T

D see data sheep cable

DO NOT ALTER CAD DRAWING BY HAND

43-xxxxx

Directive 2002/95/EC RoHS compliant

dim. in mm

date

name

title:

Connecting cable,

male connector M12x1 X-coded

dwg no:

tolerance of cable:

L <= 4m: L + 40mm

L > 4m: L + 1%

0,0

0,00

± 0,50mm

± 0,25mm

± 0,10mm

drawn

29.09.11

appd.

Kniesburges

Mankopf

05.10.11

general tolerance:

43K1A1473

part no:

THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND

MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

see table
