1
(PG9)
+0.1
0
2
(M16*1.5)
13.6
+0.1
0
3
B
4
REV.
B
5
ECN NO.
LE31580014~015
QC
6
DATE
2015-07-25
QC
7
SIGN
Yulong_wang
DESCRIPTION
Change to Share Drawing.
20.6 (Ref.)
2.0
45.0 $
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
13.6
L(mm)
20.0
#
0.1
10.0
QC
PG9 or M16*1.5
15.4
16.1
E
Recommended
Panel Cut-Out
Recommended
Panel Cut-Out
Wire harness
Liquid Glue
3
6
4
2
1
5
Shield
Connector
Housing O-Ring
T
A
L
W
CONFIDENTIAL
Screw Nut
Panel O-Ring
D
2015-07-25
R&D DEPT.
M 12D - 04 P F F C - S H 8 X XX
12D:D-Code
04:4Pin
P:Panel(板端)
F:Female Connector(母座)
F:Female Pin(母Pin)
C:Crimp Type(打端式)
B:PG9
C:M16*1.5
8:IP68(防水等級68)
H:Rear Fasten(后鎖式/Enclosure
Front Mount)
22
AWG
M12D-04PFFC-SH8BXX
M12D-04PFFC-SH8CXX
Item No.
15:150mm
30:300mm
50:500mm
A0:1000mm
A5:1500mm
Wire Length(L):150~1500mm
18.0 (Hex)
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
4
3
2
1
Black 黑
Blue 藍
White ½
Brown 棕
Wire
Pin Out
Pin #
B
4P
Pin Assignments
Front View
S:Screw(螺紋式)
4P
Contacts
TITLE
UL1061
Wire
harness
Note:
* Important Dimension.
QC
* Waterproof Rate:IP68.
* Housing:Nylon+GF,Black.
* Female Pin:Copper Alloy,Gold Plated.
* Shield:Zinc Alloy,Nickel Plated.
* Screw Nut:Zinc Alloy,Nickel Plated.
* Panel O-Ring:Viton,Black.
* Housing O-Ring:Viton,Green.
* Wire harness: UL1061
* Rated Voltage: 250V dc. or ac.
* Rated Current: 4A
* Operating Temperature: -25~85 $ C
* For Panel Thickness Max 4.5mm.
* Recommended Nut Torque:4-6 Kgf.cm.
* Wire harness Tolerance: 150~300
# 15mm
301~1000 # 20mm
Over1000 # 40mm
ITEM NO
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $

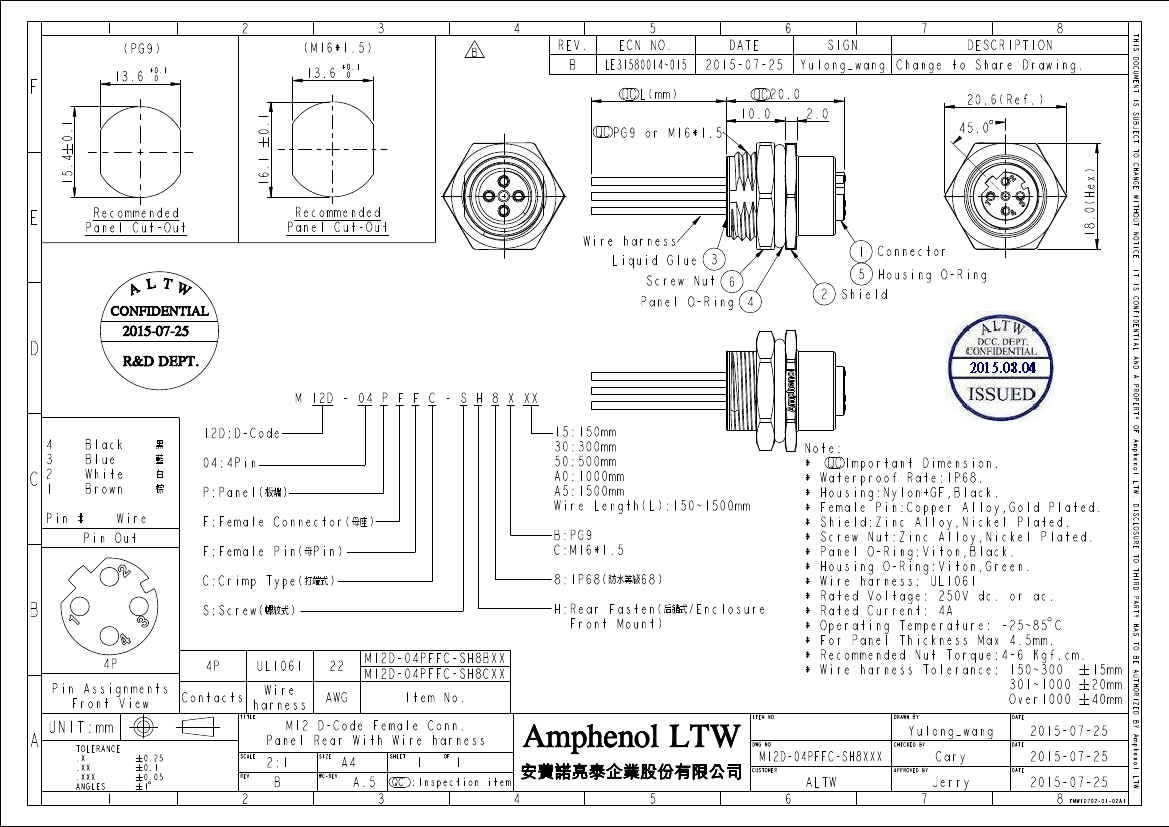

M12 D-Code Female Conn.
Panel Rear With Wire harness
2:1
B
SIZE
SCALE
A4
A.5
3
SHEET
1
OF
Amphenol LTW
4
5
Yulong_wang
DWG NO
CHECKED BY
DATE
2015-07-25
2015-07-25
DATE
Amphenol LTW.
1
M12D-04PFFC-SH8XXX
CUSTOMER
APPROVED BY
Cary
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2015-07-25
8
FMW10702-01-02A1
Embedded System
