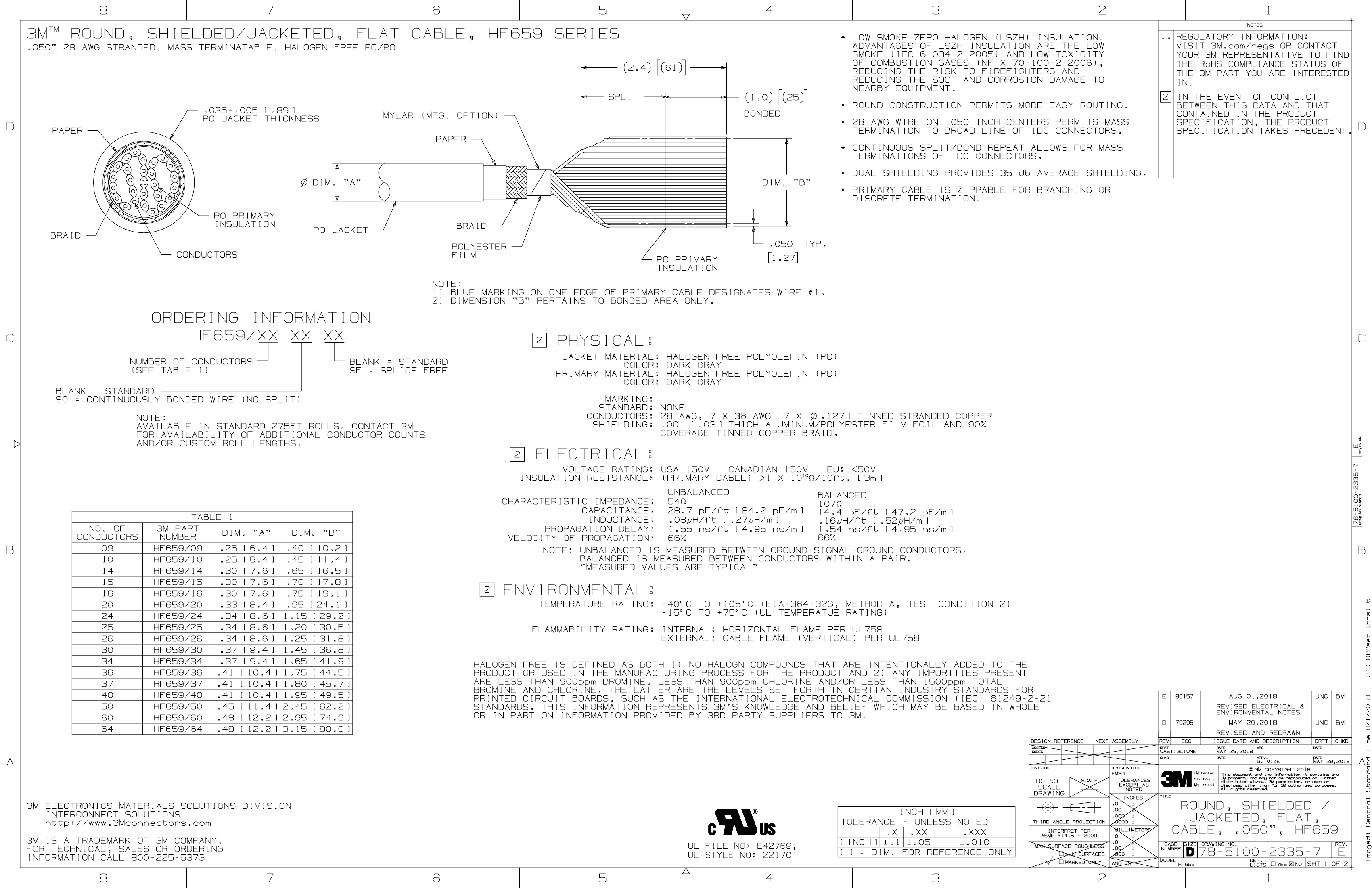

ROUND, SHIELDED/JACKETED, FLAT CABLE, HF659 SERIES
2.4
61
.050" 28 AWG STRANDED, MASS TERMINATABLE, HALOGEN FREE PO/PO
* LOW SMOKE ZERO HALOGEN (LSZH) INSULATION.
ADVANTAGES OF LSZH INSULATION ARE THE LOW
SMOKE (IEC 61034-2-2005) AND LOW TOXICITY
OF COMBUSTION GASES (NF X 70-100-2-2006),
REDUCING THE RISK TO FIREFIGHTERS AND
REDUCING THE SOOT AND CORROSION DAMAGE TO
NEARBY EQUIPMENT.
1.0
BONDED
* 28 AWG WIRE ON .050 INCH CENTERS PERMITS MASS
TERMINATION TO BROAD LINE OF IDC CONNECTORS.
* CONTINUOUS SPLIT/BOND REPEAT ALLOWS FOR MASS
TERMINATIONS OF IDC CONNECTORS.
* DUAL SHIELDING PROVIDES 35 db AVERAGE SHIELDING.
25
* ROUND CONSTRUCTION PERMITS MORE EASY ROUTING.
SPLIT
.035 .005 [.89]
PO JACKET THICKNESS
PAPER
PAPER
MYLAR (MFG. OPTION)
D
D
DIM. "A"
DIM. "B"
* PRIMARY CABLE IS ZIPPABLE FOR BRANCHING OR
DISCRETE TERMINATION.
PO PRIMARY
INSULATION
BRAID
CONDUCTORS
PO JACKET
BRAID
POLYESTER
FILM
.050
PO PRIMARY
INSULATION
1.27
TYP.
NOTE:
1) BLUE MARKING ON ONE EDGE OF PRIMARY CABLE DESIGNATES WIRE #1.
2) DIMENSION "B" PERTAINS TO BONDED AREA ONLY.
C
ORDERING INFORMATION
HF659/XX XX XX
NUMBER OF CONDUCTORS
(SEE TABLE 1)
BLANK = STANDARD
SO = CONTINUOUSLY BONDED WIRE (NO SPLIT)
NOTE:
AVAILABLE IN STANDARD 275FT ROLLS. CONTACT 3M
FOR AVAILABILITY OF ADDITIONAL CONDUCTOR COUNTS
AND/OR CUSTOM ROLL LENGTHS.
2
BLANK = STANDARD
SF = SPLICE FREE
2
PHYSICAL:
JACKET MATERIAL: HALOGEN FREE POLYOLEFIN (PO)
COLOR: DARK GRAY
PRIMARY MATERIAL: HALOGEN FREE POLYOLEFIN (PO)
COLOR: DARK GRAY
MARKING:
STANDARD: NONE
CONDUCTORS: 28 AWG, 7 X 36 AWG [7 X
.127] TINNED STRANDED COPPER
SHIELDING: .001 [.03] THICH ALUMINUM/POLYESTER FILM FOIL AND 90%
COVERAGE TINNED COPPER BRAID.
C
ELECTRICAL:
UNBALANCED
54
28.7 pF/ft [84.2 pF/m]
.08 H/ft [.27 H/m]
1.55 ns/ft [4.95 ns/m]
66%
BALANCED
107
14.4 pF/ft [47.2 pF/m]
.16 H/ft [.52 H/m]
1.54 ns/ft [4.95 ns/m]
66%
VOLTAGE RATING: USA 150V
CANADIAN 150V
EU: <50V
10
INSULATION RESISTANCE: (PRIMARY CABLE) >1 X 10
/10ft. [3m]
CHARACTERISTIC IMPEDANCE:
CAPACITANCE:
INDUCTANCE:
PROPAGATION DELAY:
VELOCITY OF PROPAGATION:
B
TEMPERATURE
RATING: -40 C TO +105 C (EIA-364-32G, METHOD A, TEST CONDITION 2)
-15 C TO +75 C (UL TEMPERATUE RATING)
FLAMMABILITY RATING: INTERNAL: HORIZONTAL FLAME PER UL758
EXTERNAL: CABLE FLAME (VERTICAL) PER UL758
HALOGEN FREE IS DEFINED AS BOTH 1) NO HALOGN COMPOUNDS THAT ARE INTENTIONALLY ADDED TO THE
PRODUCT OR USED IN THE MANUFACTURING PROCESS FOR THE PRODUCT AND 2) ANY IMPURITIES PRESENT
ARE LESS THAN 900ppm BROMINE, LESS THAN 900ppm CHLORINE AND/OR LESS THAN 1500ppm TOTAL
BROMINE AND CHLORINE. THE LATTER ARE THE LEVELS SET FORTH IN CERTIAN INDUSTRY STANDARDS FOR
PRINTED CIRCUIT BOARDS, SUCH AS THE INTERNATIONAL ELECTROTECHNICAL COMMISSION (IEC) 61249-2-21
STANDARDS. THIS INFORMATION REPRESENTS 3M'S KNOWLEDGE AND BELIEF WHICH MAY BE BASED IN WHOLE
OR IN PART ON INFORMATION PROVIDED BY 3RD PARTY SUPPLIERS TO 3M.
E
80157
AUG 01,2018
REVISED ELECTRICAL &
ENVIRONMENTAL NOTES
JNC
BM
D
DESIGN REFERENCE
ACCESS
CODES
79295
ECO
MAY 29,2018
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
BM
CHKD
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
MAY 29,2018
DATE
APPVL
DATE
A
B. MIZE
DIVISION
DIVISION CODE
MAY 29,2018
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2018
A
EMSD
DO NOT
SCALE
DRAWING
SCALE
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
3M ELECTRONICS MATERIALS SOLUTIONS DIVISION
INTERCONNECT
SOLUTIONS
http://www.3Mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
R
UL FILE NO: E42769,
UL STYLE NO: 22170
INCH [MM]
TOLERANCE - UNLESS NOTED
.X .XX
.XXX
[INCH] .1 .05
.010
[] = DIM. FOR REFERENCE ONLY
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
ROUND, SHIELDED /
JACKETED, FLAT,
CABLE, .050", HF659
CAGE SIZE
NUMBER
MODEL
HF659
DRAWING NO.
REV.
78-5100-2335-7
DET.
LISTS
YES
NO
E
SHT 1 OF 2
8
7
6
5
4
3
2
1
Imaged: Central Standard Time 8/1/2018 -- UTC Offset (hrs) 6
NO. OF
CONDUCTORS
09
10
14
15
16
20
24
25
26
30
34
36
37
40
50
60
64
TABLE 1
3M PART
DIM. "A"
NUMBER
HF659/09
.25 [6.4]
HF659/10
.25 [6.4]
HF659/14
.30 [7.6]
HF659/15
.30 [7.6]
HF659/16
.30 [7.6]
HF659/20
.33 [8.4]
HF659/24
.34 [8.6]
HF659/25
.34 [8.6]
HF659/26
.34 [8.6]
HF659/30
.37 [9.4]
HF659/34
.37 [9.4]
HF659/36
.41 [10.4]
HF659/37
.41 [10.4]
HF659/40
.41 [10.4]
HF659/50
.45 [11.4]
HF659/60
.48 [12.2]
HF659/64
.48 [12.2]
DIM. "B"
.40 [10.2]
.45 [11.4]
.65 [16.5]
.70 [17.8]
.75 [19.1]
.95 [24.1]
1.15 [29.2]
1.20 [30.5]
1.25 [31.8]
1.45 [36.8]
1.65 [41.9]
1.75 [44.5]
1.80 [45.7]
1.95 [49.5]
2.45 [62.2]
2.95 [74.9]
3.15 [80.0]
NOTE: UNBALANCED IS MEASURED BETWEEN GROUND-SIGNAL-GROUND CONDUCTORS.
BALANCED IS MEASURED BETWEEN CONDUCTORS WITHIN A PAIR.
"MEASURED VALUES ARE TYPICAL"
2
ENVIRONMENTAL:
78-5100-2335-7
B
DRAWING NUMBER
REVISION
E
8
7
6
5
4
3
2
1
3M
TM
ROUND, SHIELDED/JACKETED, FLAT CABLE, HF659 SERIES
.050" 28 AWG STRANDED, MASS TERMINATABLE, HALOGEN FREE PO/PO
D
D

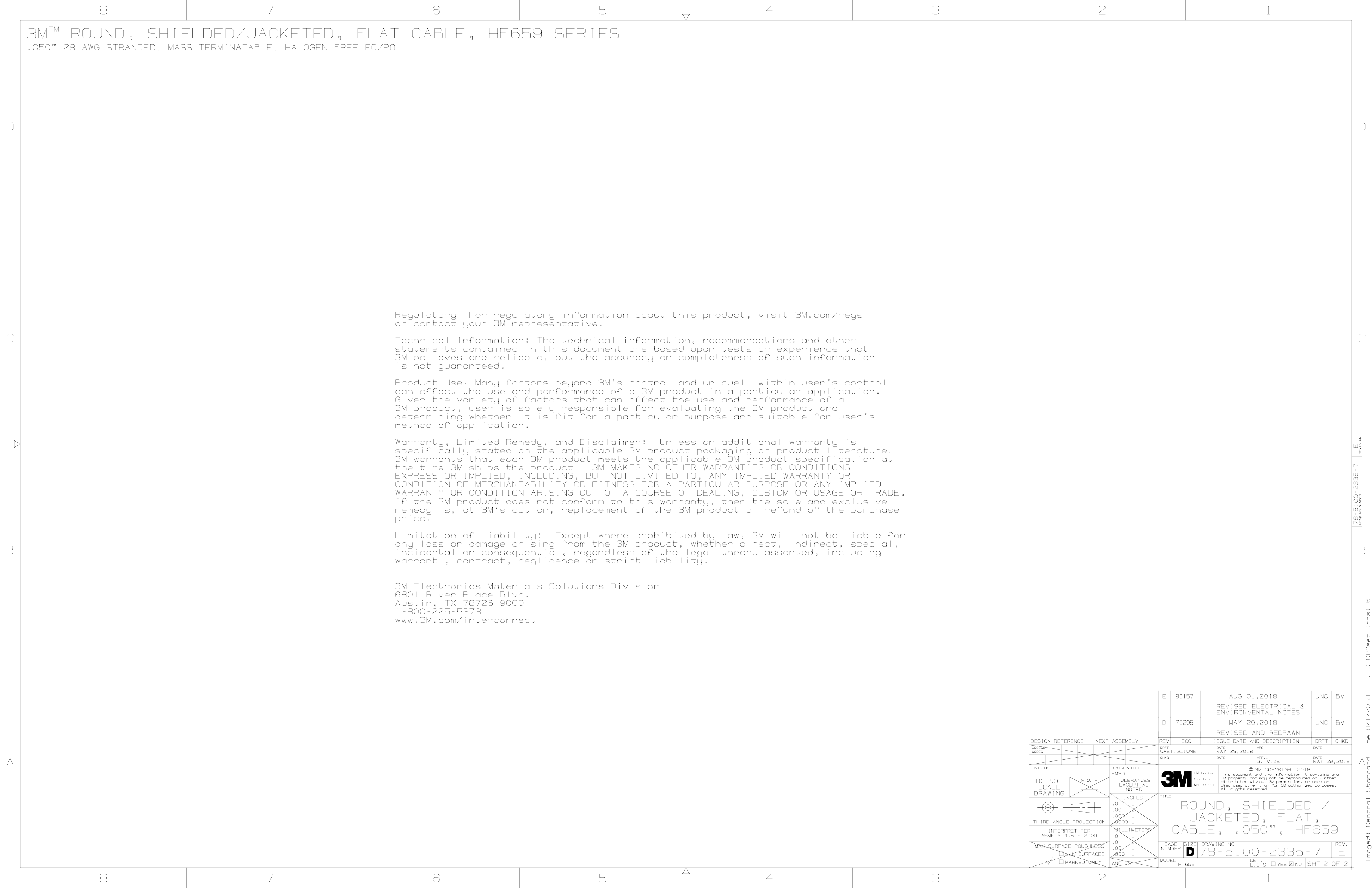

Regulatory: For regulatory information about this product, visit 3M.com/regs
