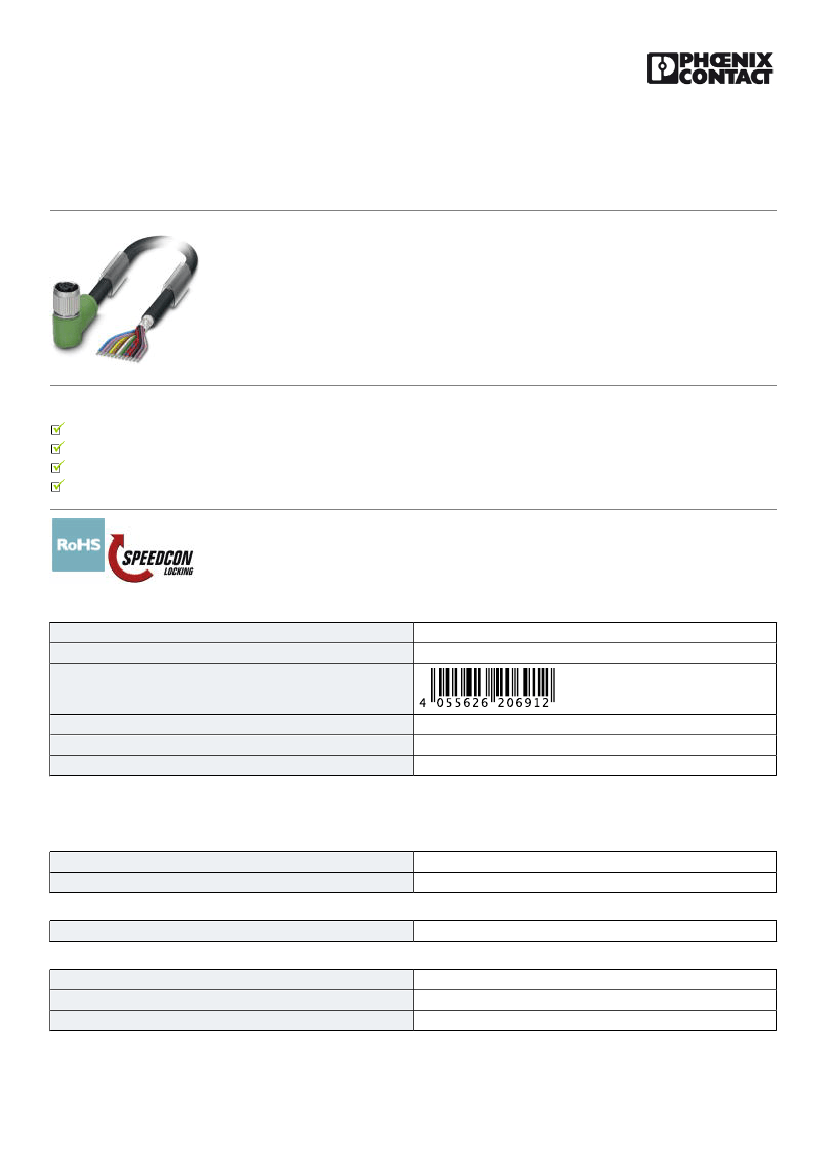

Sensor/Actuator cable - SAC-12P- 5,6-35T/FR SH SCO - 1419911
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Why buy this product
Easy and safe: 100% electrically tested plug-in components
Save time, thanks to installation with SPEEDCON fast locking system
Save space – with high-pos. connectors
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626206912
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
5.6 m
35 mm
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
General
Rated current at 40°C
Rated voltage
Number of positions
1.5 A
30 V
12
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1419911
Sensor/Actuator cable - SAC-12P- 5,6-35T/FR SH SCO - 1419911
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
3
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
V0
CuZn
Ni/Au
PA 66
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Resistance to oil
Flame resistance
Other resistance
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
DIN VDE 0472 Part 803, test type B
DIN VDE 0472 part 804, test type B
Hydrolysis and microbe resistant as per VDE 0282 section 10
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Twisted pairs
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Black PUR/PVC twisted pair
35T
LSPYwC11Y
20233 / 1061 (80°C/300 V)
12x 0.14 mm² (Signal line)
26
18x 0.10 mm
1 mm ±0.05 mm (Signal line)
White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-
red/blue
2 cores to the pair
Six pairs around the filler to the core
Tinned copper braided shield
85 %
black RAL 9005
8.5 mm ±0.2 mm
5xD
10 x D
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1419911
Sensor/Actuator cable - SAC-12P- 5,6-35T/FR SH SCO - 1419911
Technical data
Cable
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
2000000
85 mm
10 m
3 m/s
10 m/s²
87 kg/km
PUR
PVC
PVC
Tin-plated Cu litz wires
≥ 10 MΩ*km (at 20 °C)
≤ 142 Ω/km (at 20 °C)
42 V AC
1500 V AC
Flexible cable conduit capable
According to DIN EN 60332-1-2
According to VW-1
According to EN 50267-2-1
in accordance with DIN EN 60811-2-1
hydrolysis and microbe resistant according to EN 50396
-30 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
DOTE 15571-58-1
Drawings
Schematic diagram
10
1
9
12
8
7
5
6
2
3 11
4

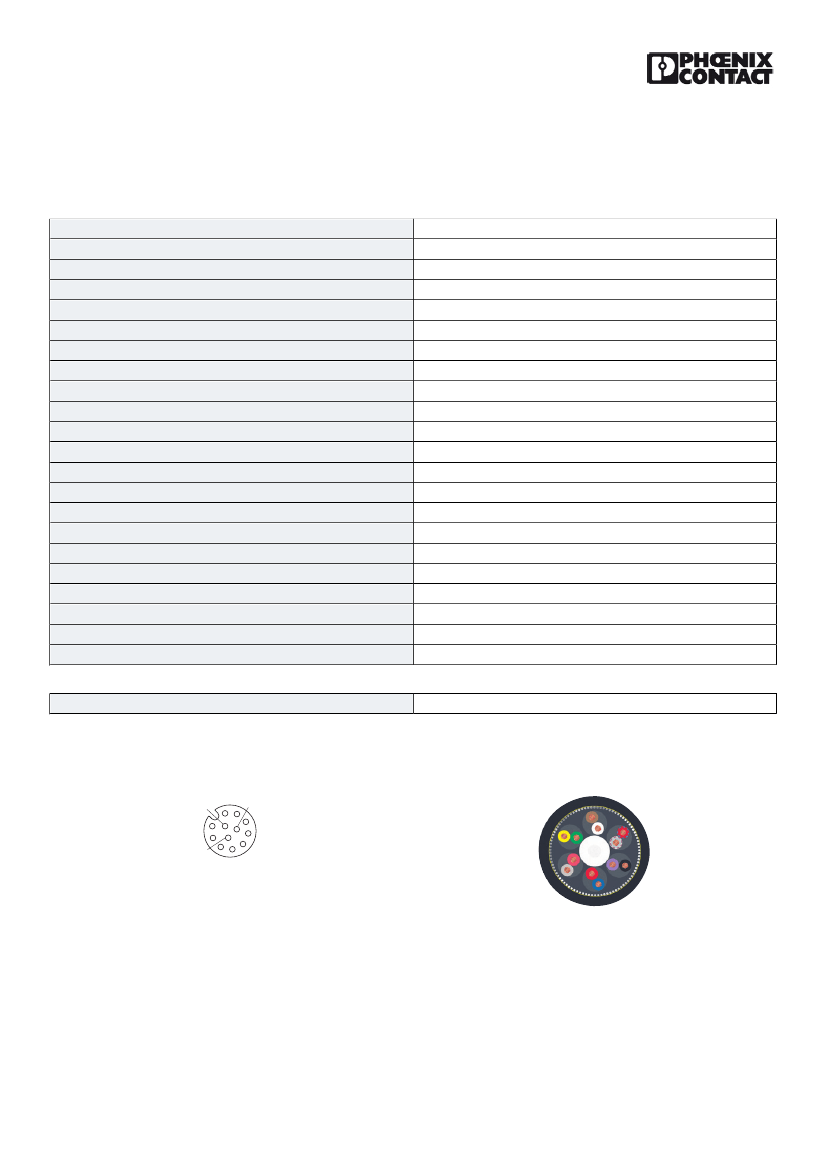

Cable cross section
Pin assignment M12, 12-pos., female side view
Black PUR/PVC twisted pair [35T]
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1419911
Sensor/Actuator cable - SAC-12P- 5,6-35T/FR SH SCO - 1419911
Circuit diagram
1
3
6
4
5
8
7
10
9
2
11
12
BN
WH
YE
GN
PK
GY
BK
VT
RD
BU
GY/PK
RD/BU
Dimensional drawing
14,8
14,1
36,6
Contact assignment of the M12 socket
Socket M12-SPEEDCON, angled, shielded
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
30
11/13/2016 Page 4 / 4
