COMPONENTS PRODUCT INFORMATION
NEW

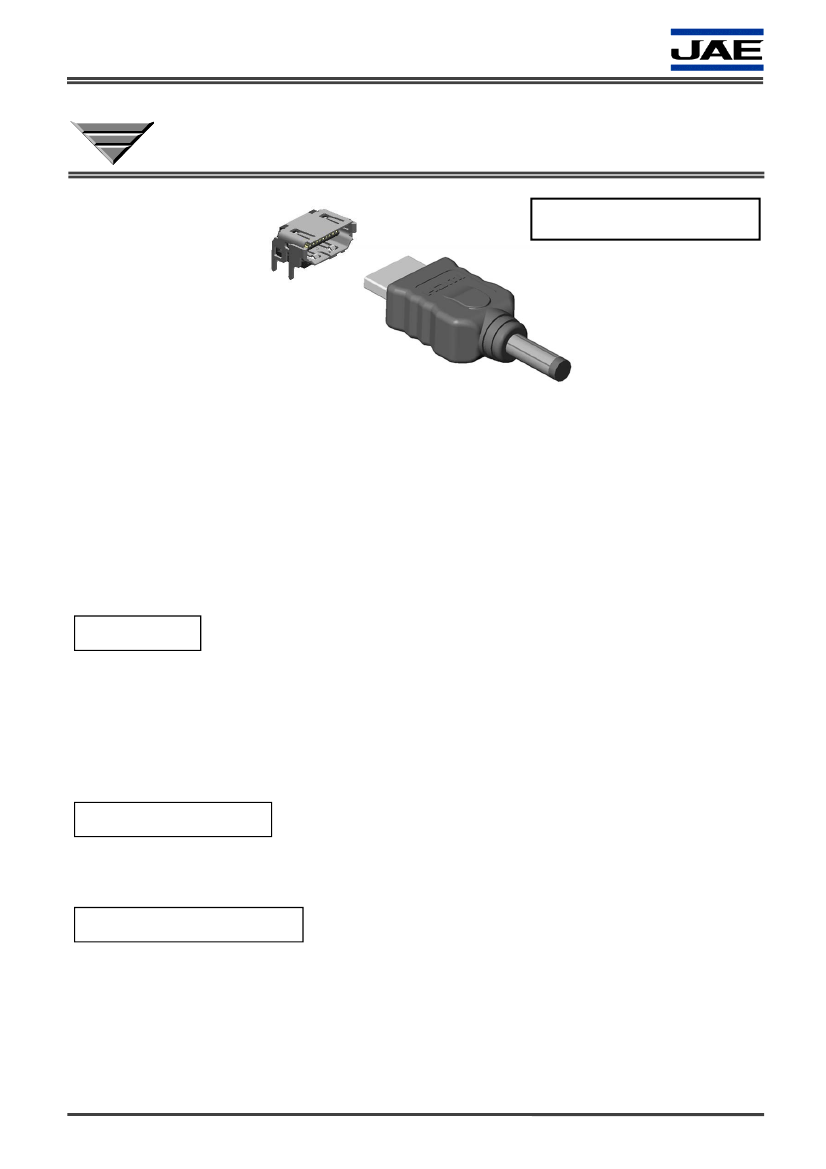

HDMI Standard Digital Interface Connector
CONNECTOR
MB-0121-3
February 2013
DC1 Series
RoHS Compliant
The market for digital consumer devices such as LCD TVs, BD players has been rapidly
growing along with the progress of digital high-definition television broadcasting.
The DC1 Series is a connector created specifically for use with the HDMI standard, a
digital interface standard for digital consumer devices.
*HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
Features
1.0mm
pitch, compact connector.
Impedance-matching
design for high-speed transmission.
Grounding
structure for excellent EMI control.
Friction
lock for easy insertion and removal of connector.
Applicable Markets
LCD television, LCD projector, Set-top box, BD player, etc.
General Specifications
No.
of Contacts: 19 pos.
Dielectric
Withstanding Voltage :
AC 500V rms
Operating
Temperature:
-20 Deg. C to +85 Deg. C
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
Rated
Voltage: 0.5A max.
Insulation
Resistance: 100M
min.
Impedance:
100
15%
1/8
MB-0121-3
Materials and Finishes
Receptacle
Component Material / Finish
Insulator
Contact
Shell
Heat resistant plastic
Copper alloy / Au plating over Ni
Copper alloy / Sn plating
Plug (for Cable Harness)
Component Material / Finish
Insulator
Contact
Shell
Hood
Heat resistant plastic
Copper alloy / Au plating over Ni
Copper alloy / Sn plating
PVC / Color: Black (UL94V-0)
Ordering Information
•Receptacle
DC1 R * 19 * A * E550
Note1
Series
Receptacle
Modification Code
No. of Contacts: 19 pos.
Terminal
J: SMT Right angle type
W: SMT Straight type
E550: Emboss product
550pcs. / reel
Modification Code
Plating
A: Au plating
Note 1
R550 is available for DC1RS19JA7 only.
•HDMI-HDMI Cable Harness
DC1P 019 S T3
Note 2
**** B
Series
No. of Contacts: 19 pos.
Wiring
S: Single Link
Color B: Black
Cable length (cm)
0150: 150cm
0200: 200cm
0300: 300cm
0500: 500cm
Applicable Cable
T3: Twinax cable 30AWG
T8: Twinax cable 28AWG
Note 2
Cable Specification
T3 is 150cm, 200cm, 300cm.
T8 is 500cm.
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
2/8
MB-0121-3
Right Angle Receptacle
•DC1RS19JAX
(SMT, with right angle flange)
