1.92
48.6
79.0±3.0
2007±76
0.235 REF
5.97
1.51
38.4
SCO
EN3C4FCX OVERMOLDED
4 CONDUCTOR CABLE , 20 AWG, BLACK
0.43
10.9
0.70
17.8
WIRING TABLE
PIN 2
PIN 3
EN3C4FCX
PIN 1
PIN 2
PIN 1
PIN4
PIN 3
PIN 4
WIRE COLOR
BLACK
WHITE
GREEN
RED
PIN 1
INDICATOR
CLOCK KEYWAY TO
6 O'CLOCK POSITION
PIN CALLOUT VIEW FROM
MATING SIDE OF CONNECTOR
SCALE=3:1

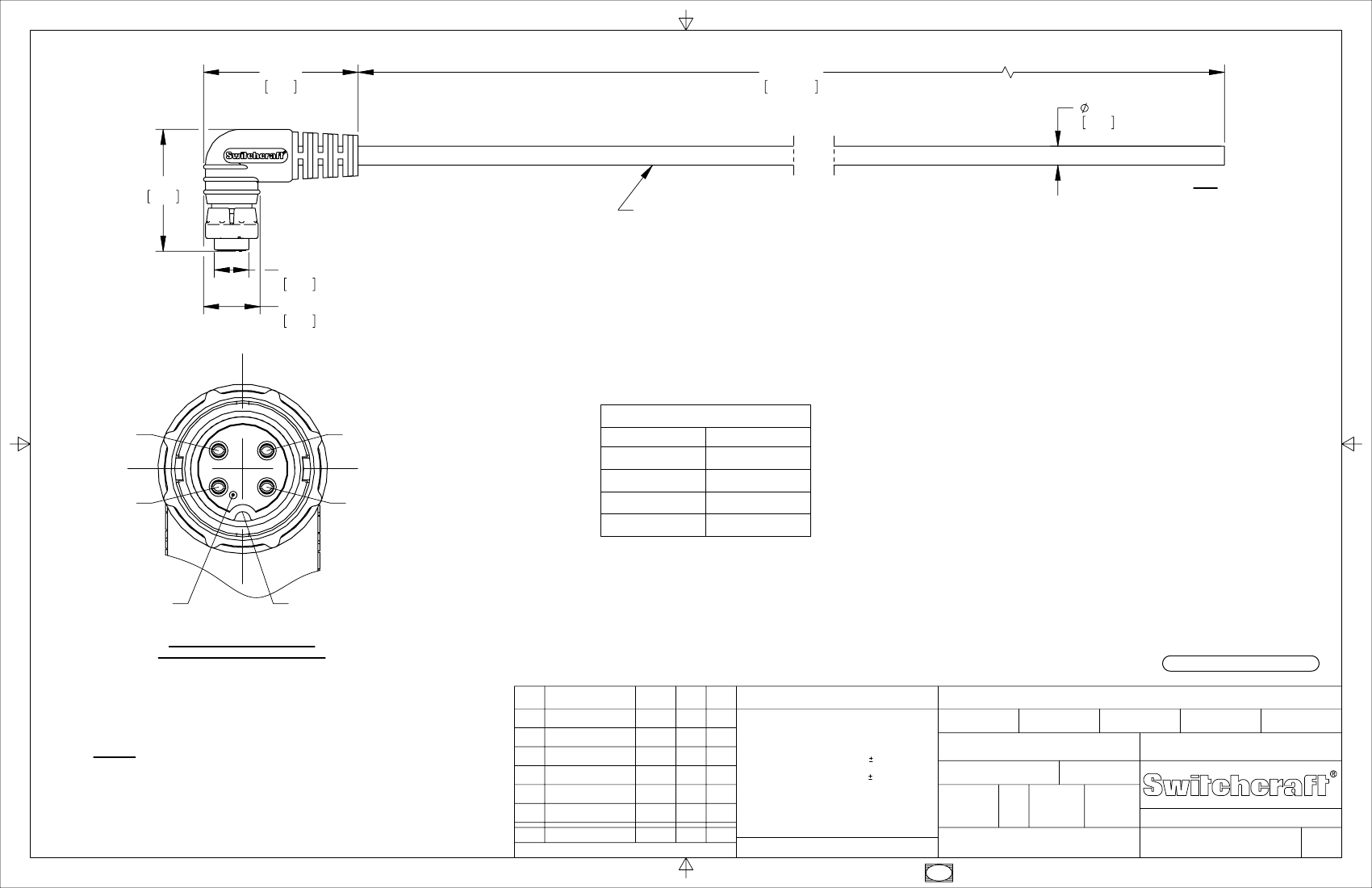

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
SIZE
FINISH
NOTES:
1. THIS PRODUCT IS RoHS COMPLIANT
A
REV
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
[0.5]
*
WIDTH
0.005 [0.13]
SPEC No.
FIRST USED ON
DATE DRAWN
*
*
*
MULT
*
LBS/M
MATERIAL
SPEC No.
*
TEMPER
*
*
*
*
SCALE
1:1
BY
27718
ECO NUMBER
06/13/16
DATE
ALM
BY
TJK
APVD
04/12/16
ALM
AB
04/19/16
CHKD
TJK
06/13/16
PART No.
APVD
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME
EN3C4FCX OVERMOLDED
CABLE ASSEMBLY TO SCO, RoHS
CARAEN3C4F07984
A
SolidWorks CAD File
B
