5202FE 008500 Overview

Multi-Conductor Cables 4 #16 PP FS FRPVC

5202FE 008500 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerBelden Wire & Cable
Product CategoryMulti-Conductor Cables
Length500 ft
Factory Pack Quantity1
Unit Weight23.500 lbs

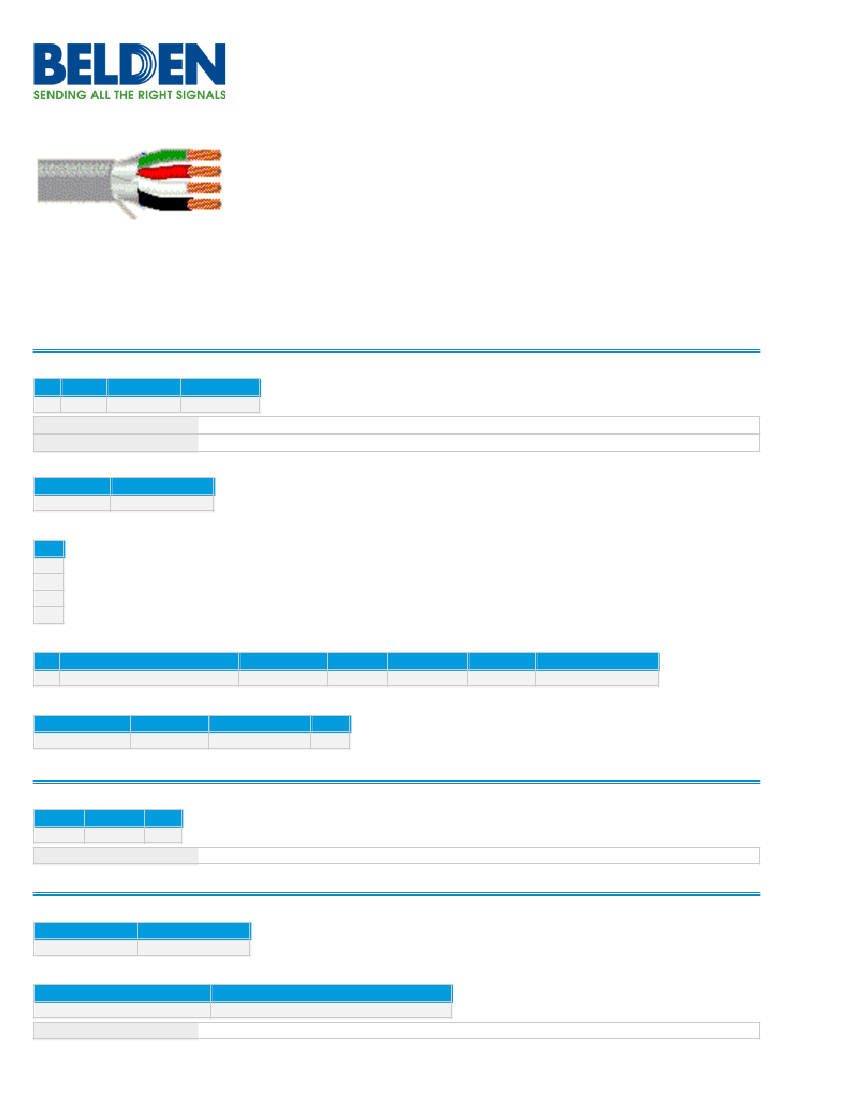

Part Number:
5202FE
Security & Sound, #16-4c, BC, Shielded, CMR
Product Description
Security & Sound Cable, Riser-CMR, 4-16 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding
16
19x29
Material
No. of Conductors
BC - Bare Copper 4
4
16 AWG
Conductor Count:
Conductor Size:
Insulation
Material
Nominal Wall Thickness
PP - Polypropylene 0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
Type
Material
Material Trade Name Coverage [%] Drainwire Material
100 %
Drainwire AWG Drainwire Construction n x D
Solid mm
Tape Aluminum Foil-Polyester Tape w/Shorting Fold Beldfoil®
Outer Jacket Material
Material
TC - Tinned Copper 24
Nominal Diameter Nominal Wall Thickness Ripcord
0.017 in
Yes
PVC - Polyvinyl Chloride 0.214 in
Construction and Dimensions
Cabling
Lay Length Lay Direction Twists
3 in
Print Legend:
Left Hand
4 twist/ft
NEW GENERATION(R) BY BELDEN 5202FE CMR 75C 4C16 SHIELDED (UL) E108998 OR C(UL) CMG----FT4 (2 FT., 7 DIGIT SEQUENTIAL) FEET
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
30.5 pF/ft
Shielding:
55 pF/ft
Foil(s) or Copper Tape(s)
14.4 Ohm/1000ft

5202FE 008500 Related Products

5202FE 008500 5202FE 0081000
Description Multi-Conductor Cables 4 #16 PP FS FRPVC Multi-Conductor Cables 4 #16 PP FS FRPVC
Product Attribute Attribute Value Attribute Value
Manufacturer Belden Wire & Cable Belden Wire & Cable
Product Category Multi-Conductor Cables Multi-Conductor Cables
Factory Pack Quantity 1 1
Unit Weight 23.500 lbs 46 lbs
