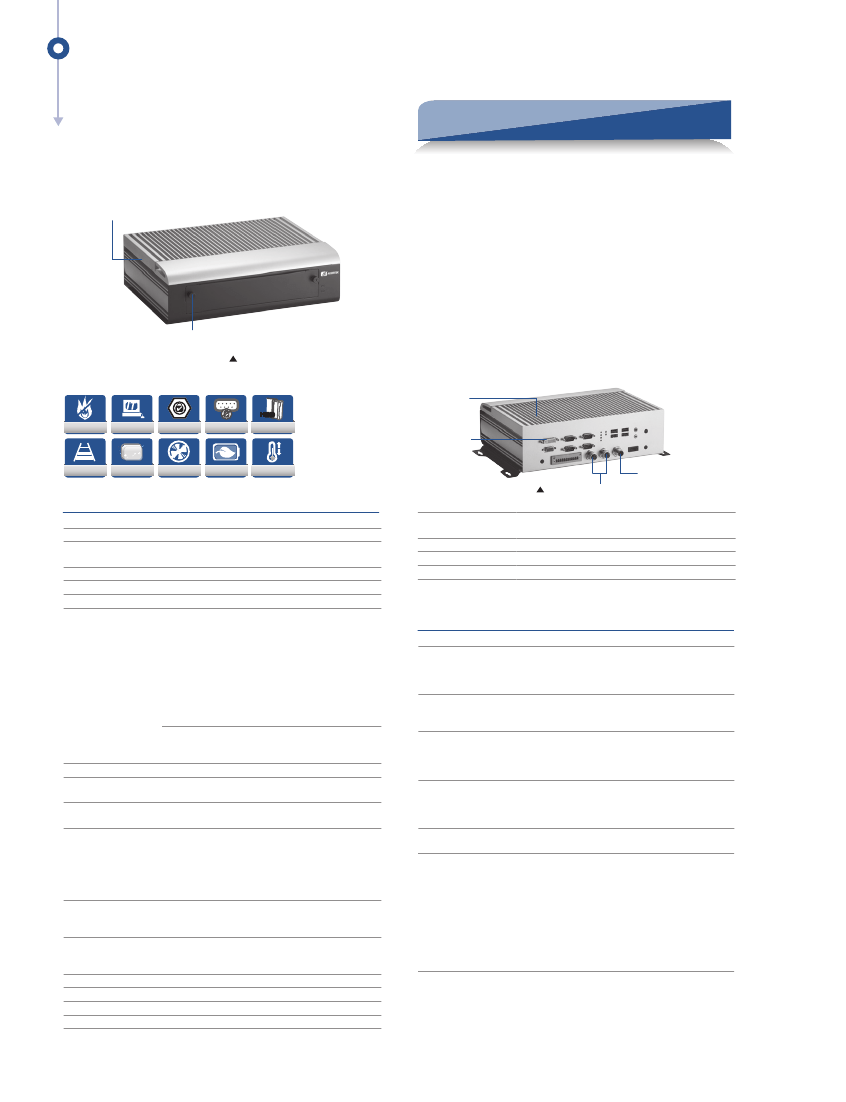

tBOX320-852-FL
Fanless Embedded System with Intel®
Core™ 2 Duo Processor 2.26 GHz and
Intel® GM45 for Railway PC
Intel® Core
TM
2 Duo SP9300 2.26 GHz
or Intel® Celeron® M 723
Features
●
EN50155, EN50121 certificates
●
Fanless with operation temperature range of -25°C ~ +55°C
●
Comply to fire protection of railway vehicles Europe standard
PrCEN TS 45545-2
●
Supports onboard Intel® Core™ 2 Duo SP9300 2.26 GHz or
Intel® Celeron® M 723 1.2 GHz processor
●
Intel® GM45 + ICH9M
●
4 isolated RS-232/422/485 ports
●
High performance DDR3-1333 2 GB DRAM
●
One 2.5" swappable SATA drive bay, 1 internal SATA drive bay
and one CompactFlash™
●
2 internal PCI Express Mini Card slots with 1 SIM slot
●
Lockable I/O interface and M12 LAN connector
Mini Card slots
Swappable HDD/CF
Front view
HDD
EN45545
EN60950
M12 Connector
Isolation
Swappable
Full feature I/O
EN50155
IP40
Fanless
Low Power
Ext. Temp
10 ~ 35V wide range DC input
Rear view
Rugged M12 Ethernet conn.
Specifications
Standard Color
Construction
CPU
System Memory
Chipset
BIOS
System I/O Outlet
Silver-Black
Aluminum extrusion and heavy-duty steel, IP40
Intel® Core™ 2 Duo SP9300 2.26 GHz processor or
Intel® Celeron® M 723 1.2 GHz processor
DDR3-1333 2 GB DRAM
Intel® GM45 + ICH9M
AMI
Rear Side
2 x GbE LAN (M12 D-coded)
4 x isolated RS-232/422/485
1 x isolated DI/DO (6-in/2-out)
4 x USB 2.0
2 x audio (mic-in/line-out)
1 x VGA
1 x DVI-D
1 x VDC power input (M12 A-coded)
1 x power switch
3 x antenna opening
Front Side
2 x 2.5” SATA drive trays
1 x CFast™ slot
1 x SIM card socket
255 levels, 1~255 sec.
2 x 2.5" SATA HDD drive bay
1 x CompactFlash
TM
2 x PCI Express Mini Card
1 x SIM card
1 x green LED for system power-on
1 x red LED for HDD active
1 x green LED for LAN1 link
1 x green/yellow LED for LAN1 speed
1 x green LED for LAN2 link
1 x green/yellow LED for LAN2 speed
DC 12~32V input with isolation support
Default rating: DC24V
M12 5-pin connector
6.7A @ 12V
3.4A @ 24V
2.5A @ 32V
-25°C ~ +55°C (77°F ~ 130°F) (with W.T. HDD)
-40°C ~ +80°C (-40°F ~ +176°F)
10% ~ 90%, non-condensing
2 Grms (5-500Hz, X, Y, Z directions)

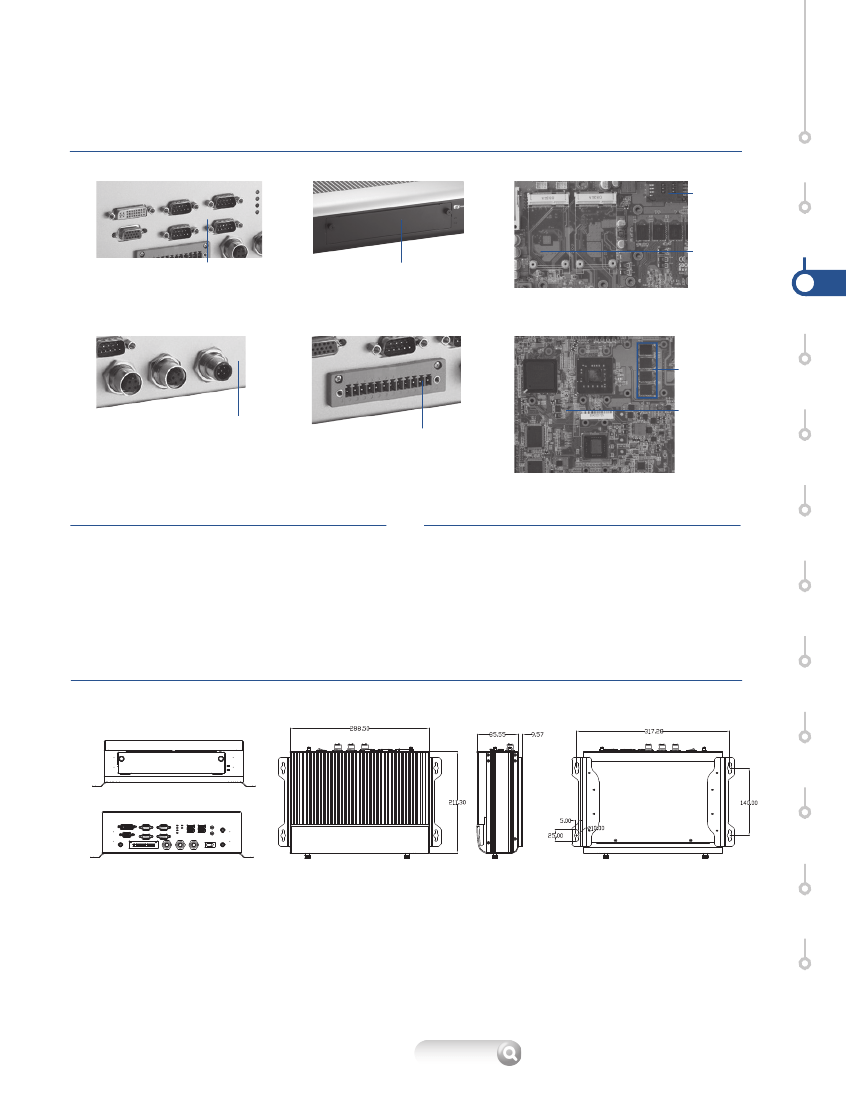

Dimensions
288 mm (11.33") (W) x 211 mm (8.3") (D)
x 85.7 mm (3.37") (H)
Weight (net/gross)
5.06 kg (11.15 lb)/6.5 kg (14.33 lb)
Certificate
CE, EN50155, EN50121, EN45545, EN60950 compliance
EOS Support
XPE, WinCE, Linux
*XPE: Windows® XP Embedded
Ordering Information
Standard
tBOX320-852-FL-2.26G-DC Fanless railway embedded system with Intel® Core™ 2 Duo
SP9300 2.26 GHz processor, 4 COM, 4 USB, CFast™, 2 HDD
support, onboard 2 GB DDR3-1333 DRAM and 4-pin GbE
LAN M12
tBOX320-852-FL-1.2G-DC Fanless railway embedded system with Intel® Celeron®
M 723 1.2 GHz processor, 4 COM, 4 USB, CFast™, 2 HDD
support, onboard 2 GB DRAM and 4-pin GbE LAN M12
tBOX320-852-FL-2.26G-
Fanless railway embedded system with Intel® Core™ 2 Duo
DC-G
SP9300 2.26 GHz processor, 4 COM, 4 USB, CFast™, 2 HDD
support, onboard 2 GB DDR3-1333 DRAM and 8-pin GbE
LAN M12 (optional lockable HDD cover)
tBOX320-852-FL-1.2G-
Fanless railway embedded system with Intel® Celeron®
DC-G
M 723 1.2 GHz processor, 4 COM, 4 USB, CFast™, 2 HDD
support, onboard 2 GB DDR3-1333 DRAM and 8-pin GbE
LAN M12 (optional lockable HDD cover)
Optional
40 GB or above
2.5" SATA HDD/SSD
CompactFlash™
1 GB or above
3G module
Wi-Fi module
Wi-Fi Bluetooth
GPS module
Graphic accelerator codec
M12 LAN cable
594N3202710E
M12 power cable
594B8120B30E
594N3202730E
M12 Gigabit LAN cable
*Specifications and certifications are based on options and may vary.
Watchdog Timer
Storage
Expansion Interface
System Indicator
Power Supply
Power Consumption
Operating Temperature
Storage Temperature
Humidity
Vibration Endurance
301
* All specifications and photos are subject to change without notice.
