THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
1830 ± 50mm
4
REV.
A
B
C
REVISION
DESCRIPTION
Changed Pin Out
Updated Specifications
Graphics and Notes Update
DATE
03-12-07
01-04-12
02-09-12
APPROVED
DP
LY
LY
4
CN1
2
1
3
CN2
7 ± 0.2
11.75MIN
LABEL
MINI TIE x2
NOTES:

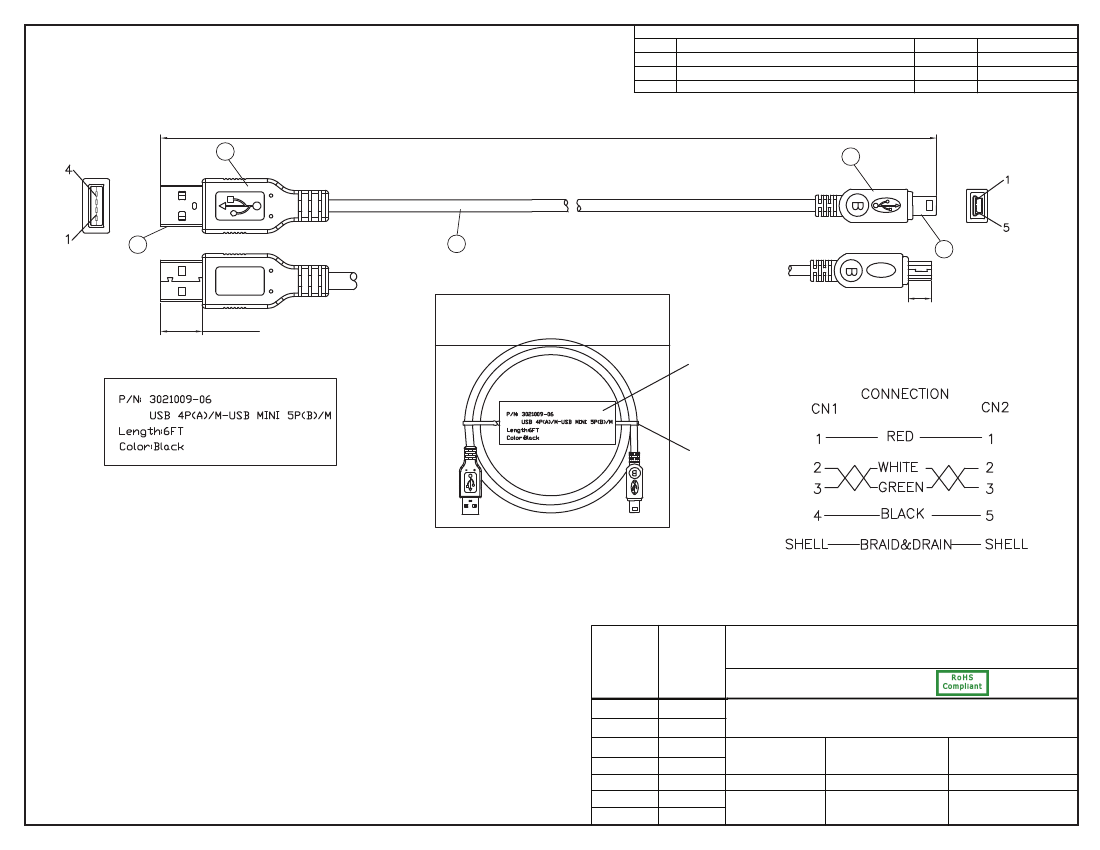

1. CABLE: UL2725 26/28AWG
28AWGx1P+26AWGx2C+ AEB(AL) 65%
OUTER JACKET: BLACK, OD: 4.2 ± 0.2mm
2. CONNECTOR: USB A TYPE MALE
INSULATOR: WHITE PBT
PIN G/F
NICKEL PLATED SHELL
3. CONNECTOR: MINI USB (B) 5P/M TYPE MALE
INSULATOR: BLACK PBT
PIN G/F
NICKEL PLATED SHELL
4. PVC MOLDED: COLOR V398 45P BLACK
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: DC400V 10M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 3 ohm MAX.
6. PACKING: 1PC/POLYBAG W/ LABEL
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3021009-06
USB 4P(A)/M - USB MINI 5P(B)/M
UNIT: mm
REV. C
Approved / Date
JJH / 01-26-07
Drawn / Date
B. Grubb
01-26-07
Checked / Date
01-26-07
