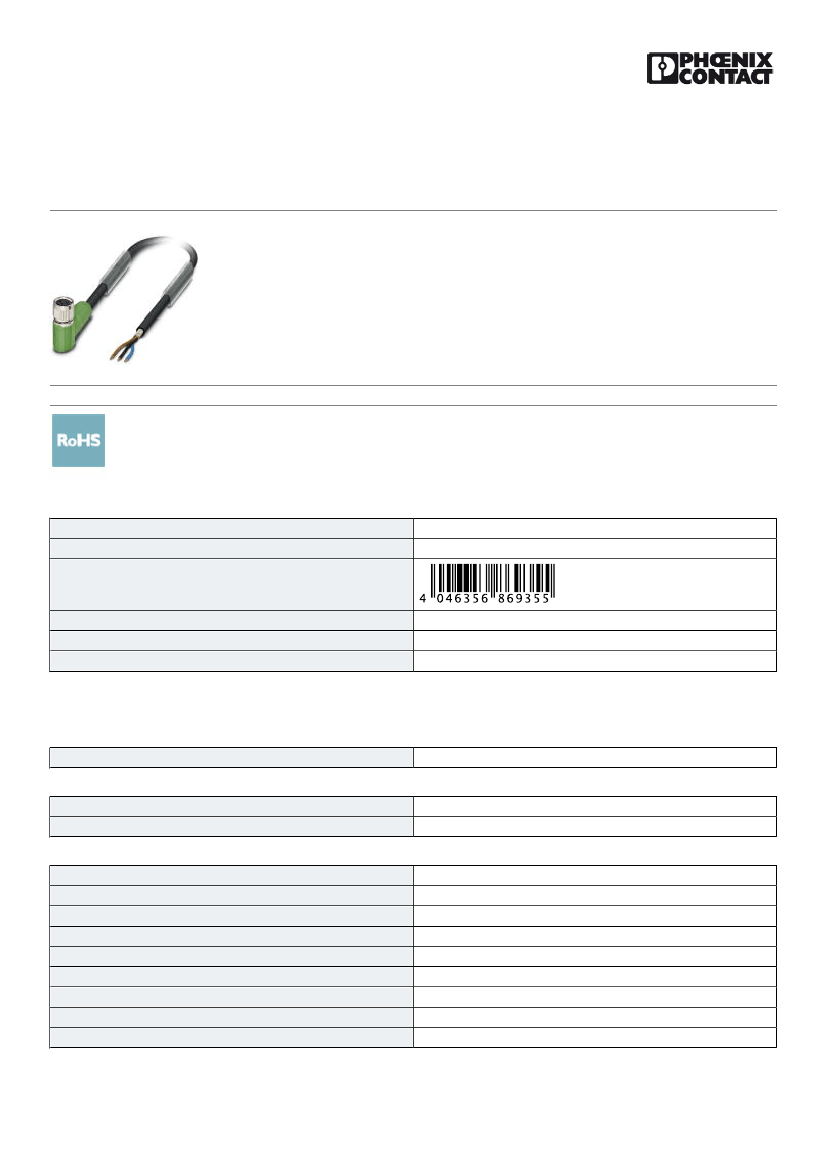

Sensor/Actuator cable - SAC-3P- 5,0-PVC/M 8FR SH VA - 1449246
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PVC, black-gray RAL 7021, shielded, free cable end, on Socket angled M8,
Cable length: 5 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356869355
85444290
Made to Order (non-returnable)
1 STK
25 STK
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Degree of protection
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
4A
60 V
3
≥ 100 MΩ
A - standard
No
II
3
≥ 100
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1449246
Sensor/Actuator cable - SAC-3P- 5,0-PVC/M 8FR SH VA - 1449246
Technical data
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Stainless steel
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Ambient temperature (operation)
PVC black
PVC
22
32x 0.10 mm
1.19 mm ±0.02 mm
≥ 0.23 mm (Core insulation)
≥ 0.65 mm (Outer cable sheath)
brown, blue, black
3 wires, twisted
Tinned copper braided shield
85 %
black RAL 9005
4.7 mm ±0.2 mm
33 kg/km
PVC
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
max. 78 Ω/km (at 20 °C)
300 V
3000 V
-30 °C ... 80 °C (cable, fixed installation)
-15 °C ... 80 °C (cable, flexible installation)
Drawings
11/13/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1449246
Sensor/Actuator cable - SAC-3P- 5,0-PVC/M 8FR SH VA - 1449246
Schematic diagram
4
Dimensional drawing
Ø10
M8
3
1
Ø8,4
Pin assignment M8 socket, 3-pos., view female
side
28
Socket M8 x 1, angled, shielded
Circuit diagram
Schematic diagram
1
4
3
BN
BK
BU
Contact assignment of M8 socket
Layout of connector pin assignments
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
19,2
11/13/2016 Page 3 / 3
