Sensor/Actuator cable - SAC-5P-15,0-PUR/M12FS SH VA BK - 1401825
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, free cable end, on Socket
straight M12, A-coded, Cable length: 15 m
As illustrated but with VA knurl
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
760.0 g
85444290
Poland
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
15 m
50 mm
Ambient conditions
Degree of protection
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
4A
60 V
5
≥ 100 MΩ
A - standard
04/15/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1401825
Sensor/Actuator cable - SAC-5P-15,0-PUR/M12FS SH VA BK - 1401825
Technical data
General
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Stainless steel
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
PUR halogen-free black
PUR
LiF9YC11Y
20549
5x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
Brown, white, blue, black, gray
5 wires around filler to the core
Tinned copper braided shield
85 %
black-gray RAL 7021
5.9 mm ±0.2 mm
29.5 mm
59 mm (up to +60°C)
4000000
59 mm
10 m
3 m/s
10 m/s²
04/15/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1401825
Sensor/Actuator cable - SAC-5P-15,0-PUR/M12FS SH VA BK - 1401825
Technical data
Cable
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage Core/Core
Special properties
Flame resistance
Halogen-free
Other resistance
Ambient temperature (operation)
48 kg/km
PUR
PP
Bare Cu litz wires
70 GΩ*km (at 20 °C)
max. 57 Ω/km (at 20 °C)
300 V (at 20 °C)
3000 V (at 20 °C)
Flexible cable conduit capable
in acc. with UL FT-2
in accordance with DIN VDE 0472 part 815
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
27061801
27279218
27279218
27279218
27060311
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31251501
31251501
31251501
31251501
04/15/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1401825
Sensor/Actuator cable - SAC-5P-15,0-PUR/M12FS SH VA BK - 1401825
Classifications
UNSPSC
UNSPSC 13.2
31251501

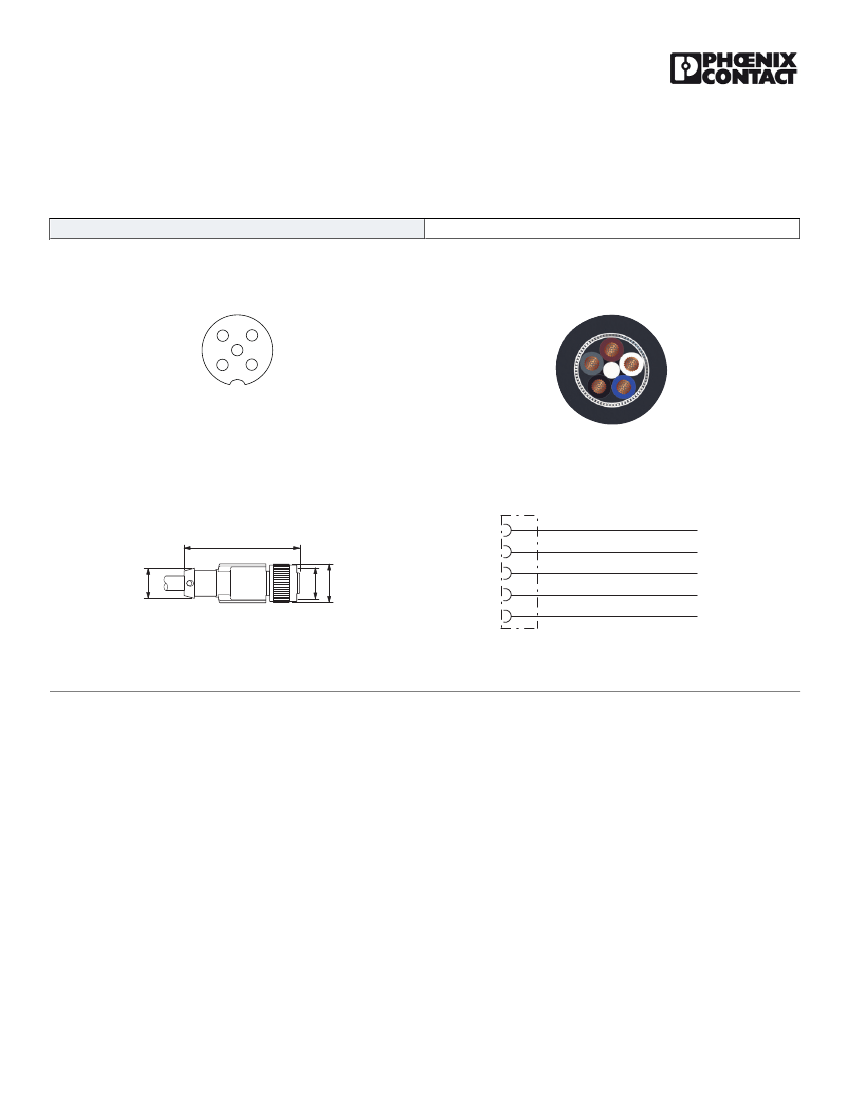

Drawings
Schematic diagram
3
5
4
Cable cross section
2
1
Pin assignment M12 socket, 5-pos.
PUR halogen-free black [PUR]
Dimensional drawing
Circuit diagram
1
44,5
2
BN
WH
BK
BU
GN/YE
Ø14,8
M12
Ø12
4
3
5
M12 x 1 socket, straight, shielded
Contact assignment of the M12 plug and the M12 socket
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/15/2016 Page 4 / 4
