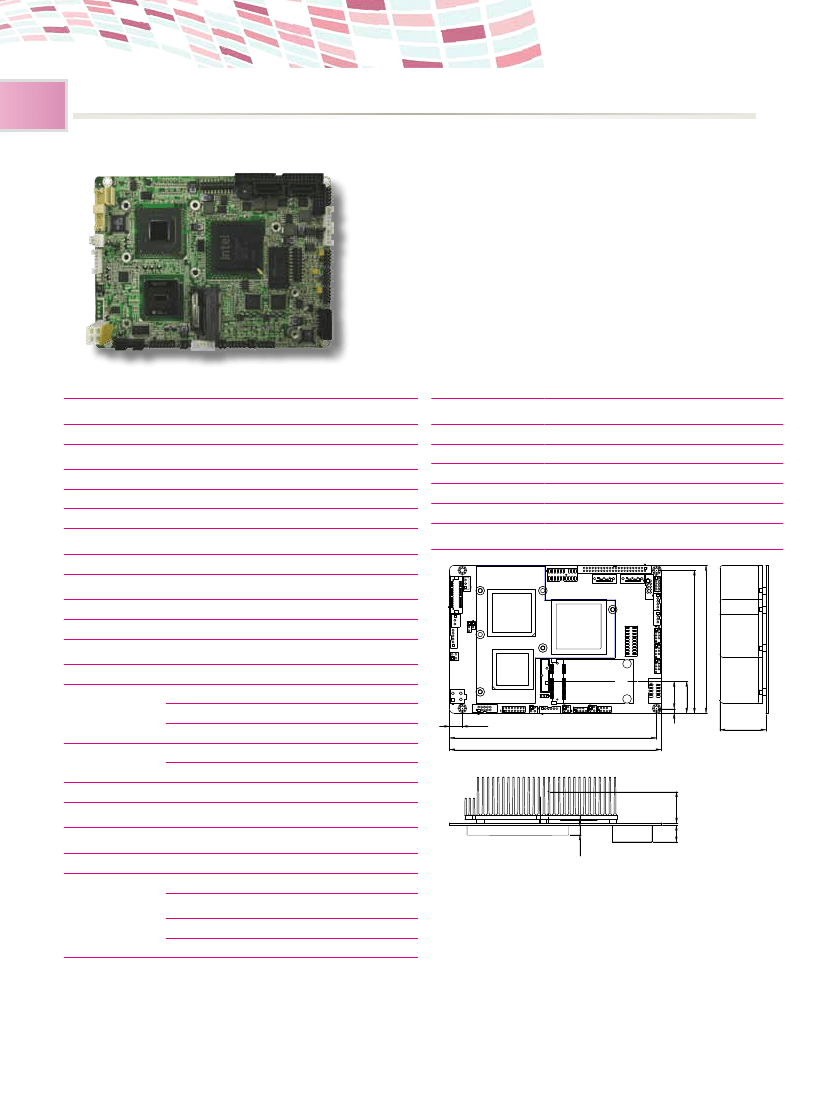

EmCORE-i2709
Intel® Atom™ N270 3.5" Compact Board
Features
•
•
•
•
•
•
Fanless Design
Soldered Onboard Intel® Atom™ N270 Processor
Dual Gigabit Ethernet Ports
Dual Channels 24-bit LVDS, TV-out, and Analog RGB
Dual Independent Displays
Extended Operating Temp.: -20 ~ 70
o
C

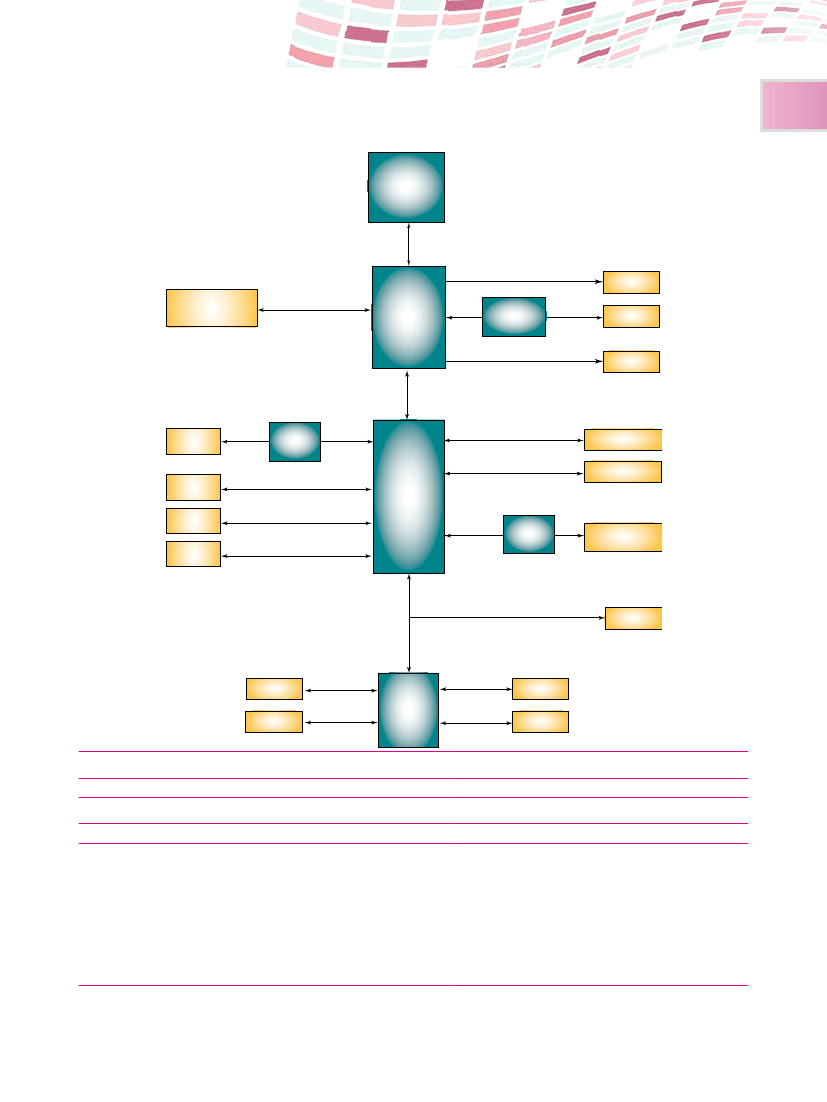

System
CPU
Memory
Chipset
BIOS
Watchdog Timer
Intel
®
Atom™ N270 1.6GHz processor with 533MHz FSB
1 x 200-pin DDR2 SO-DIMM socket, supporting
400/533MHz SDRAM up to 2GB
Intel
®
945GSE + ICH7M
AMI PnP Flash BIOS
1~255 levels reset
Mechanical & Environmental
Power Requirement
Power Consumption
Operating Temp.
Dimension (L x W)
+12V input
1.12A@+12V (Typical)
-20 ~ 70°C (4 ~ 158°F)
Operating Humidity
10 ~ 95% @ 70ºC (non-condensing)
146 x 102 mm (5.7" x 4")
I/O
I/O Chip
Serial Port
Parallel Port
USB Port
KB/MS
Digital I/O
Expansion Bus
Winbond W83627HG
2 x COM ports (1 x RS-232, 1 x RS-232/422/485
selectable)
SPP/EPP/ECP mode selectable
6 x USB 2.0 ports
6-pin wafer connector for keyboard and mouse
(PS/2 standard via Y-cable)
8-bit programmable Digital Input/Output
1 x Mini PCI socket
Dimensions
2
1
1
1
1
1
2
1
1
1
1
1 x LPC (Low Pin Count) connector
8.84
142.77
146.00
Storage
Ethernet Chipset
Audio Interface
1 x Ultra ATA, supporting 2 IDE devices
2 x Serial ATA ports with 150MB/s HDD transfer rate
2 x Realtek RTL8111 PCIe GbE controllers
Realtek ALC655 6 Channel AC97 Audio Codec, Mic-in/
Line-in/Line-out
Display
Graphics Chipset
Integrated Intel
®
Graphics Media Accelerator 950
Analog RGB: support resolution up to 2048 x 1536 @60Hz
LCD: Dual Channels 24-bit LVDS, resolution up to 1600 x
1200
TV-out: NTSC/PAL, resolution up to 1024 x 768
Support Dual Independent Displays
SO-DIMM
6.50
Graphics Interface
100
1
1 x Mini-card socket
21.97
3.17
1
1
98.78
101.96
6 4
2 10
9
1
1
1
1
3
31.80
Battery
21.60
MIni PCI
11.30
Unit: mm
All specifications are subject to change without notice.
