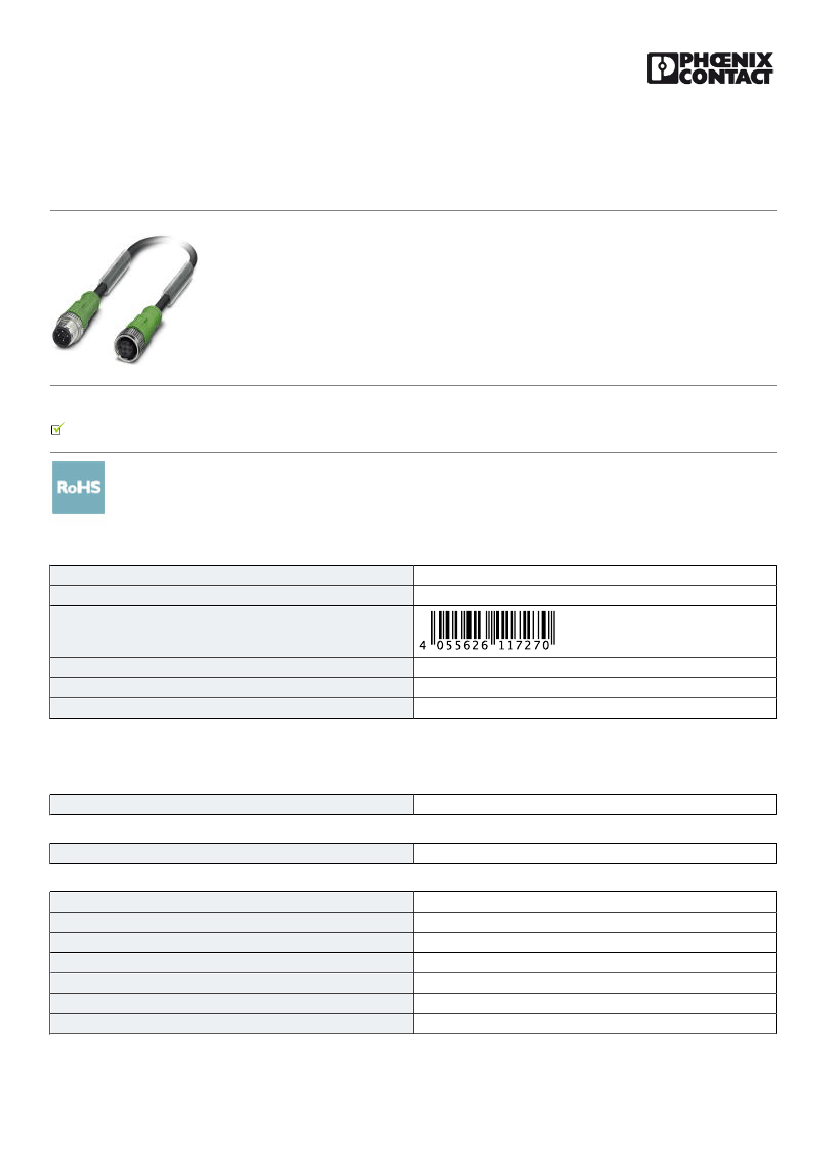

Sensor/Actuator cable - SAC-4P-M12MS/ 25,0-PVC/M12FS - 1417515
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 4-position, PVC, black RAL 9005, Plug straight M12, A-coded, on Socket straight M12,
A-coded, Cable length: 25 m
Why buy this product
Easy and safe: 100% electrically tested plug-in components
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626117270
85444290
Made to Order (non-returnable)
1 STK
5 STK
Technical data
Dimensions
Length of cable
25 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
4A
250 V
4
≥ 10 MΩ
A - standard
M12 connector IEC 61076-2-101
No
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1417515
Sensor/Actuator cable - SAC-4P-M12MS/ 25,0-PVC/M12FS - 1417515
Technical data
General
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Unwired
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
PVC black
PVC
LiYY
2464 / 1729 (80°C/300 V)
4x 0.34 mm² (Signal line)
22
19x 0.15 mm
1.26 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
brown, white, blue, black
4 wires, twisted
black RAL 9005
≥ 0.76 mm
4.7 mm ±0.15 mm
5xD
10 x D
40 kg/km
PVC
PVC
Bare Cu litz wires
≥ 200 MΩ*km (at 20 °C)
max. 57 Ω/km (at 20 °C)
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1417515
Sensor/Actuator cable - SAC-4P-M12MS/ 25,0-PVC/M12FS - 1417515
Technical data
Cable
Nominal voltage, cable
Test voltage, cable
Ambient temperature (operation)
≤ 300 V
≥ 3000 V
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

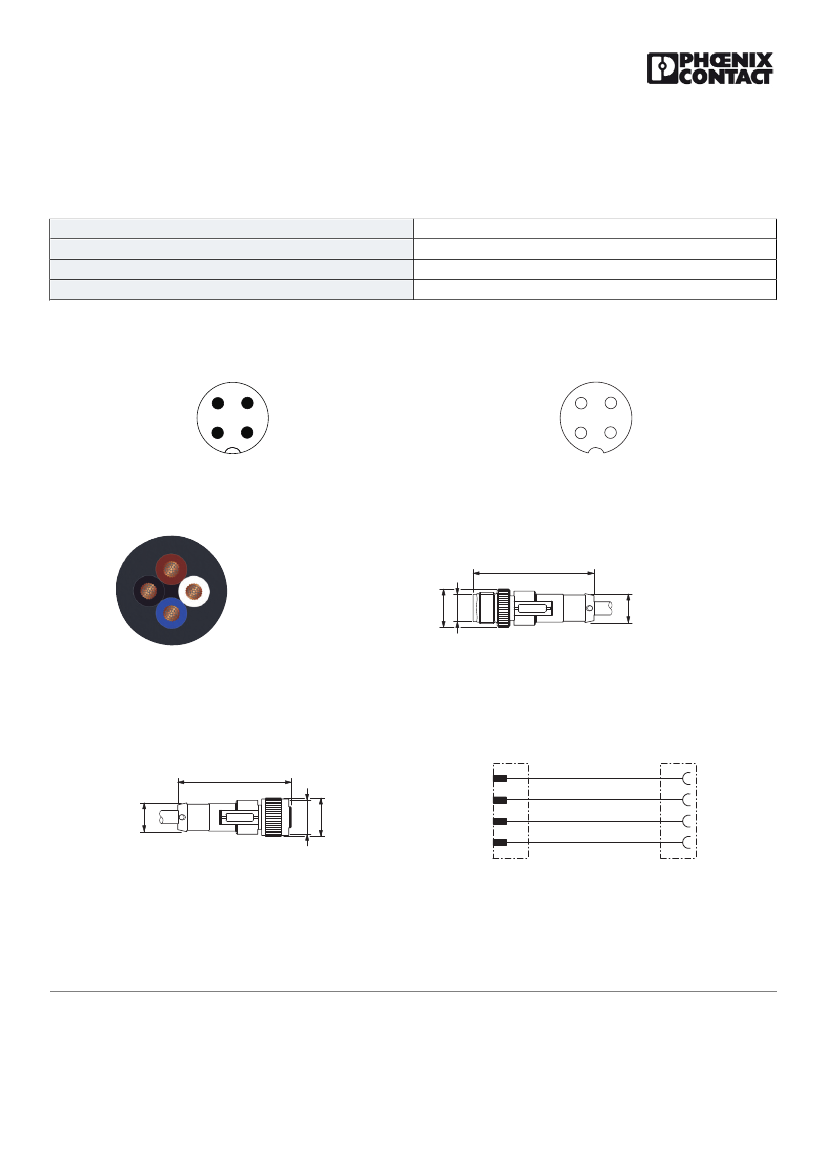

Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
2
2
1
Pin assignment M12 plug, 4-pos., A-coded, view plug side
Pin assignment M12 socket, 4-pos., A-coded, view female side
Cable cross section
Dimensional drawing
46,8
Ø14,8
PVC black [PVC]
M12 x 1 plug, straight
Dimensional drawing
M12
Circuit diagram
44
1
4
Ø11
1
4
3
2
Ø14,8
Ø11
M12
3
2
M12 x 1 socket, straight
Contact assignment of the M12 plug and the M12 socket
Approvals
Approvals
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1417515
Sensor/Actuator cable - SAC-4P-M12MS/ 25,0-PVC/M12FS - 1417515
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cULus Listed
