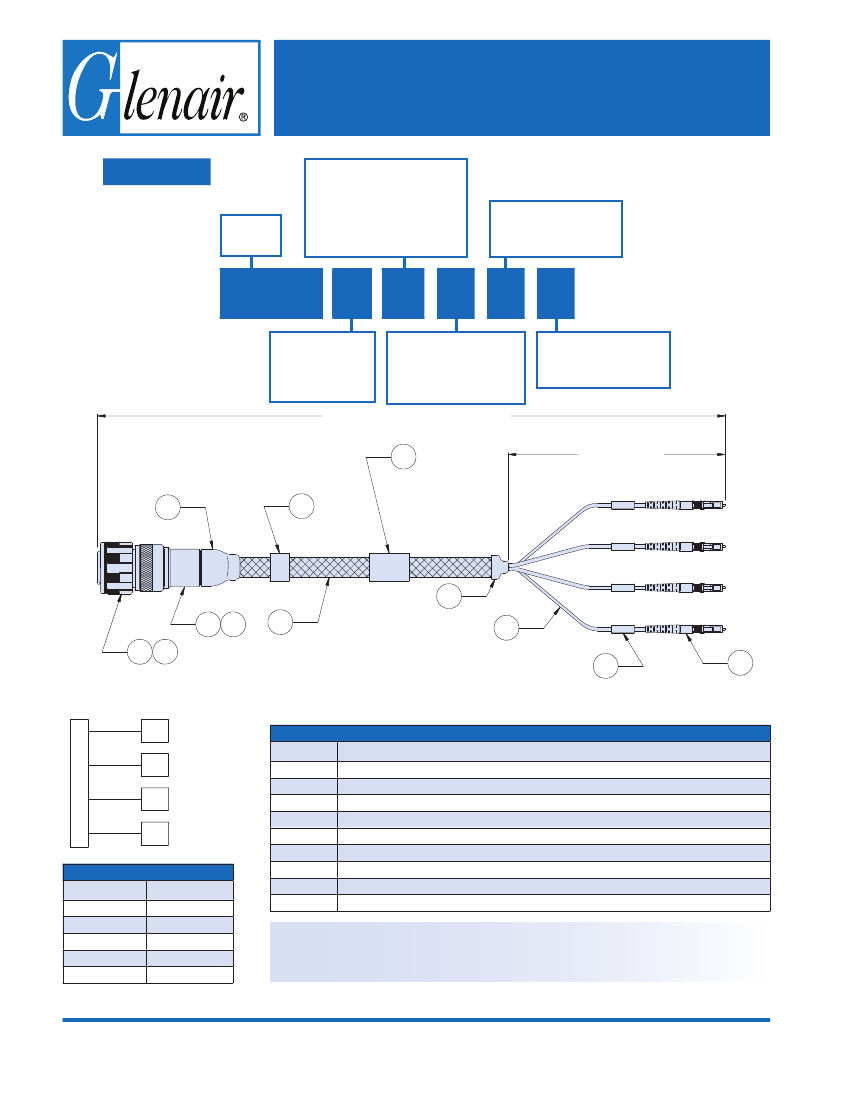

FA04395
Fiber Optic Test Cable for 050-207 Media Converter
GHD Connector Interface
How To Order
Basic
P/N
Material/Finish
M
= Al/Nickel
MT
= Al/Nickel PTFE
NF
= Al/Olive Drab Cadmium
Other finishes available,
consult factory
F/O Test Connector
LC
= LC Connector
Other options available
FA04395
-
50
-
MT
-
72
-
LC
-
N
Fiber Type
09
= Singlemode
50
= 50/125
62
= 62.5/125
Cable Length
In Inches
72
= 72 Inches standard
Other lengths available
Keyway Polarization
N
= Normal
Other options available
Length (see part number development)
10
GLENAIR P/N
MFR 06324
D/C YYWW
12.00" +1.00"
-0.00"
8
10
LC-1
LC-1
LC-2
LC-3
LC-4
3
LC-2
J3
J3
8
5
1
2
7
6
4
9
LC-3
LC-4
Connection Diagram
J3
1
2
3
4
LC-1
LC-2
LC-3
LC-4
Standard Tolerance
Length
Tolerance
+1 in -0
+3 in -0
+6 in -0
+1 ft -0
+2 ft -0
Callout
1, 2
3
4
5
6
7
8
9
10
Diagram Key
Description
180-122 Fiber Optic plug connector / four 181-056 pin termini
Four single-channel LC fiber optic connectors (other options available, consult factory)
Simplex high-temperature fiber
440HS030 Glenair Backshell
Nomex braid
Band-Master ATS® shield termination strap
Heat shrink
Heat shrink
ID marker (marked with Glenair name, CAGE code and date code as indicated)
5 in – 2 ft
2 to 10 ft
10 to 50 ft
50 to 100 ft
100 ft and up
© 2015 Glenair, Inc.
Notes
1. Optical performance: insertion loss to be less than 1.5 dB when measured at 850 nm
wavelength for Multimode and 1310 nm wavelength for Singlemode.
U.S. CAGE Code 06324
Printed in U.S.A.
