9257 Reduced Size I/O Connector
GENERAL DESCRIPTION

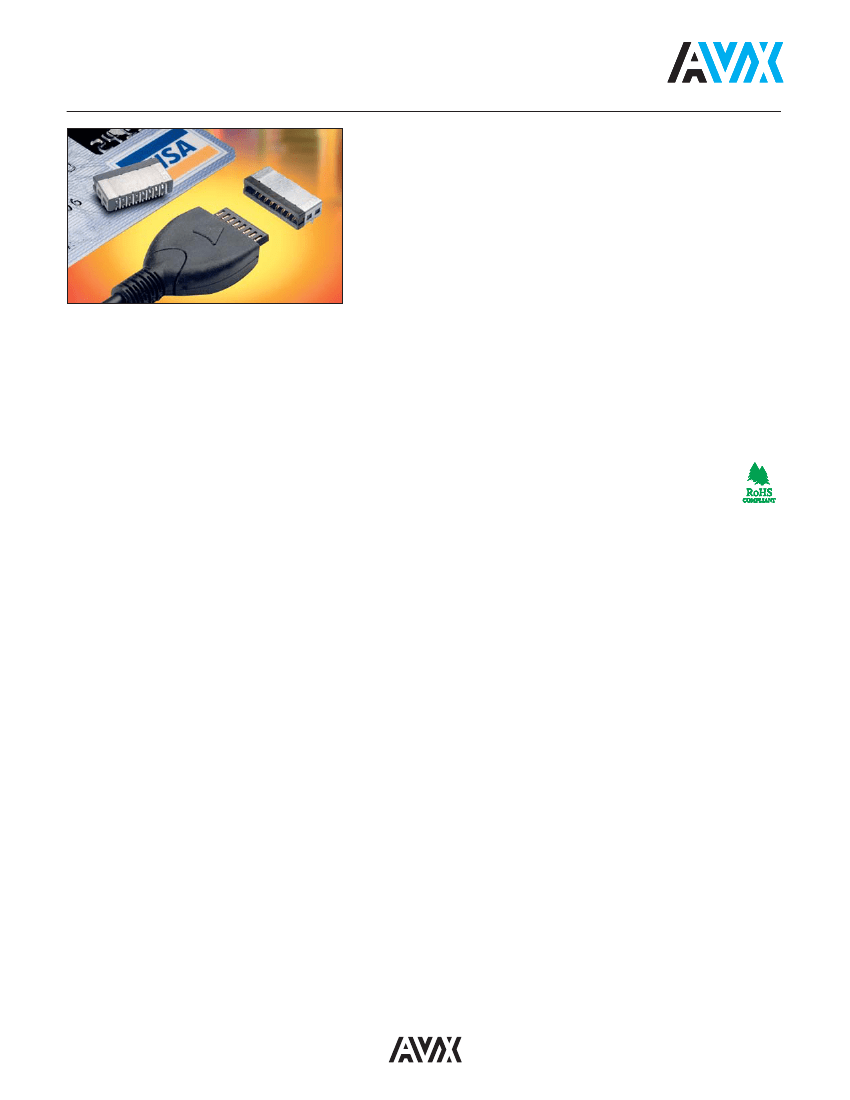

An I/O interconnect system designed for portable equipment.
AVX offers this plug and socket reduced size system as a standard product.
The fixed SMT socket is designed to be mounted on a PCB and housed within
a portable device. The plug is designed for cable termination with options of
single and double sided contacts and customizing the overmold cover or parts
can be supplied as connector only for sub contract termination. The socket
connector houses 16 contacts in two rows on 1.25mm pitch with a rating of
1 amp per contact. Both connectors are RoHS compliant.
APPLICATIONS
Suitable applications include:
• Cellular Phones
• Handheld Devices
• Industrial Modules
• Medical Electronics
KEY FEATURES AND BENEFITS
•
•
•
•
•
•
•
No latching is required due to the click design of the contacts.
Optional customization of the overmold cover.
Options of single row (8 way) or dual row (16 way) plug connector.
Compact size to optimize PCB real estate.
Metal outer cover provides integrated PCB location and solder tab.
Positive alignment and orientation of the plug and socket.
5K mating cycles and 1 amp rated.
39
9257 Reduced Size I/O Connector

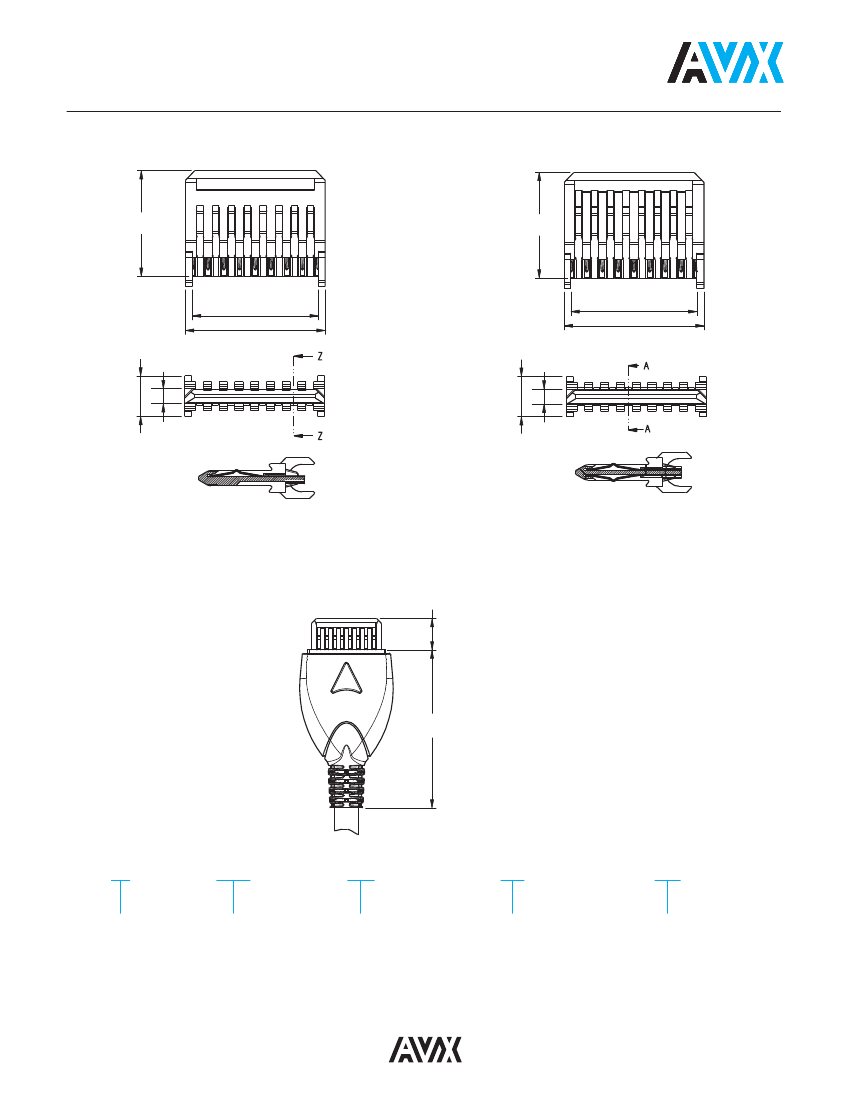

Single Sided 8 Way I/O Plug Connector
Dual Sided 16 Way I/O Plug Connector
8.40
(0.331)
8.40
(0.331)
10.0 (0.394)
11.1 (0.437)
3.20
(0.126)
3.20
(0.126)
10.0 (0.394)
11.1 (0.437)
1.20
(0.047)
1.20
(0.047)
SECTION Z-Z
SECTION A-A
Suggested Overmolding for Plug Connector
5.00
(0.197)
MIN
OVERMOLDING MUST BE
CLEAR OF 5.00 (0.197) MIN.
TO ENSURE FULL MATING
WITH SOCKET CONNECTOR
25.08*
(0.987)
* Variable dimension to
suit customer design
and application.
HOW TO ORDER
10
9257
016
001
003
Prefix
10 = Plug Connector
Series
No of Ways
016 = 16 way dual sided
008 = 8 way single sided
Contact
001 = Solder Bucket
Plating Option
003 = 0.8µm Selective Gold,
Tin Tail
Notes:
1. All dimensions are for reference only unless toleranced.
2. For full product specification refer to AVX spec 201-01-089.
3. Parts packed in tube with 50 parts per tube.
40
9257 Reduced Size I/O Connector

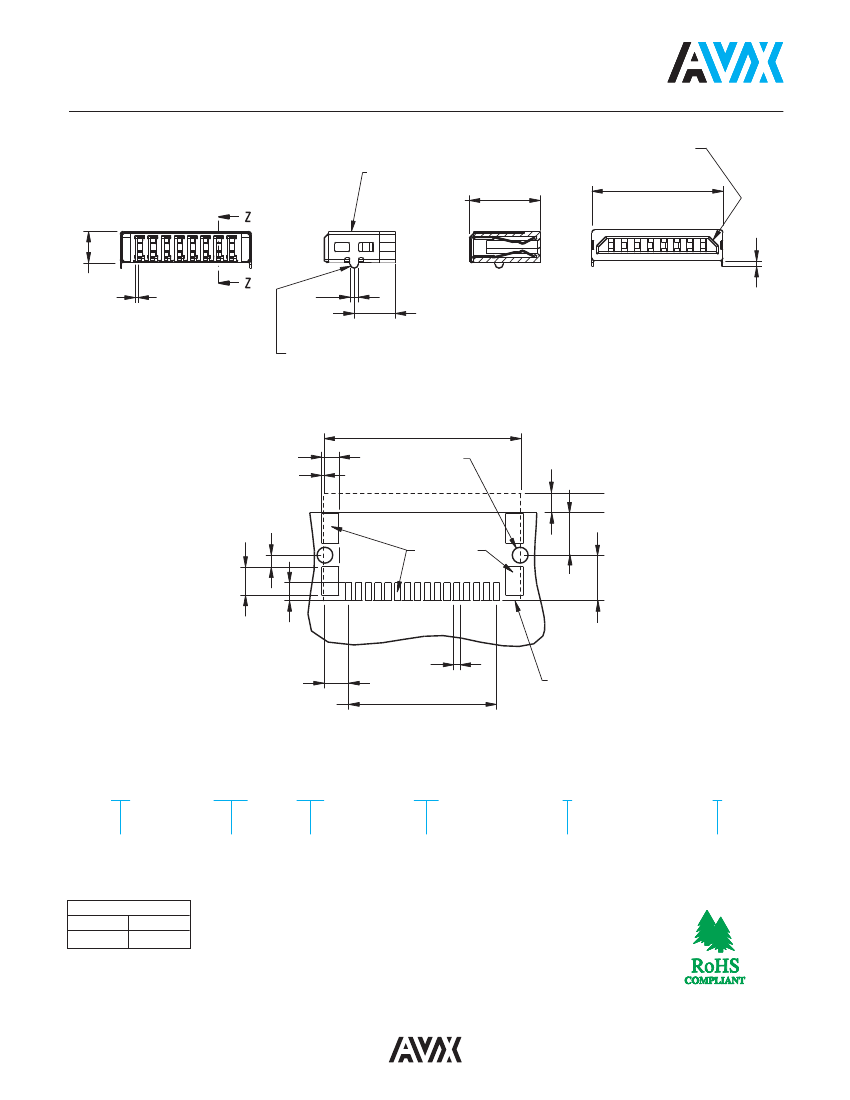

16 Position I/O Socket
SOLDER BRACKET/SHIELD
12.50 (0.492)
6.75 (0.266)
0.51
(0.020)
TYP
POLARIZATION
CHAMFER
3.00
(0.118)
SECTION Z - Z
0.25 (0.010) TYP
REAR VIEW
0.80
(0.031)
TYP
END VIEW
LOCATION PEGS
FRONT VIEW
3.90
(0.154)
PCB Layout
12.50 (0.492)
1.10 (0.043)
0.15 (0.006)
Ø 1.00 (0.039)
LOCATION HOLES
(2 POSITIONS)
1.20
(0.047)
SMT PADS
2.70
(0.106)
1.80
1.15
(0.071) (0.045)
TYP
TYP
1.56 (0.061)
15 PITCHES
@ 0.625 = 9.38
(0.025 = 0.369)
0.40
(0.016)
TYP
2.90
(0.114)
CONNECTOR
OUTLINE
HOW TO ORDER
20
9257
016
001
01
3
Prefix
20 = Socket Connector
Series
No of
Ways
16 = 016
Contacts
001 = SMT Termination
Solder Bracket
01 = Solder Bracket
with location pegs
Plating Option
3 = 0.8µm Selective Gold,
Tin Tail
Packing Details
Reel Qty.
1100
Pack Qty.
5500
Notes:
1. 16 Way I/O Socket.
2. For full product specification refer to AVX spec 201-01-089.
3. General tolerance ±0.20 (0.008) unless otherwise stated.
4. SMT feet within 0.13 (0.005) coplanarity.
41
