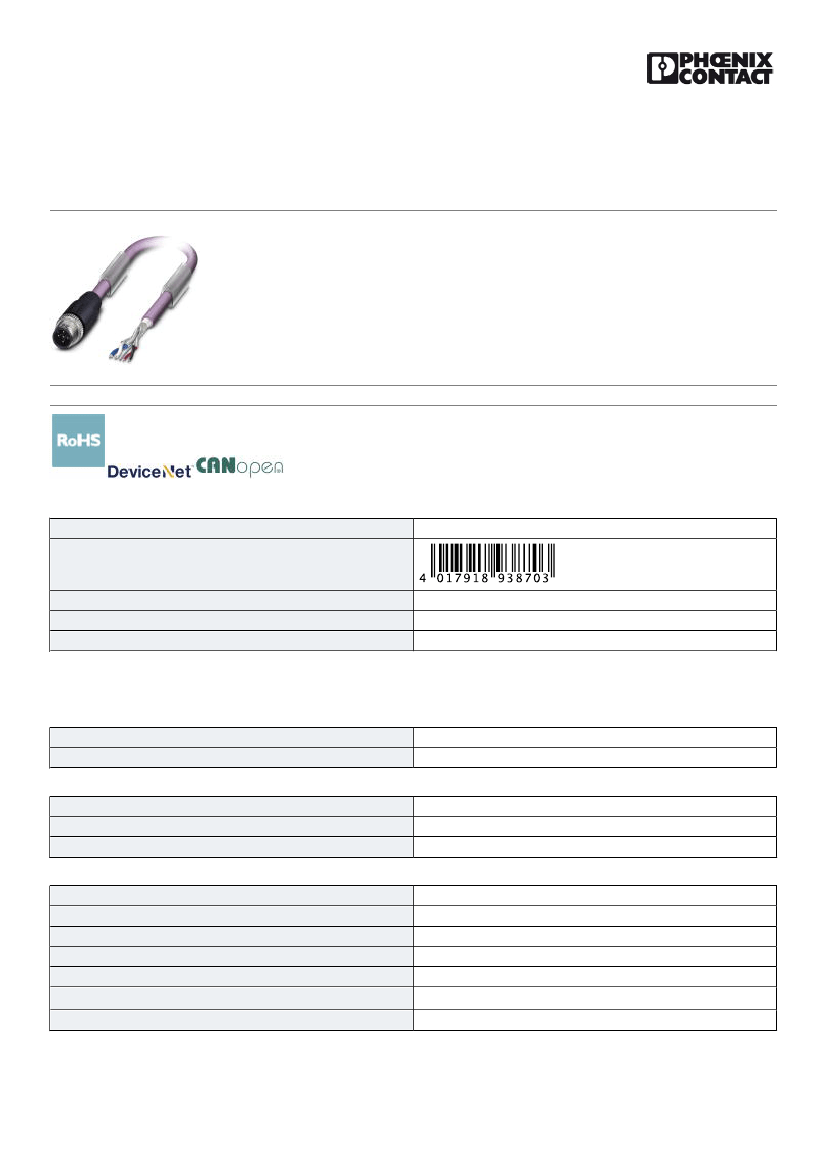

Bus system cable - SAC-5P-M12MS/ 2,5-920 - 1519367
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, CANopen , DeviceNet™, 5-position, PUR halogen-free, violet RAL 4001, shielded, Plug
straight M12, A-coded, on free cable end, Cable length: 2.5 m
®
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918938703
85444290
Made to Order (non-returnable)
1 STK
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
2.5 m
50 mm
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Signal type/category
4A
60 V
5
≥ 100 MΩ
A - standard
CANopen
®
DeviceNet™
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1519367
Bus system cable - SAC-5P-M12MS/ 2,5-920 - 1519367
Technical data
General
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
No
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Cable structure
Conductor cross section
CAN Bus/DeviceNet
920
21198 (80°C/300 V)
2xAWG24/19+2xAWG22/19
2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
24
22
19x 0.13 mm
19x 0.15 mm
1.95 mm ±0.05 mm (Data cable)
1.4 mm ±0.05 mm (Power supply)
Red-black, blue-white
2 cores to the pair
Plastic-coated aluminum foil, aluminum side outside
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
80 %
violet RAL 4001
6.7 mm ±0,3 mm
10 x D
5000000
70 mm
4.5 m
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1519367
Bus system cable - SAC-5P-M12MS/ 2,5-920 - 1519367
Technical data
Cable
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Cable capacity
Wave impedance
Wave attenuation
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
3 m/s
3 m/s²
90 kg/km
PUR
Foamed PE (Data cable)
PE (Power supply)
Tin-plated Cu litz wires
≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
≤ 90.9 Ω/km (Data cable)
≤ 57.4 Ω/km (Power supply)
nom. 40 pF/m (Data cable)
120 Ω ±10 % (with 1 MHz)
≥ 0.0229 dB/m (with 1 MHz)
≤ 300 V (Peak value, not for high-power applications)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
UL 1581, Sec. 1060 (FT-1)
IEC 60332-1
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-free
Other resistance
Ambient temperature (operation)
in accordance with DIN VDE 0472 part 815
According to IEC 60754-1
Low adhesion
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

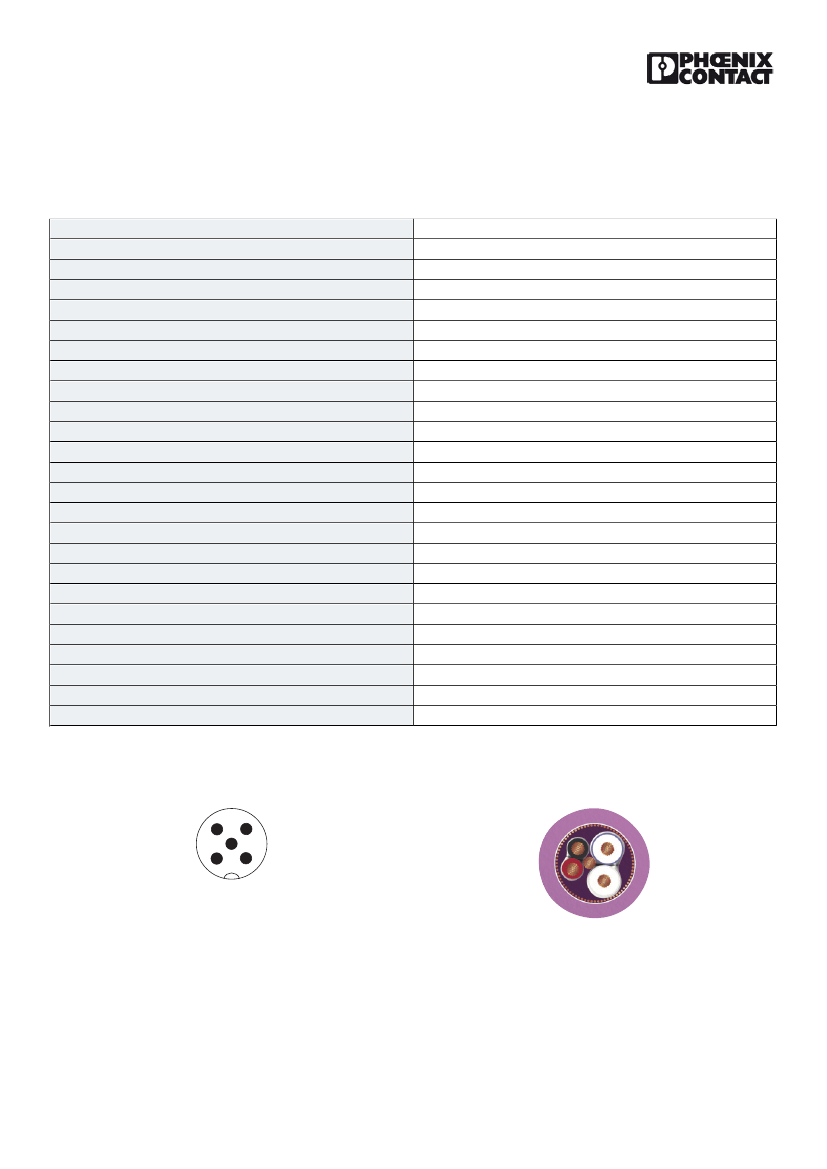

Drawings
Schematic diagram
4
5
3
Cable cross section
1
2
Pin assignment M12 male connector, 5-pos., A-coded, male side
CAN Bus/DeviceNet [920]
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1519367
Bus system cable - SAC-5P-M12MS/ 2,5-920 - 1519367
Dimensional drawing
Circuit diagram
1
47,3
2
SH
RD
BK
WH
BU
Ø14,8
M12
Ø12
3
4
5
Plug, M12 x 1, straight, shielded
Contact assignment of the M12 plug
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
