Sensor/Actuator cable - SAC-5P-M12MS/ 0,3-PUR SH5A VA - 1577228
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

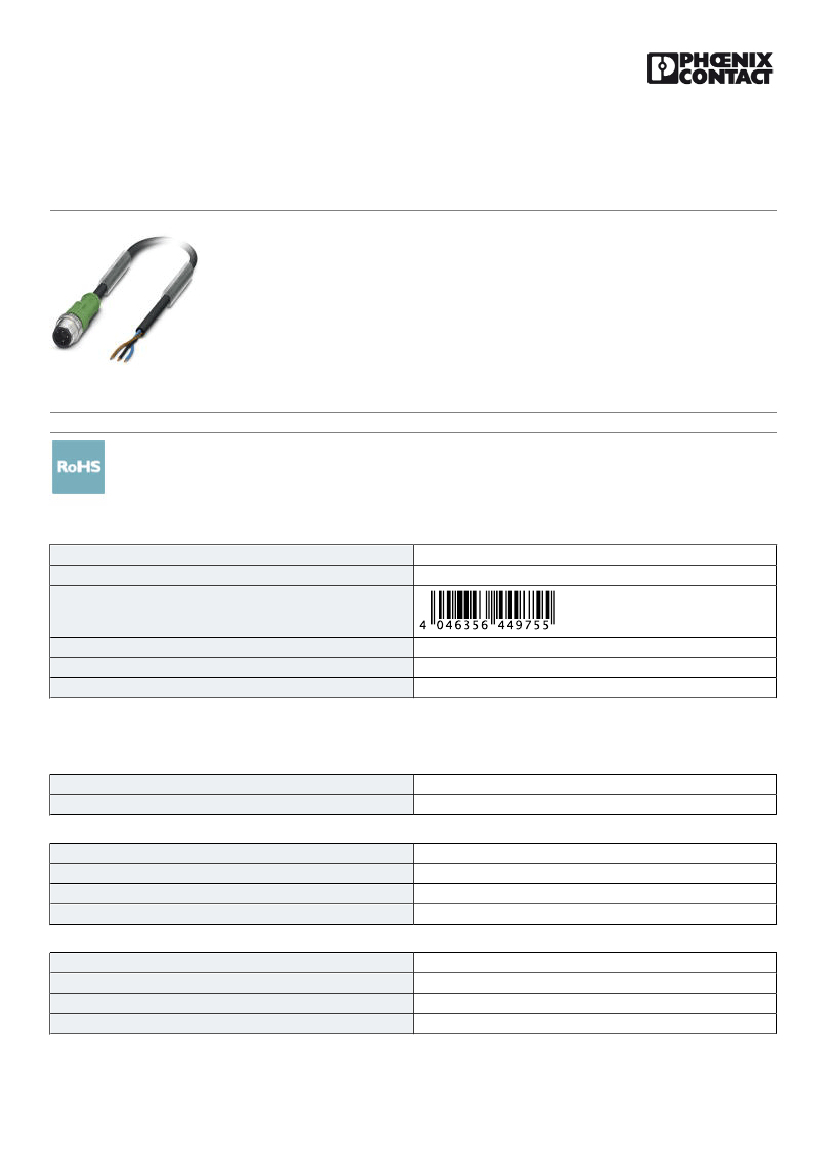

Sensor/Actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, A-
coded, on free cable end, Cable length: 0.3 m
As shown in the illustration but with
a black handle
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356449755
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
0.3 m
50 mm
Ambient conditions
Degree of protection
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
4A
60 V
5
≥ 100 MΩ
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1577228
Sensor/Actuator cable - SAC-5P-M12MS/ 0,3-PUR SH5A VA - 1577228
Technical data
General
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
A - standard
No
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Stainless steel
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Minimum bending radius, drag chain applications
Traversing path
PUR halogen-free black
PUR
Li9Y-V1-C-V1-11Y
20549 / 10493 (80°C/300 V)
4x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
brown, white, blue, black
4 wires, twisted
Tinned copper braided shield
85 %
black-gray RAL 7021
approx. 1 mm
5.9 mm ±0.2 mm
29.5 mm
59 mm
5xD
10 x D
2000000
59 mm
10 x D
10 m
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1577228
Sensor/Actuator cable - SAC-5P-M12MS/ 0,3-PUR SH5A VA - 1577228
Technical data
Cable
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Working capacitance
Wave impedance
Inductance
Nominal voltage, cable
Test voltage, cable
Special properties
3 m/s
10 m/s²
46 kg/km
PUR
PP
Bare Cu litz wires
≥ 100 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 80 pF (Conductor-Conductor)
≤ 135 pF (Wire/shield)
≥ 62 Ω (f = 10 MHz)
approx. 0.75 mH (f = 1 kHz)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Low adhesion surface
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in acc. with UL FT-2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Drawings
Circuit
diagram
Schematic diagram
4
5
3
Contact
assignment
of
the
M12
Pin assignment M12 male connector, 5-pos., A-coded, male side
plug
1
2
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1577228
Sensor/Actuator cable - SAC-5P-M12MS/ 0,3-PUR SH5A VA - 1577228

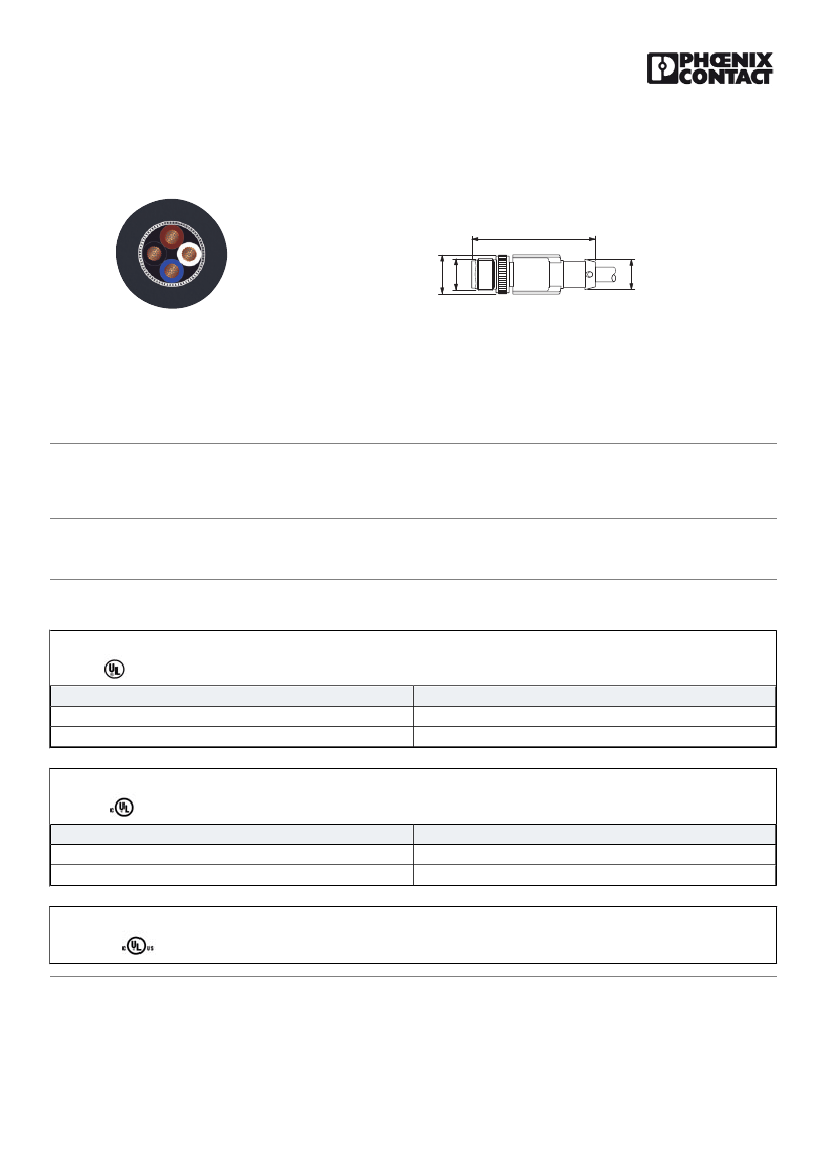

Cable cross section
Dimensional drawing
47,3
Ø14,8
M12
PUR halogen-free black [PUR]
Plug, M12 x 1, straight, shielded
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
125 V
Nominal current IN
Nominal voltage UN
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
125 V
Nominal current IN
Nominal voltage UN
cULus Listed
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
