55-00507 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 55-00507

55-00507: DescriptionCombination Line Connector,; CategoryThe connector; File Size139KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

55-00507 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55-00507	-	-	View	Buy Now

55-00507 Overview

Combination Line Connector,

55-00507 Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	unknown
Is Samacsys	N
subject depth	2.591 inch
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE
Contact style	RND PIN-SKT
empty shell	NO
Filter function	NO
Plug information	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Rated current (signal)	6 A
Guideline	UL
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

20,8

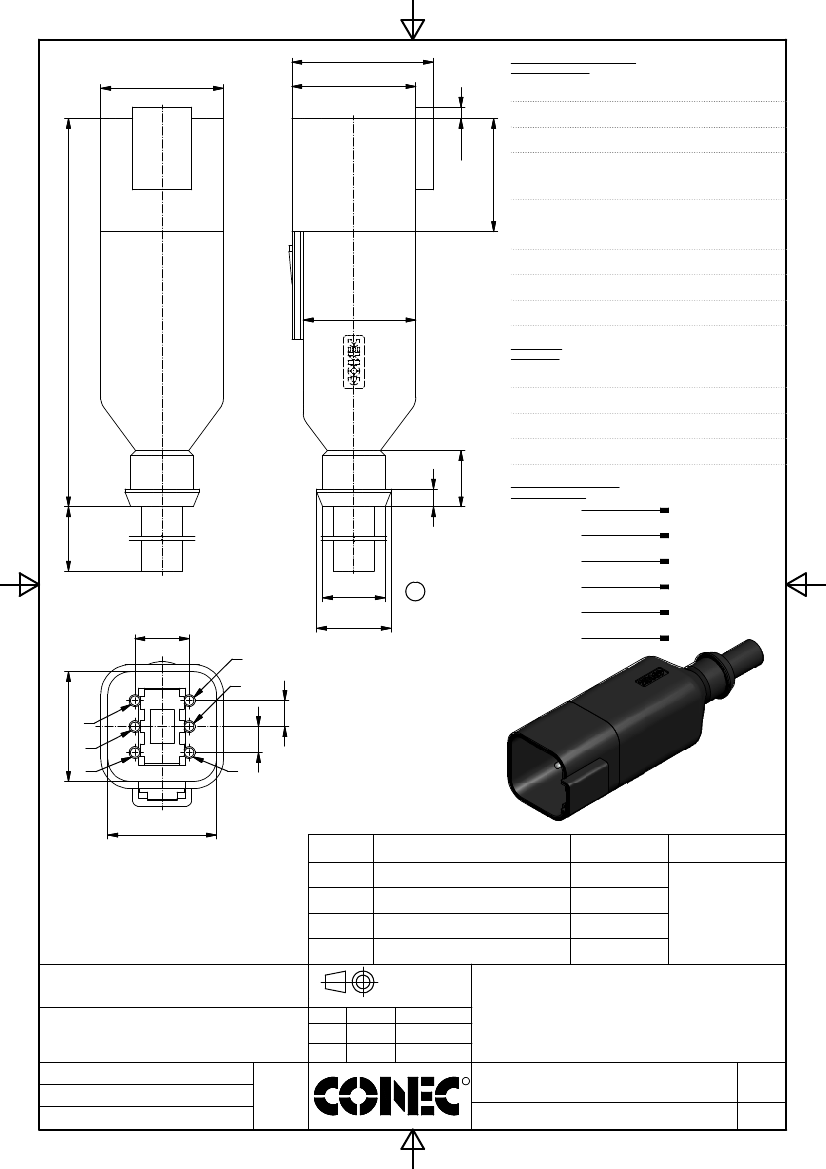

Technical specification:

Technische Daten:

Rated voltage/

Bemessungsspannung:

max. 230 V AC/DC

6 A at 40 °C

6 A bei 40 °

Current rating/

Strombelastbarkeit:

1,9

Degree of protection/

Schutzart:

IP67 / IP69K, in mated condition/

IP67 / IP69K im gesteckten Zustand

19,2

Temperature range

Connector/

Umgebungstemperatur

Stecker:

-40 °C ... +85 °C

Temperature range

Wire/

Umgebungstemperatur

Leitung:

fixed/

-40 °C ... +80 °

fest

moved/ -25 ° ... +80 °

bewegt:

Mating cycles/

Steckzyklen:

>=100

0.75 mm²

Deutsch DT04-6P-E004,

black /

schwarz

Wire cross section/

Anschlussquerschnitt:

65,8

19,1

Housing/

Gehäuse:

Materials/

Werkstoffe:

Contact/

Kontakt:

Copper alloy/

Kupferlegierung

Contact carrier/

Kontaktträger:

Thermoplastic/

Thermoplastik

Contact plating/

Kontaktoberfläche:

TPU, UL 94, black/

schwarz

Overmolding/

Umspritzung:

9,5

Contact assignment/

Kontaktbelegung:

green/

grün

"L"

brown/

braun

white/

weiß

10,6

9,2

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.

Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

pink/

rosa

grey/

grau

yellow/

gelb

12,6

18,6

18,4

Part.-no./

Art.-Nr.:

4,4

Description/

Beschreibung:

Cable length "L"

Kabellänge "L":

Cable/

Kabel:

55-00507

55-00508

55-00509

55-xxxxx

tolerance of cable/

Kabeltoleranz:

DT04-6P-A/K1/0.75/2m

DT04-6P-A/K1/0.75/5m

DT04-6P-A/K1/0.75/10m

DT04-2P-A/K1/0.75/...m

dim. in mm

10m

...m

PUR, black /

schwarz

6x0.75 mm²,

Cable /

Kabel

781-K17600

L <= 5m: L + 50mm

L > 5m: L + 1%

0,0

0,00

∢

0,50mm

0,25mm

0,10mm

5°

Date/

Datum

drawn

gez.

Name

DT 04 - 6pos Cap

Valve Connector

DT 04 - 6pol Ventilstecker

general tolerance/

Allgemeintoleranz:

21.07.14

26.02.15

Strakerjahn

Koch

appd./

gepr..

Index:

Status:

d Ä6704 16.05.17 K.H.

InBearbeitung

scale

Maßstab

1,5 : 1

(1:1)

dwg no /

Z.-nr.:

55K1A067

DIN-

RoHS compliant/

konform

1/1

55-00507 Related Products

	55-00507	55-00508
Description	Combination Line Connector,	Combination Line Connector, RoHS compliant
Maker	CONEC	CONEC
Reach Compliance Code	unknown	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
