BCP5316TC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCP5316TC

BCP5316TC: DescriptionBipolar Transistors - BJT PNP Medium Power; CategoryDiscrete semiconductor The transistor; File Size344KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

BCP5316TC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCP5316TC	-	-	View	Buy Now

BCP5316TC Overview

Bipolar Transistors - BJT PNP Medium Power

BCP5316TC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	GREEN, PLASTIC PACKAGE-4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Is Samacsys	N
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	2 W
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

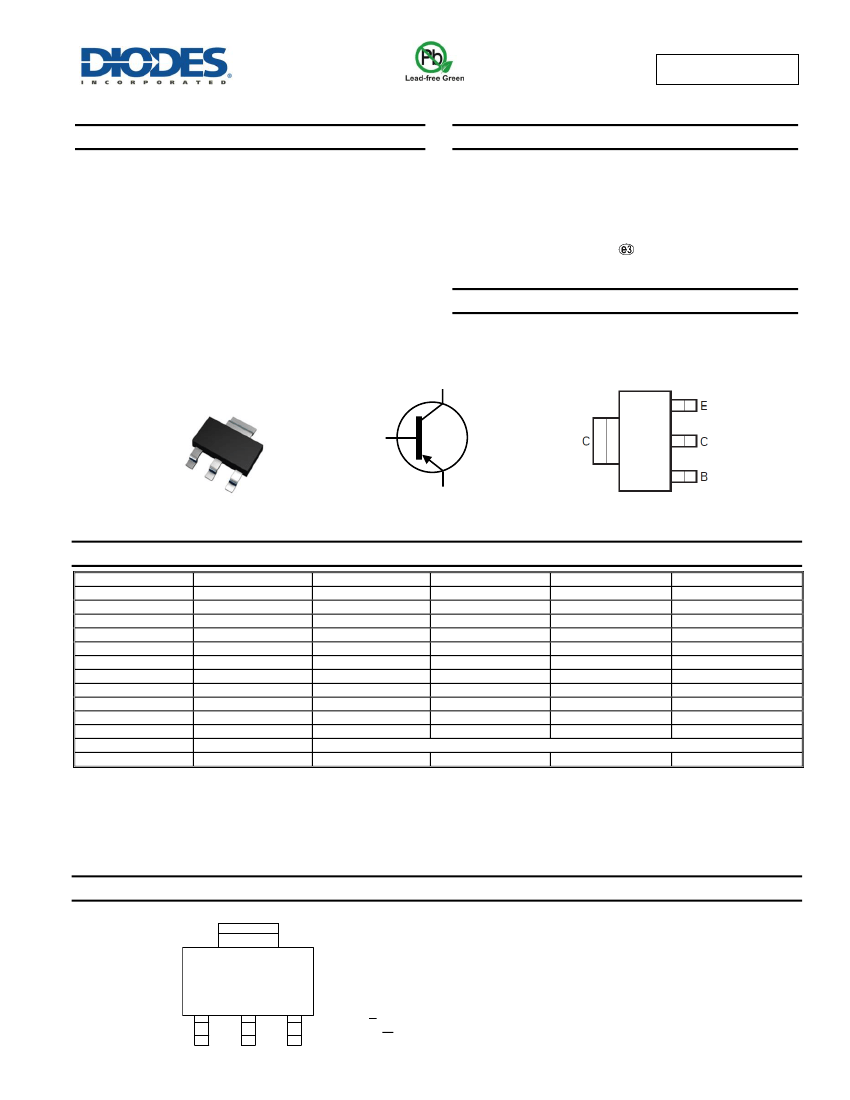

BCP 51/ 52/ 53

PNP MEDIUM POWER TRANSISTORS IN SOT223

Features



CEO

> -45V, -60V & -80V

= -1A High Continuous Collector Current

= -2A Peak Pulse Current

2W Power Dissipation

Low Saturation Voltage V

CE(sat)

< -500mV @ -0.5A

Gain Groups 10 and 16

Complementary NPN Types: BCP54, 55 and 56

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SOT223

Case Material: Molded Plastic. “Green” Molding Compound;

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads; Solderable per

MIL-STD-202, Method 208

Weight: 0.112 grams (Approximate)

Applications



Medium Power Switching or Amplification Applications

AF Driver and Output Stages

SOT223

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BCP51TA

BCP5110TA

BCP5116TA

BCP5116TC

BCP52TA

BCP5210TA

BCP5216TA

BCP53TA

BCP53QTA

BCP5310TA

BCP5316TA

BCP5316QTA

BCP5316TC

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

BCP 51

BCP 5110

BCP 5116

BCP 52

BCP 5210

BCP 5216

BCP 53

BCP 5310

BCP 5316

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

4,000

1,000

4,000

Refer to http://diodes.com/datasheets/BCP5316Q.pdf

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

BCP = Product Type Marking Code, Line 1

XXXX = Product Type Marking Code, Line 2 as follows:

BCP

XXXX

YWW

BCP51 = 51

BCP5110 = 5110

BCP5116 = 5116

BCP52 = 52

BCP5210 = 5210

BCP5216 = 5216

BCP53 = 53

BCP5310 = 5310

BCP5316 = 5316

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

BCP 51 / 52 / 53

Datasheet Number: DS35366 Rev. 6 - 2

1 of 7

www.diodes.com

March 2015
