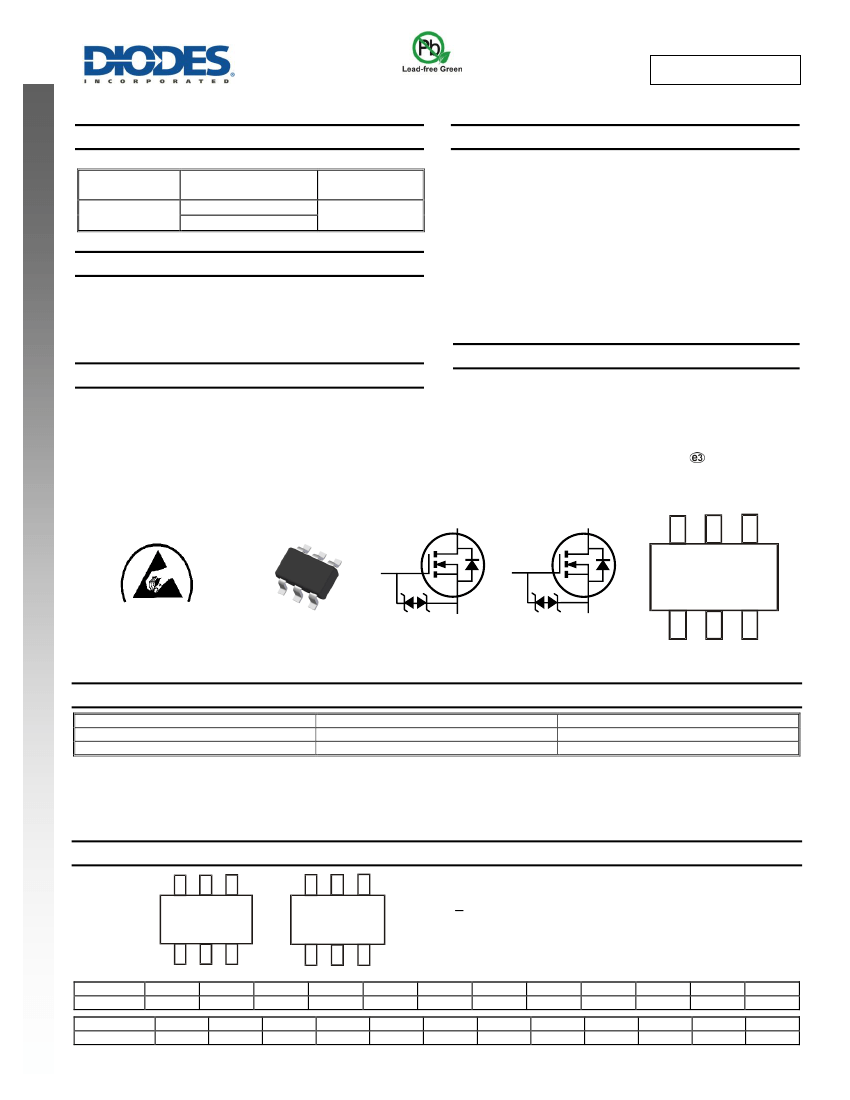

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
NEW PRODUCT
60V
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data
Applications
Motor Control
Power Management Functions
SOT363
Case: SOT363
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.006 grams (Approximate)
D1
D2
D
2
G
1
S
1
G1
E D P cted u to 2
S rote
p
kV
Gate Protection
Diode
G2
S1
Gate Protection
Diode
S2
S
2
G
2
Top View
Pin out
D
1
Top View
Q1 N-Channel
Q2 N-Channel
Equivalent Circuit
Ordering Information
Part Number
DMN61D9UDW-7
DMN61D9UDW-13
Notes:
(Note 4)
Case
SOT363
SOT363
Packaging
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
