DTB123YK
500mA/50V Digital transistor (with built-in resistors)
Datasheet
l
Outline
Parameter
V
CC
I
C
R
1
R
2
l
Features
Value
-50V
-500mA
2.2kΩ
10kΩ
SOT-346
SC-59
(SMT3)
l
Inner circuit
1)Built-in bias resistors enable the configuration
of an inverter circuit without connecting
external input resistors.(see equivalent circuit)
2)The bias resistors consist of thin-film resistors
with complete isolation to allow positive
biasing of the input. They also have the advantage
of almost completely eliminating parasitic effects.
3)Only the on/off conditions need to be set for
operation, making the device desigh easy.
l
Application
INVERTER, INTERFACE, DRIVER
l
Packaging specifications
Part No.
Package
SOT-346
(SMT3)
Package
size
2928
Taping
code
T146
Reel size Tape width
(mm)
(mm)
180
8
Basic
ordering
unit.(pcs)
3000
Marking
DTB123YK
F52
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/5
20150910 - Rev.002
DTB123YK
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Collector current
Power dissipation
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
C*1
P
D*2
T
j
T
stg
Values
-50
-12 to 5
-500
200
150
-55 to +150
Unit
V
V
mA
mW
℃
℃
l
Electrical characteristics
(T
a
= 25°C)
Values
Parameter
Symbol
V
I(off)
Input voltage
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I*3
R
1
R
2
/R
1
f
T*1
Conditions
Min.
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -20mA
I
O
= -50mA, I
I
= -2.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -50mA
-
-
V
CE
= -10V, I
E
= 50mA,
f = 100MHz
-
-2.0
-
-
-
56
1.54
3.6
-
Typ.
-
-
-100
-
-
-
2.2
4.5
200
Max.
-0.3
V
-
-300
-3.6
-500
-
2.86
5.5
-
mV
mA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference land
*3 Pulsed
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/5
20150910 - Rev.002
DTB123YK
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

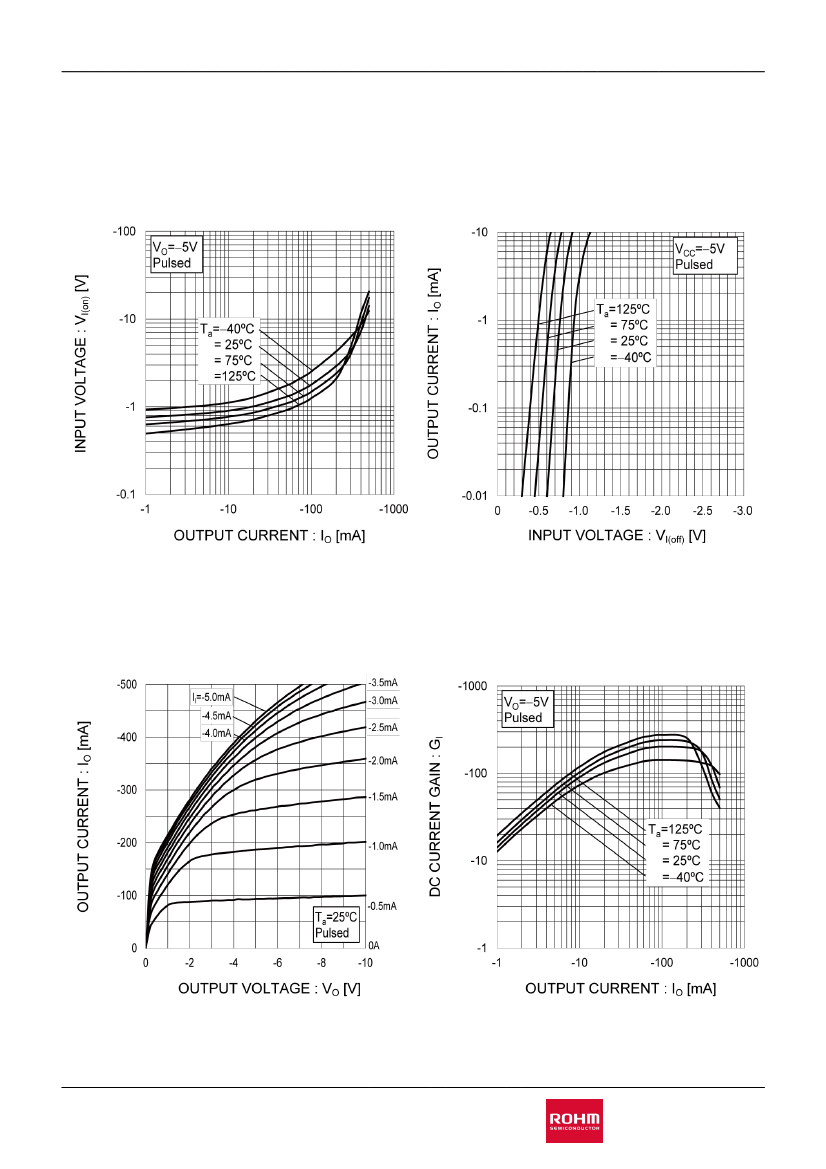

Fig.1 Input Voltage vs. Output Current
(ON Characteristics)
Fig.2 Output Current vs. Input Voltage
(OFF Characteristics)
Fig.3 Output Current vs. Output Voltage
Fig.4 DC Current Gain vs. Output Current
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
3/5
20150910 - Rev.002
DTB123YK
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

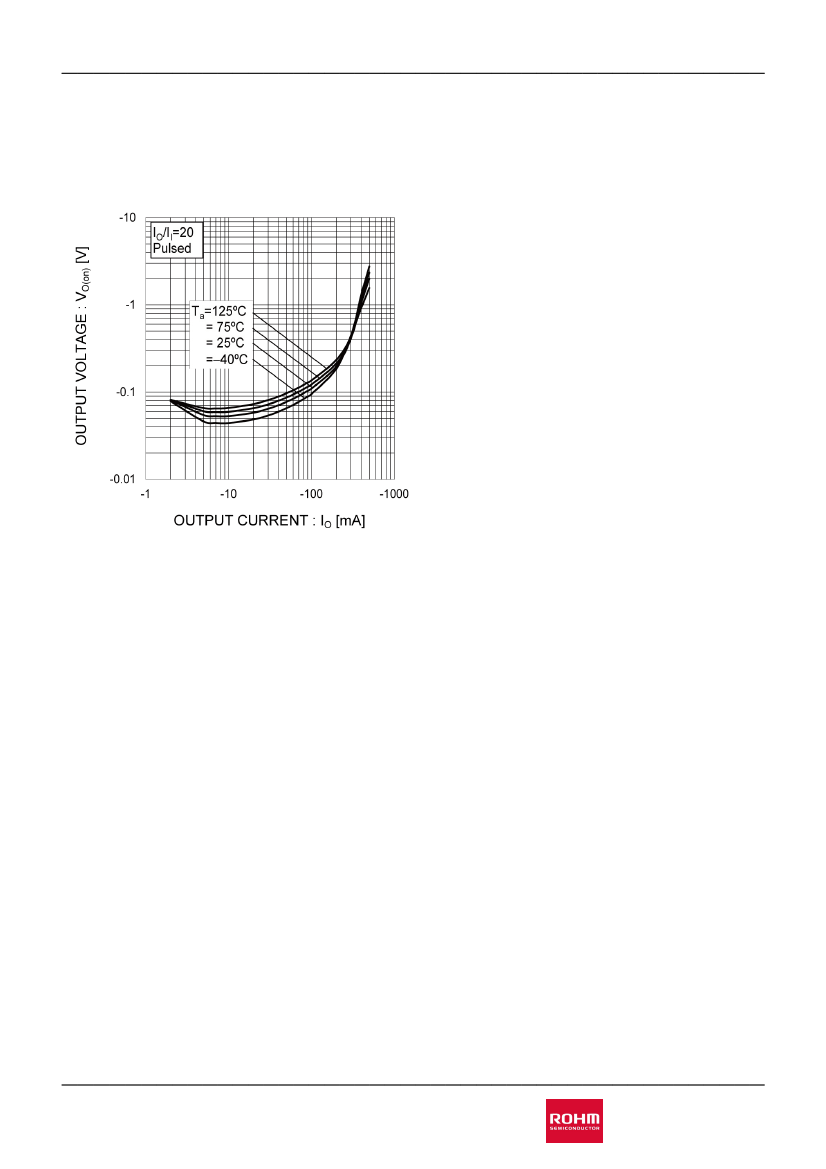

Fig.5 Output Voltage vs. Output Current
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/5
20150910 - Rev.002
DTB123YK
l

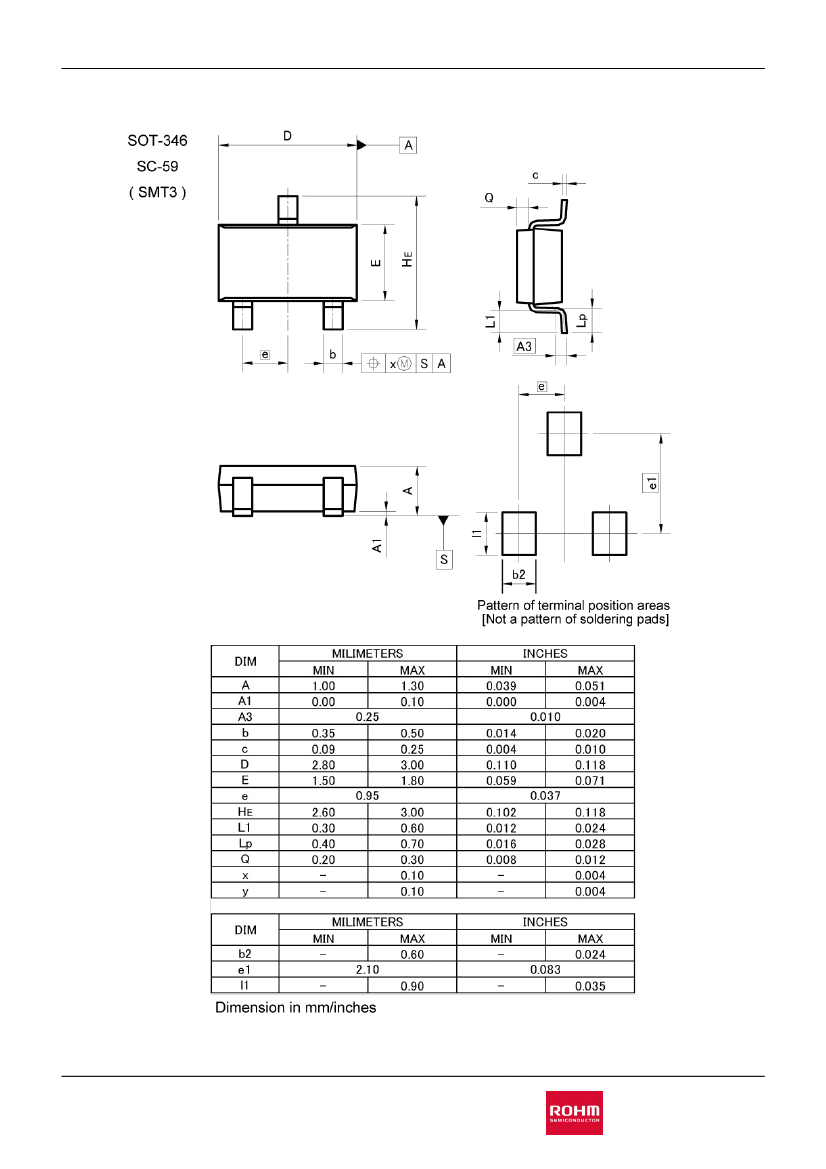

Dimensions
Datasheet
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
5/5
20150910 - Rev.002
