DMG4712SSS-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DMG4712SSS-13

DMG4712SSS-13: DescriptionMOSFET MOSFET N-CHANNEL; CategoryDiscrete semiconductor The transistor; File Size269KB，6 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

DMG4712SSS-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMG4712SSS-13	-	-	View	Buy Now

DMG4712SSS-13 Overview

MOSFET MOSFET N-CHANNEL

DMG4712SSS-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (Abs) (ID)	11.2 A
Maximum drain current (ID)	11.2 A
Maximum drain-source on-resistance	0.014 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	1.55 W
Maximum pulsed drain current (IDM)	63 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

DMG4712SSS

N-CHANNEL ENHANCEMENT MODE MOSFET WITH SCHOTTKY DIODE

Features



High Density UMOS with Schottky Barrier Diode

Low Leakage Current at High Temperature

High Conversion Efficiency

Low On-Resistance

Low Input Capacitance

Fast Switching Speed

Utilizes Diodes’ Monolithic DIOFET Technology to Increase

Conversion Efficiency

UIS Tested, R

Tested

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SO-8

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram Below

Terminals: Finish – Tin Finish Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.074 grams (Approximate)

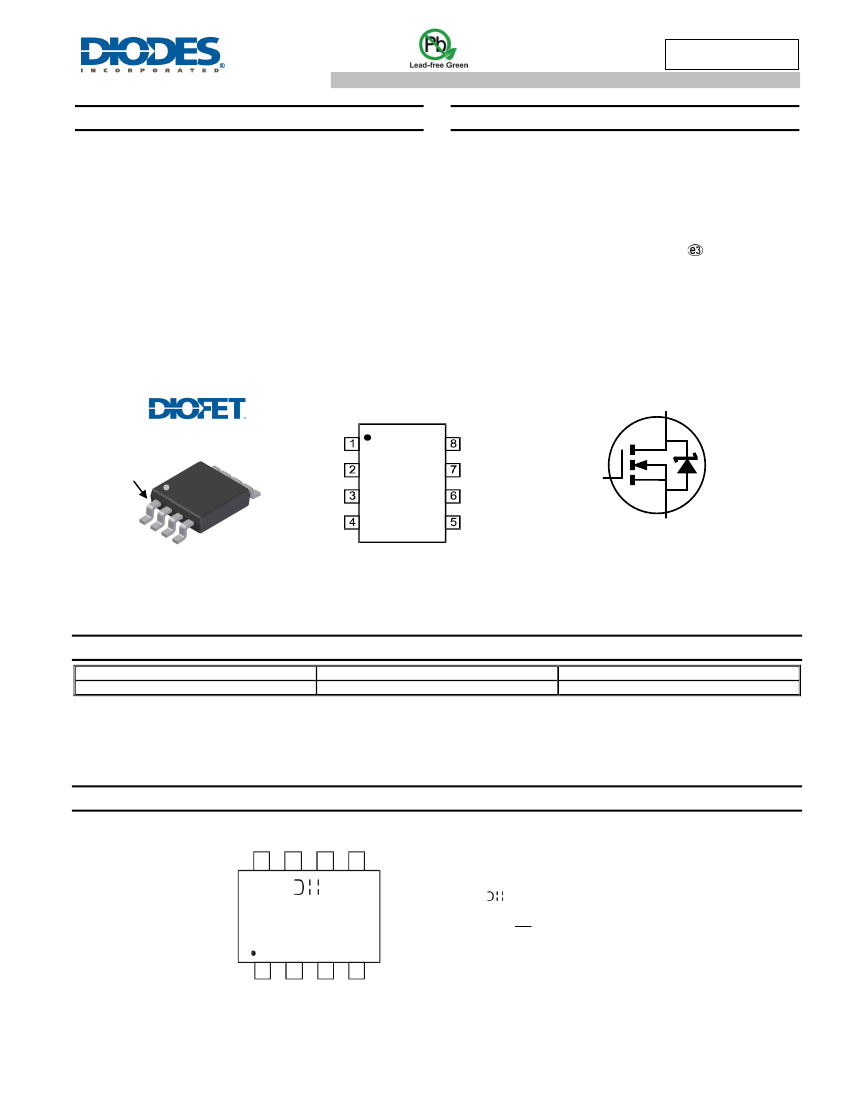

SO-8

Diodes Schottky Integrated MOSFET

Pin1

Top View

Pin Configuration

DIOFET

Top View

Ordering Information

(Note 4)

Part Number

DMG4712SSS-13

Notes:

Case

SO-8

Packaging

2,500 / Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

G4712SS

= Manufacturer’s Marking

G4712SS = Product Type Marking Code

YYWW = Date Code Marking

YY or YY = Year (ex: 15= 2015)

WW = Week (01 - 53)

DMG4712SSS

Document number: DS32040 Rev. 7 - 2

1 of 6

www.diodes.com

January 2016
