TLS115B0
High Precision Voltage Tracke r
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
150 mA current capability
Very high accuracy voltage tracking
Output voltage adjustable down to 2.0 V
Stable with ceramic output capacitors
Very low dropout voltage
Very low current consumption in OFF mode
Internally controlled soft start
Wide input voltage range: -16 V
≤
V
IN
≤
45 V
Wide temperature range: -40°C
≤
T
j
≤
150°C
Short circuit protected output (to GND and to battery)
Reverse polarity protected input
Overtemperature protection
Green Product (RoHS compliant)
AEC Qualified
Applications
•
•
•
•
•
•
Automotive sensor supply
Protected sensor supply for off-board sensors
Secondary voltage supply in automotive ECU
High-precision voltage tracking
Precision voltage replication
Power switch for off-board load
Description

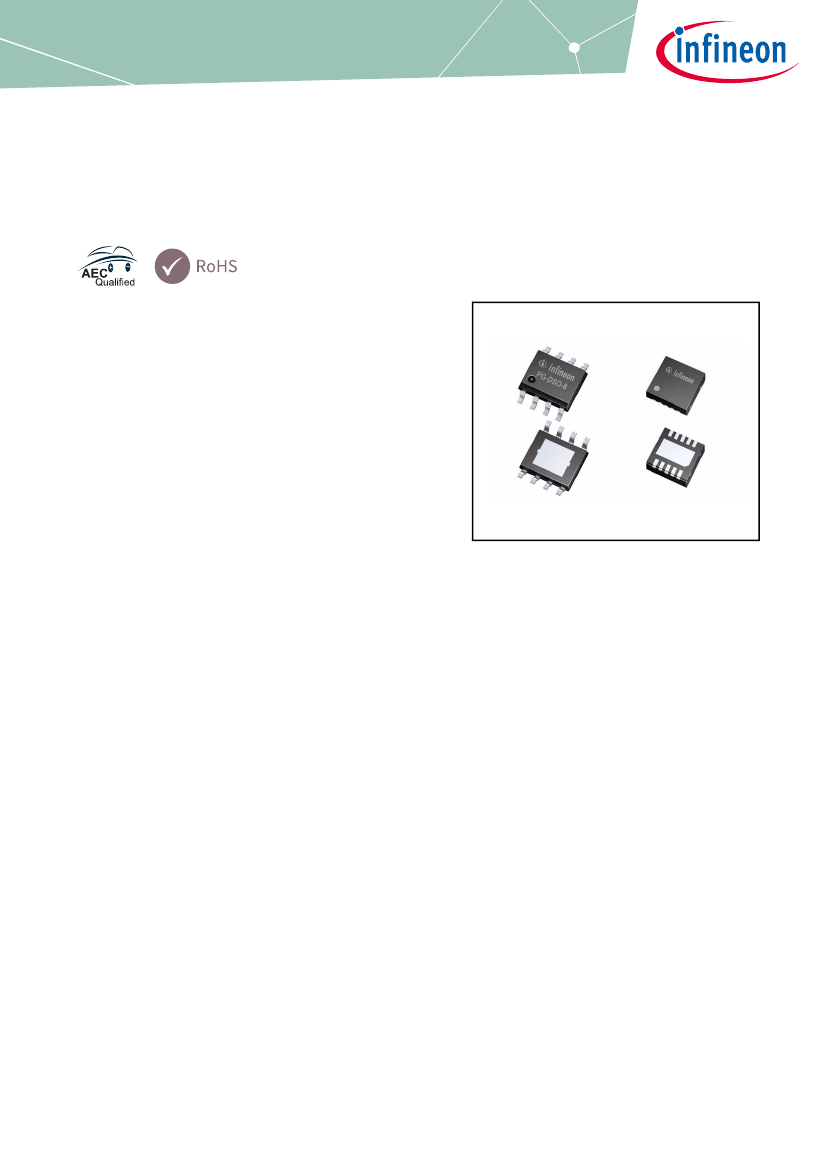

The TLS115B0 is a monolithic integrated low-dropout voltage tracking regulator with high accuracy in small
PG-DSO-8 exposed pad and PG-TSON-10 packages. The TLS115B0 is designed to supply off-board systems, for
example sensors in powertrain management systems under the severe conditions of automotive applications.
Therefore, the TLS115B0 is equipped with protection functions against reverse polarity and against short
circuit to GND and battery.
Up to a supply voltage of 45 V and output currents up to 150 mA, the output voltage follows the reference
voltage that is applied to the ADJ input with very high accuracy. The required minimum reference voltage at
ADJ is 2.0 V.
Data Sheet
www.infineon.com/power
1
Rev. 1.00
2016-10-13
TLS115B0
High Precision Voltage Tracker
Table of Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
5
5.1
5.2
5.2.1
5.2.2
5.2.3
5.3
5.4
6
7
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin assignment TLS115B0EJ in PG-DSO-8 EP package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin definitions and functions TLS115B0EJ in PG-DSO-8 EP package . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin assignment TLS115B0LD in PG-TSON-10 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin definitions and functions TLS115B0LD in PG-TSON-10 package . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General product characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Block description and electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tracking regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical performance characteristics tracking regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical performance characteristics current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enable input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical performance characteristics Enable input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical performance characteristics Adjust input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selection of external components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Further application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
5
6
6
7
7
8
8
10
10
12
15
15
17
17
18
18
19
19
19
19
20
20
20
21
Package outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Data Sheet
3
Rev. 1.00
2016-10-13
TLS115B0
High Precision Voltage Tracker
Pin configuration
2
2.1
Pin configuration
Pin assignment TLS115B0EJ in PG-DSO-8 EP package
OUT
N.C.
GND
N.C.
Figure 2
1
2
3
4
8
7
6
5
IN
EN
N.C.
ADJ
TLS115B0EJ pin configuration
2.2
Pin
1
Pin definitions and functions TLS115B0EJ in PG-DSO-8 EP package
Symbol
OUT
Function
Tracker output
150 mA output current capability
Connect to GND with a capacitor close to the pins, respecting capacitance and
ESR requirements given in
Table 2 Functional range.
Not connected
Ground
Not connected
Adjust
Connect to the reference voltage
Not Connected
Enable input
“High” signal: enables the tracker
“Low” signal: disables the tracker
If the enable function is not required, then connect EN to IN.
Input
It is recommended to connect a small ceramic capacitor to GND close to the pins
in order to compensate line influence.
Exposed Pad
Connect to GND
2
3
4
5
6
7
N.C.
GND
N.C.
ADJ
N.C.
EN
8
IN
Pad
–
Data Sheet
5
Rev. 1.00
2016-10-13
