CBRLDSH2-100
SURFACE MOUNT
LOW PROFILE
2 AMP SILICON
SCHOTTKY BRIDGE RECTIFIER
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CBRLDSH2-100
is a full wave Schottky bridge rectifier mounted in a
low profile epoxy surface mount molded case, utilizing
glass passivated chips.
MARKING CODE: CLP2

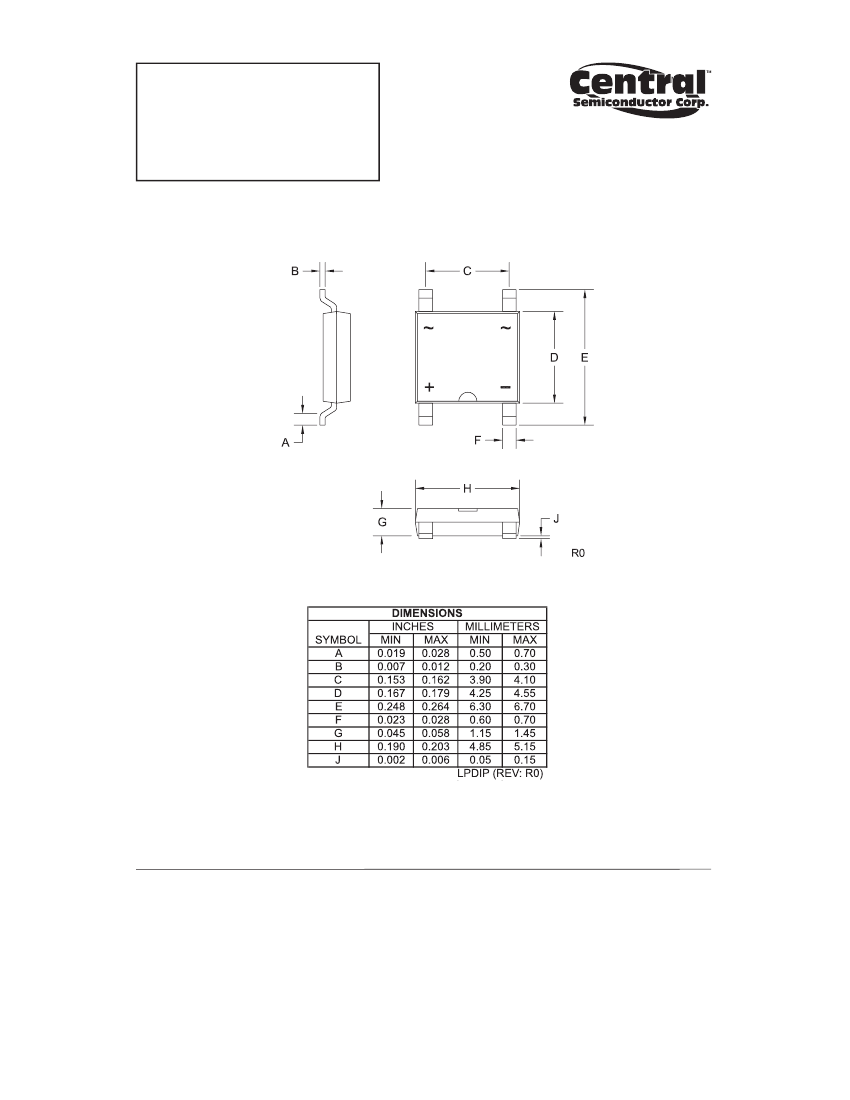

LPDIP CASE
APPLICATIONS:
•
Solid state lighting (SSL)
•
DC-DC converters
•
Polarity protection
FEATURES:
•
Low leakage current (0.25μA TYP @ 100V)
•
Low profile case (1.45mm MAX)
•
Low VF Schottky diodes (770mV TYP @ IF=2.0A)
SYMBOL
VRRM
VR
VR(RMS)
IO
IFSM
TJ
Tstg
Θ
JA
UNITS
V
V
V
A
A
°C
°C
°C/W
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TL=50°C)
Peak Forward Surge Current (tp=8.3ms)
Operating Junction Temperature
Storage Temperature
Thermal Resistance (Note 1)
100
100
70
2.0
50
-55 to +125
-55 to +150
95
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
TYP
IR
VR=100V
0.25
BVR
IR=150μA
100
VF
CJ
IF=2.0A
VR=4.0V, f=1.0MHz
770
110
MAX
4.0
UNITS
μA
V
840
mV
pF
Notes: (1) FR-4 epoxy PCB with minimum copper pad area.
R3 (17-October 2012)
