GS840FH18/32/36AT-8/8.5/10
TQFP
Commercial Temp
Industrial Temp
Features
• Flow Through mode operation
• 3.3 V +10%/–5% core power supply
• 2.5 V or 3.3 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipeline mode
• Byte Write (BW) and/or Global Write (GW) operation
• Common data inputs and data outputs
• Clock Control, registered, address, data, and control
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 100-lead TQFP
• Pb-Free 100-lead TQFP package available
256K x 18, 128K x 32, 128K x 36
4Mb Sync Burst SRAMs
8 ns–12
3.3 V V
3.3 V and 2.5 V I
counter may be configured to count in either linear or
interleave order with the Linear Burst Order (LBO) input. T
burst function need not be used. New addresses can be load
on every cycle with no degradation of chip performance.
Functional Description
Applications
The GS840FH18/32/36A is a 4,718,592-bit (4,194,304-bit for
x32 version) high performance synchronous SRAM with a
2-bit burst address counter. Although of a type originally
developed for Level 2 Cache applications supporting high
performance CPUs, the device now finds application in
synchronous SRAM applications ranging from DSP main store
to networking chip set support. The GS840FH18/32/36A is
available in a JEDEC-standard 100-lead TQFP package.
Controls
Addresses, data I/Os, chip enables (E
1
, E
2
, E
3
), address burst
control inputs (ADSP, ADSC, ADV), and write control inputs
(Bx, BW, GW) are synchronous and are controlled by a
positive-edge-triggered clock input (CK). Output enable (G)
and power down control (ZZ) are asynchronous inputs. Burst
cycles can be initiated with either ADSP or ADSC inputs. In
Burst mode, subsequent burst addresses are generated
internally and are controlled by ADV. The burst address
Designing For Compatibility
The JEDEC standard for Burst RAMs calls for a FT mode
option (Pin 14 on TQFP). Board sites for flow through Bur
RAMs should be designed with V
SS
connected to the FT pi
location to ensure the broadest access to multiple vendor
sources. Boards designed with FT pin pads tied low may be
stuffed with GSI’s pipeline/flow through-configurable Burs
RAMs or any vendor’s flow through or configurable Burst
SRAM. Bumps designed with the FT pin location tied high
floating must employ a non-configurable flow through Bur
RAM, (e.g., GS840FH18/32/36A), to achieve flow through
functionality.
Byte Write and Global Write
Byte write operation is performed by using Byte Write ena
(BW) input combined with one or more individual byte wri
signals (Bx). In addition, Global Write (GW) is available fo
writing all bytes at one time, regardless of the byte write
control inputs.
Sleep Mode
Low power (Sleep mode) is attained through the assertion
(High) of the ZZ signal, or by stopping the clock (CK).
Memory data is retained during Sleep mode.
Core and Interface Voltages
The GS840FH18/32/36A operates on a 3.3 V power supply
and all inputs/outputs are 3.3 V- and 2.5 V-compatible.
Separate output power (V
DDQ
) pins are used to decouple
output noise from the internal circuit.
Parameter Synopsis
-8
-8.5
-10
-12
Flow
t
KQ
8 ns
8.5 ns
10 ns
12 ns
Through tCycle 9 ns
10 ns
12 ns
15 ns
2-1-1-1
I
DD
210 mA 190 mA 165 mA 135 mA
Rev: 1.07 10/2004
1/21
© 1999, GSI Techno
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS840FH18/32/36AT-8/8.5/10

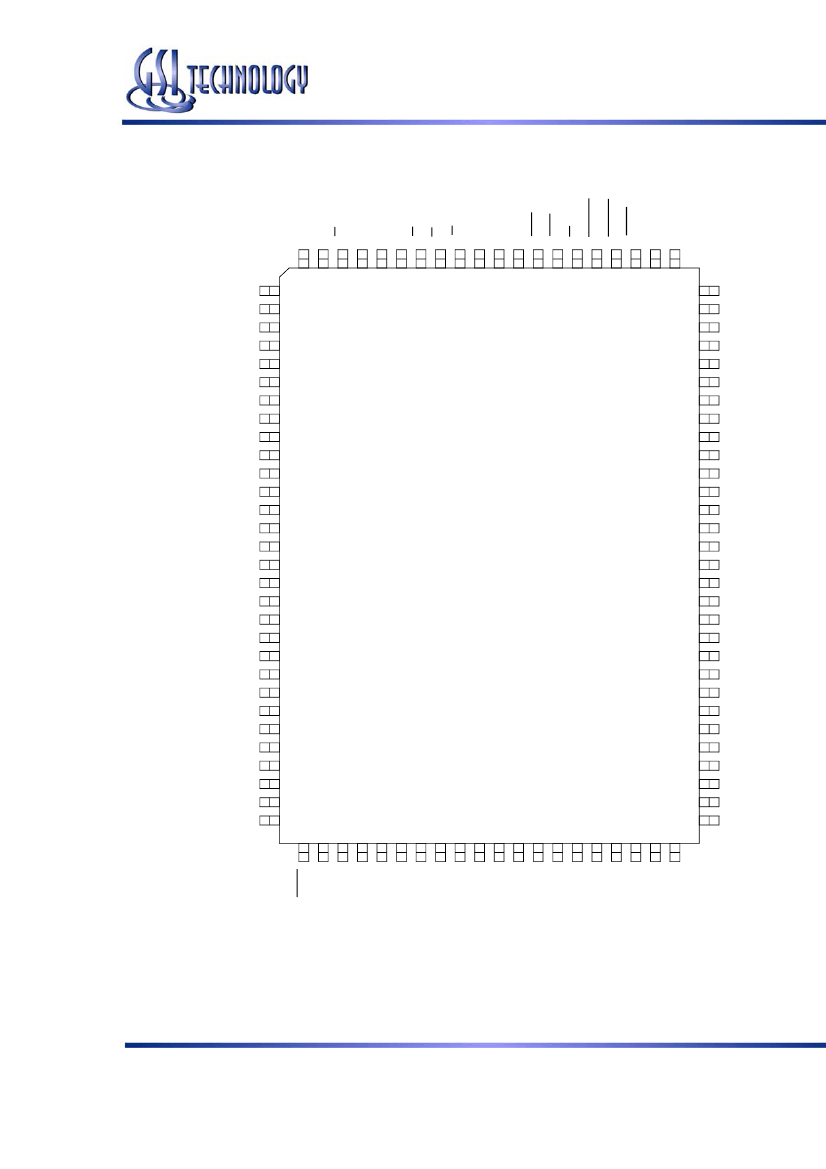

TQFP Pin Description
Symbol
A
0
, A
1
A
DQ
A
DQ
B
DQ
C
DQ
D
BW
B
A
, B
B
B
C
, B
D
CK
GW
E
1
, E
3
E
2
G
ADV
ADSP, ADSC
ZZ
LBO
V
DD
V
SS
V
DDQ
NC
Type
I
I
I/O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
—
Description
Address field LSBs and Address Counter preset Inputs
Address Inputs
Data Input and Output pins
Byte Write—Writes all enabled bytes; active low
Byte Write Enable for DQ
A
, DQ
B
Data I/Os; active low
Byte Write Enable for DQ
C
, DQ
D
Data I/Os; active low
Clock Input Signal; active high
Global Write Enable—Writes all bytes; active low
Chip Enable; active low
Chip Enable; active high
Output Enable; active low
Burst address counter advance enable; active low
Address Strobe (Processor, Cache Controller); active low
Sleep Mode control; active high
Linear Burst Order mode; active low
Core power supply
I/O and Core Ground
Output driver power supply
No Connect
