DTA044TEBTL: DescriptionBipolar Transistors - Pre-Biased Digital Transistor PNP 50V 100mA 3-Pin; CategoryDiscrete semiconductor The transistor; File Size1MB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTA044TEBTL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTA044TEBTL	-	-	View	Buy Now

DTA044TEBTL Overview

Bipolar Transistors - Pre-Biased Digital Transistor PNP 50V 100mA 3-Pin

DTA044TEBTL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SC-89
package instruction	SMALL OUTLINE, R-PDSO-F3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Maximum collector current (IC)	0.06 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
JESD-30 code	R-PDSO-F3
JESD-609 code	e1
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

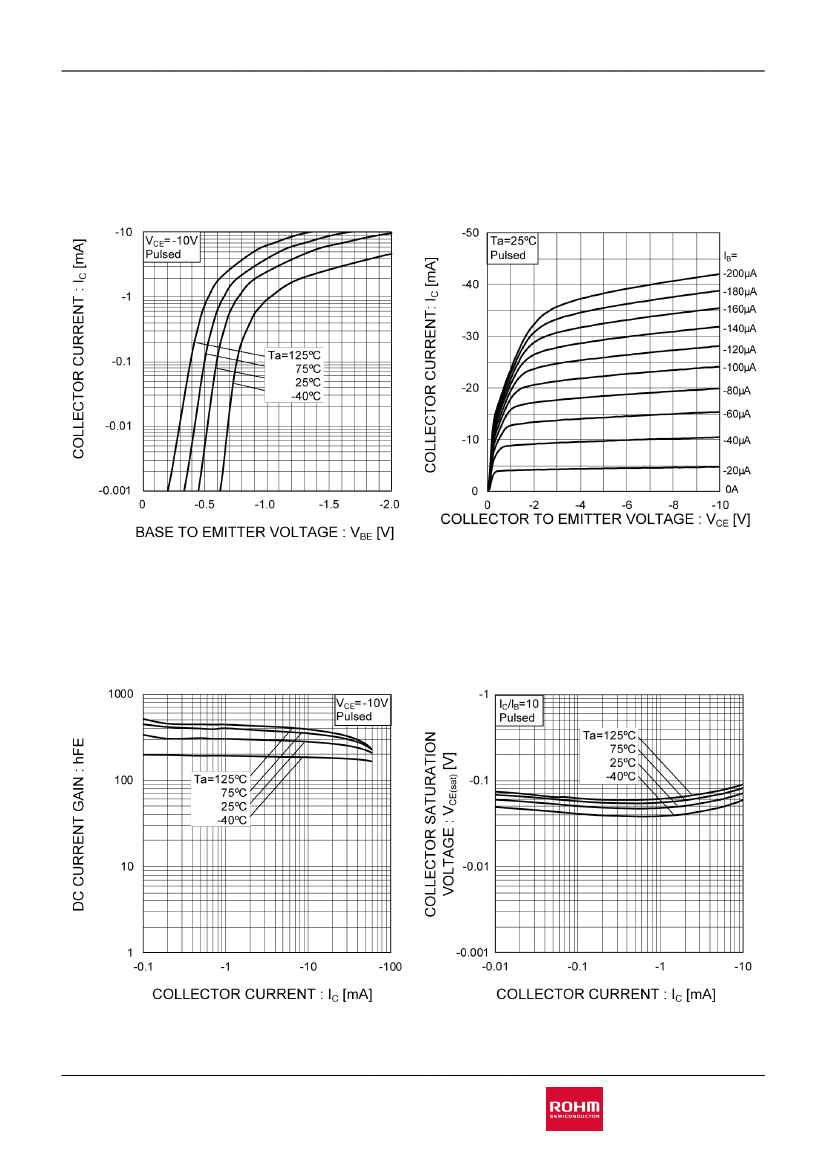

Preview

Download Datasheet

View All

DTA044T series

PNP -60mA -50V Digital Transistor (Bias Resistor Built-in Transistor)

Datasheet

Outline

Parameter

CEO

Value

-50V

-60mA

47kΩ

SOT-723

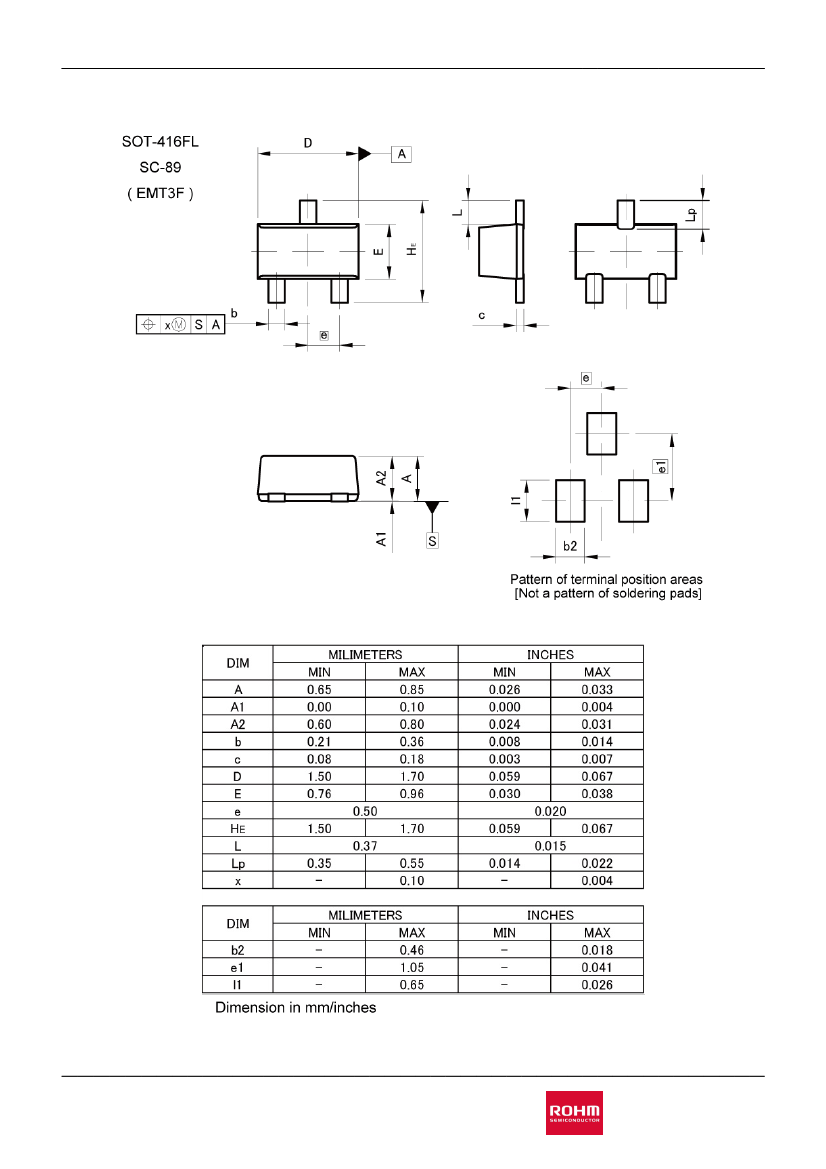

SOT-416FL

DTA044TM

(VMT3)

SOT-323FL

DTA044TEB

(EMT3F)

Features

1) Built-In Biasing Resistors, R

= 47kΩ

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .

3) Only the on/off conditions need to be set

for operation, making the circuit design easy.

4) Complementary NPN Types: DTC044T series

DTA044TUB

(UMT3F)

Inner circuit

Application

INVERTER, INTERFACE, DRIVER

Packaging specifications

Part No.

Package

SOT-723

(VMT3)

SOT-416FL

(EMT3F)

SOT-323FL

(UMT3F)

Package

size

1212

1616

2021

Taping

code

T2L

Reel size Tape width

(mm)

180

Basic

ordering

unit.(pcs)

8000

3000

Marking

DTA044TM

DTA044TEB

DTA044TUB

www.rohm.com

1/6

20160408 - Rev.003

DTA044TEBTL Related Products

	DTA044TEBTL	DTA044TUBTL
Description	Bipolar Transistors - Pre-Biased Digital Transistor PNP 50V 100mA 3-Pin	Bipolar Transistors - Pre-Biased PNP Digital Transtr w/built in resistors
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	SC-89	SC-85
package instruction	SMALL OUTLINE, R-PDSO-F3	SMALL OUTLINE, R-PDSO-F3
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	13 weeks	13 weeks
Maximum collector current (IC)	0.06 A	0.06 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
JESD-30 code	R-PDSO-F3	R-PDSO-F3
JESD-609 code	e1	e1
Humidity sensitivity level	1	1
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	PNP	PNP
Maximum power dissipation(Abs)	0.15 W	0.2 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	TIN SILVER COPPER
Terminal form	FLAT	FLAT
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz
