SBR10200CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SBR10200CT

SBR10200CT: DescriptionSchottky Diodes & Rectifiers 10A 100Vrrm; CategoryDiscrete semiconductor diode; File Size407KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

SBR10200CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBR10200CT	-	-	View	Buy Now

SBR10200CT Overview

Schottky Diodes & Rectifiers 10A 100Vrrm

SBR10200CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	TO-220AB
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
application	FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.74 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum non-repetitive peak forward current	110 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.02 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40

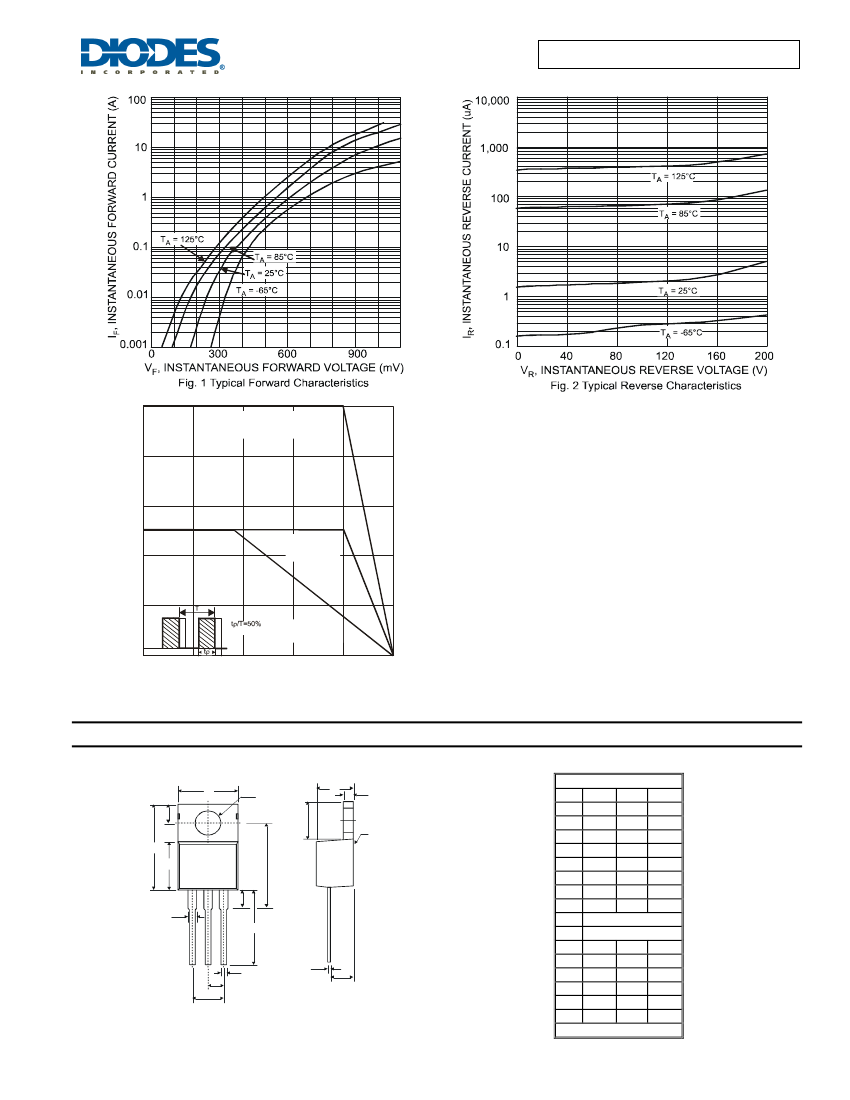

Preview

Download Datasheet

View All

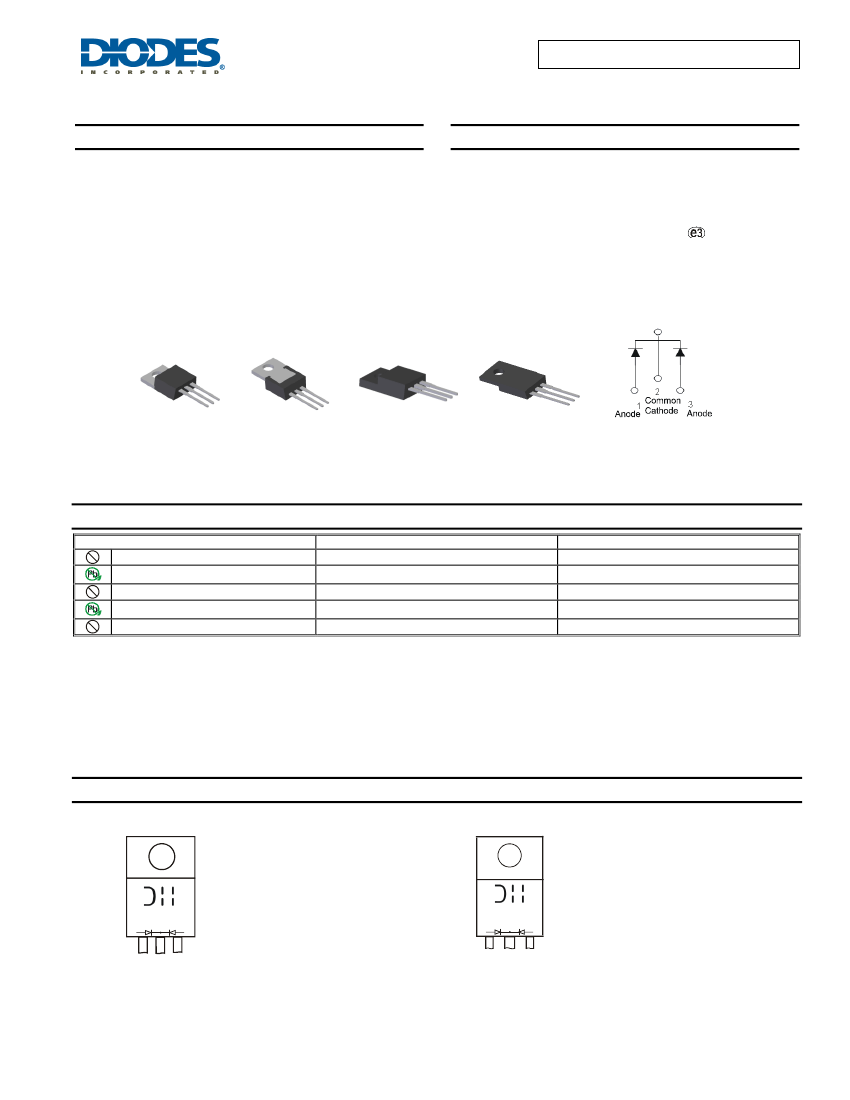

SBR10200CT, SBR10200CTFP

10A SBR

SUPER BARRIER RECTIFIER

Features



Excellent High Temperature Stability

Patented Super Barrier Rectifier Technology

Soft, Fast Switching Capability

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Also Available in Green Molding Compound

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: TO-220AB, ITO-220AB

Case Material: Molded Plastic, UL Flammability Classification

Rating 94V-0

Terminals: Matte Tin Finish Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Weight: TO-220AB – 1.85 grams (Approximate)

ITO-220AB - 1.65 grams (Approximate)

TO-220AB

Top View

TO-220AB

Bottom View

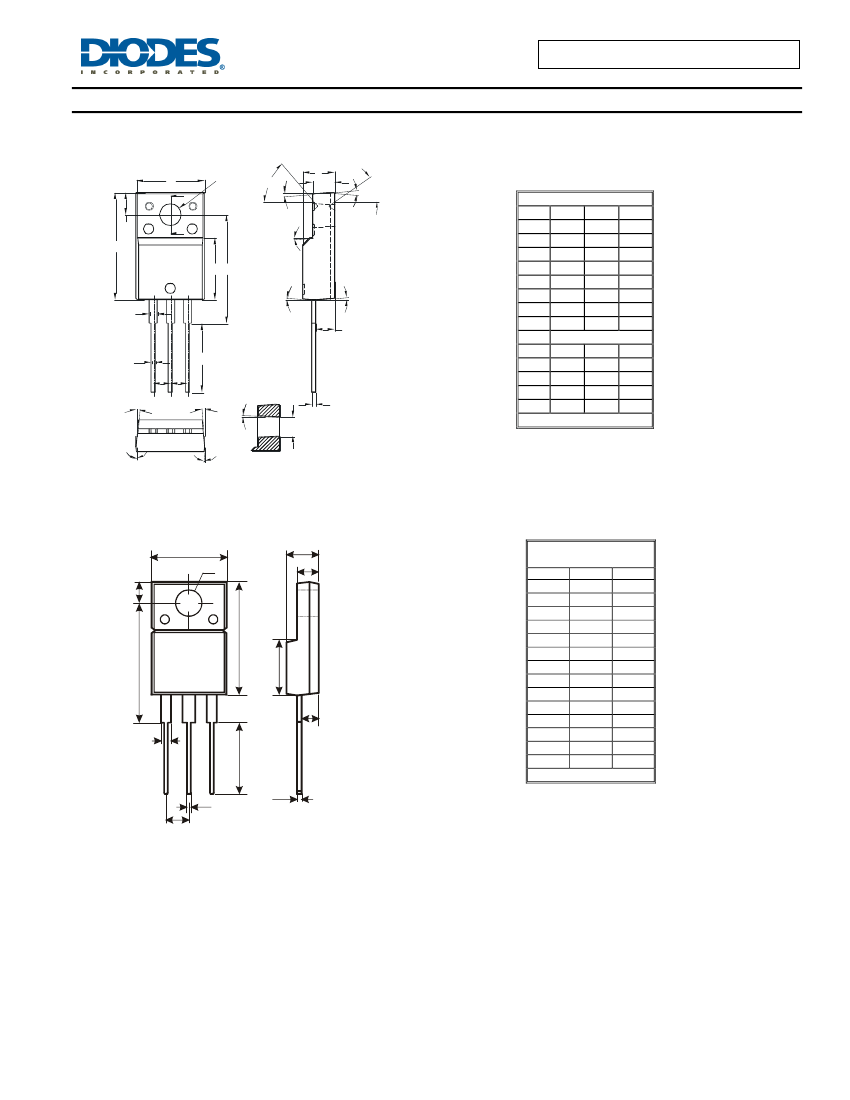

ITO-220AB

Top View

ITO-220AB

Bottom View

Package Pin-Out

Configuration

Ordering Information

(Notes 4 & 5)

Green

Part Number

SBR10200CT

SBR10200CT-G

SBR10200CTFP

SBR10200CTFP-G

SBR10200CTFP-JT

Case

TO-220AB

ITO-220AB

ITO-220AB (Alternate)

Packaging

50 Pieces/Tube

Green

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR10200CT-G.

5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

Marking Information

SBR10200CT = Product Type Marking Code

AB = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last Two Digits of Year (ex: 06 = 2006)

WW = Week (01 - 53)

SB R 10200C T

YYW W

SB R 10200C TFP

YYW W

SBR10200CTFP = Product Type Marking Code

AB = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last Two Digits of Year (ex: 06 = 2006)

WW = Week (01 - 53)

*For products manufactured with date code 0806 and newer, the diode marking symbol changes from filled ► to unfilled

.

SBR is a registered trademark of Diodes Incorporated.

SBR10200CT

Document number: DS31212 Rev. 9 - 2

1 of 5

www.diodes.com

October 2014
