DF15VD60-4100: DescriptionRectifiers VRM=600 IFSM=190; Categorysemiconductor Discrete semiconductor; File Size283KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

DF15VD60-4100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF15VD60-4100	-	-	View	Buy Now

DF15VD60-4100 Overview

Rectifiers VRM=600 IFSM=190

DF15VD60-4100 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SHINDENGEN
Product Category	Rectifiers
RoHS	N
Mounting Style	SMD/SMT
Package / Case	D2PAK-2
Vr - Reverse Voltage	600 V
If - Forward Current	15 A
Type	Standard Recovery Rectifiers
Configuration	Dual Series
Vf - Forward Voltage	1.05 V
Max Surge Current	190 A
Ir - Reverse Current	10 uA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Height	4.6 mm
Length	10.2 mm
Product	Rectifiers
Termination Style	SMD/SMT
Width	9.3 mm
Factory Pack Quantity	1
Unit Weight	0.066315 oz

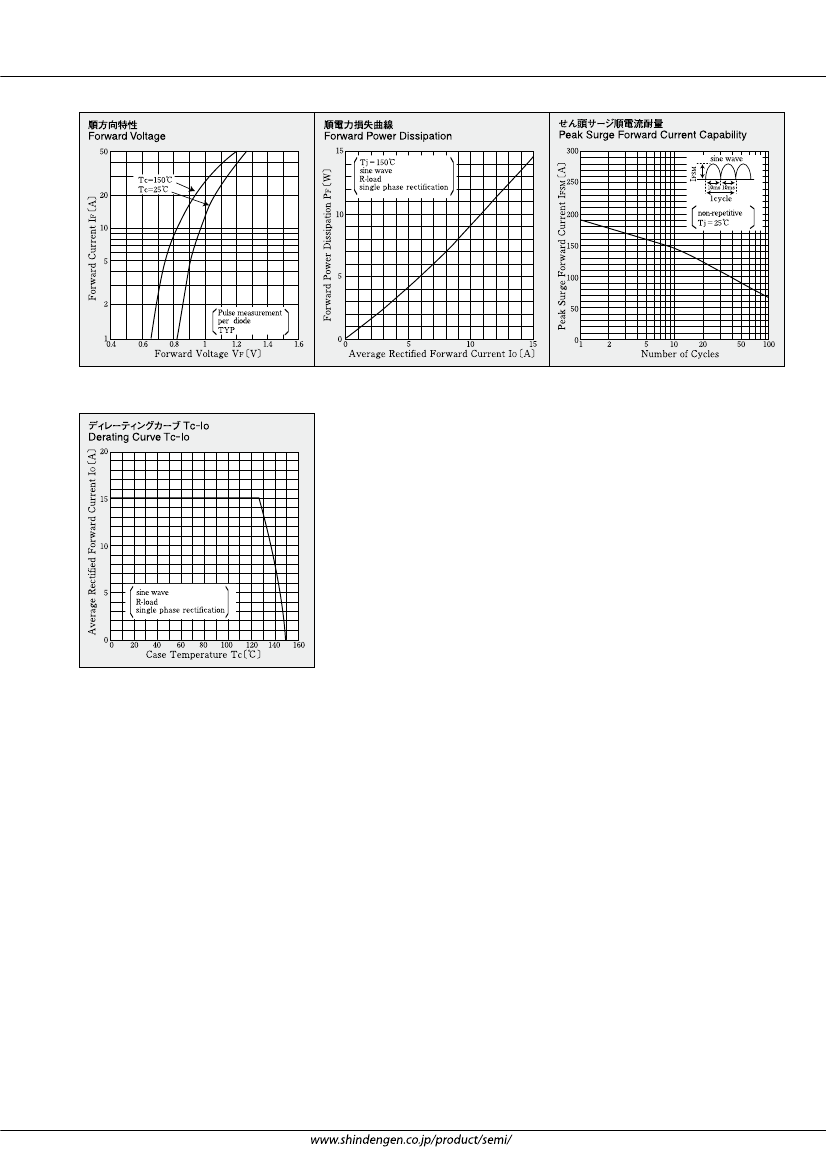

Preview

Download Datasheet

View All

Twin Diode

面実装デバイスアレイ型

Surface Mounting Device Diode Array

DF15VD60

600V 15A

特長

• SMD

• ツイン

• 耐湿性に優れ高信頼性

■外観図 OUTLINE

Package：STO-220

ロッ

ト記号

（例）

Date code

管理番号

（例）

Control No.

品名略号

Type No.

極性

Polarity

4.7

Unit : mm

Weight : 1.5g typ.）

（

10.2

④

0264

15VD60

13.2

Feature

• SMD

• Twin-Di

• High-Reliability

① ② ③

＋ ∼ ∼ −

①

② ④

③

外½図については新電元 Web サイト又は〈半導½½品一覧表〉をご参照下

さい。捺印表示については捺印仕様をご確認下さい。

■定格表 RATINGS

項目

Item

保存温度

Storage Temperature

接合部温度

Operation Junction Temperature

せん頭逆電圧

Maximum Reverse Voltage

出力電流

Average Rectified Forward Current

せん頭サージ順電流

Peak Surge Forward Current

記号

条件

Symbol Conditions

stg

FSM

50Hz 正弦波，抵抗負荷，Tc = 127℃

50Hz sine wave, Resistance load, Tc = 127℃

品名

Type No.

DF15VD60

−40∼150

150

600

190

単½

Unit

℃

50Hz 正弦波，非繰り返し１サイクルせん頭値，Tj = 25℃

50Hz sine wave , Non-repetitive 1cycle peak value, Tj = 25℃

順電圧

Forward Voltage

逆電流

Reverse Current

熱抵抗

Thermal Resistance

θjc

F =

7.5A,

パルス測定，１素子½たりの規格値

Pulse measurement, per diode

R =

パルス測定，１素子½たりの規格値

Pulse measurement, per diode

MAX

1.05

1.6

μA

℃/W

接合部・ケース間

Junction to Case

150

（J534）
