MAX4420MJA/883B datasheet, PDF

MAX4420MJA/883B: DescriptionGate Drivers 6A MOSFET Driver (Noninverting); CategoryAnalog mixed-signal IC Drivers and interfaces; File Size236KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

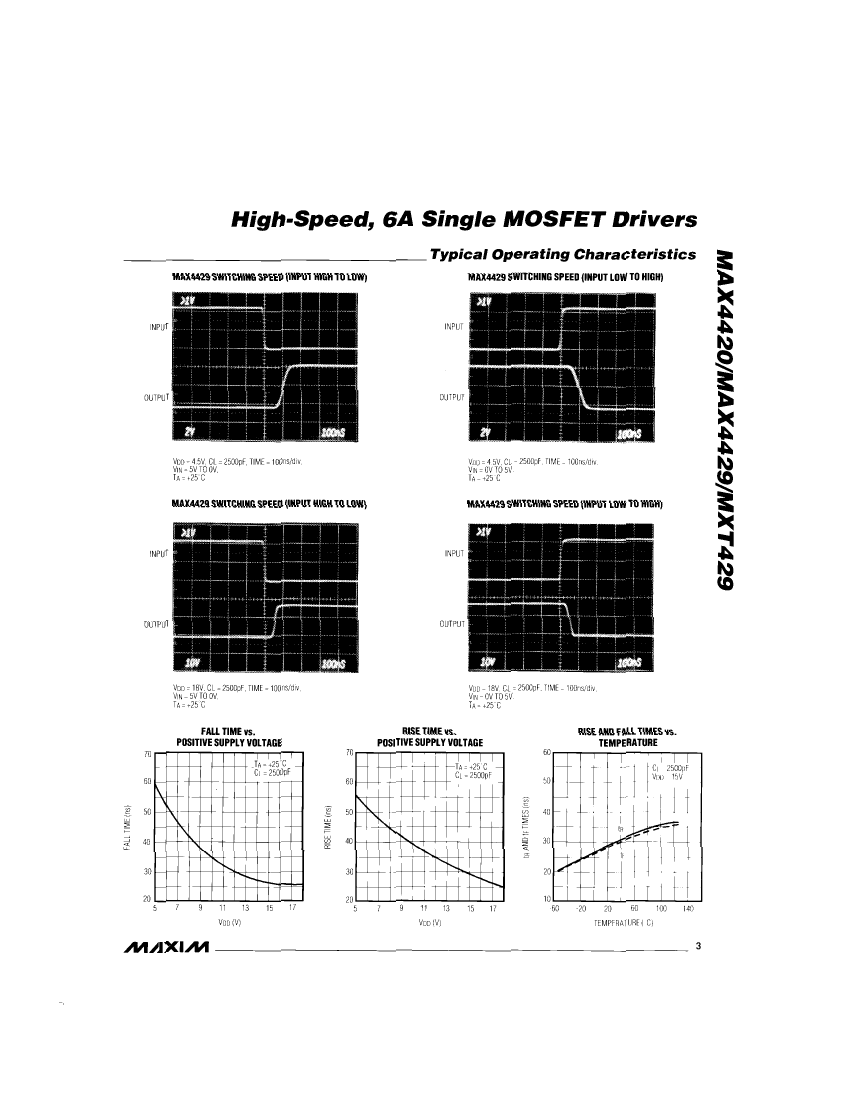

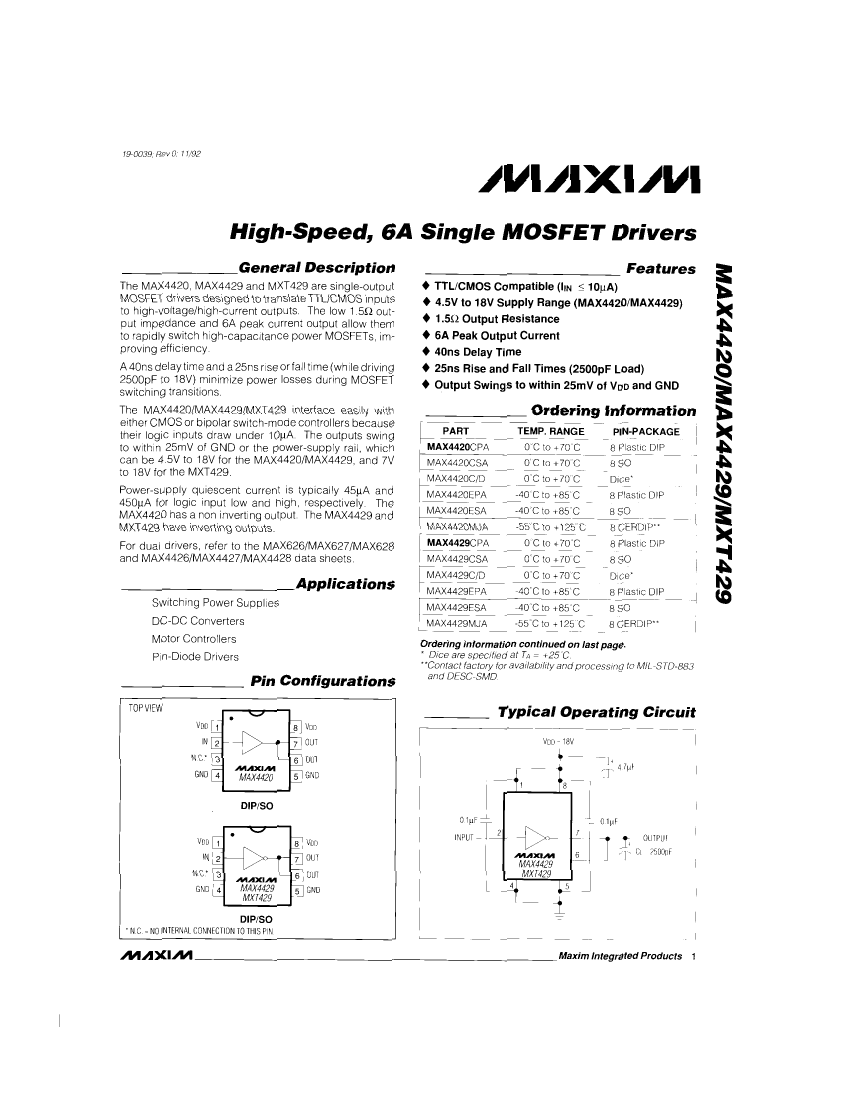

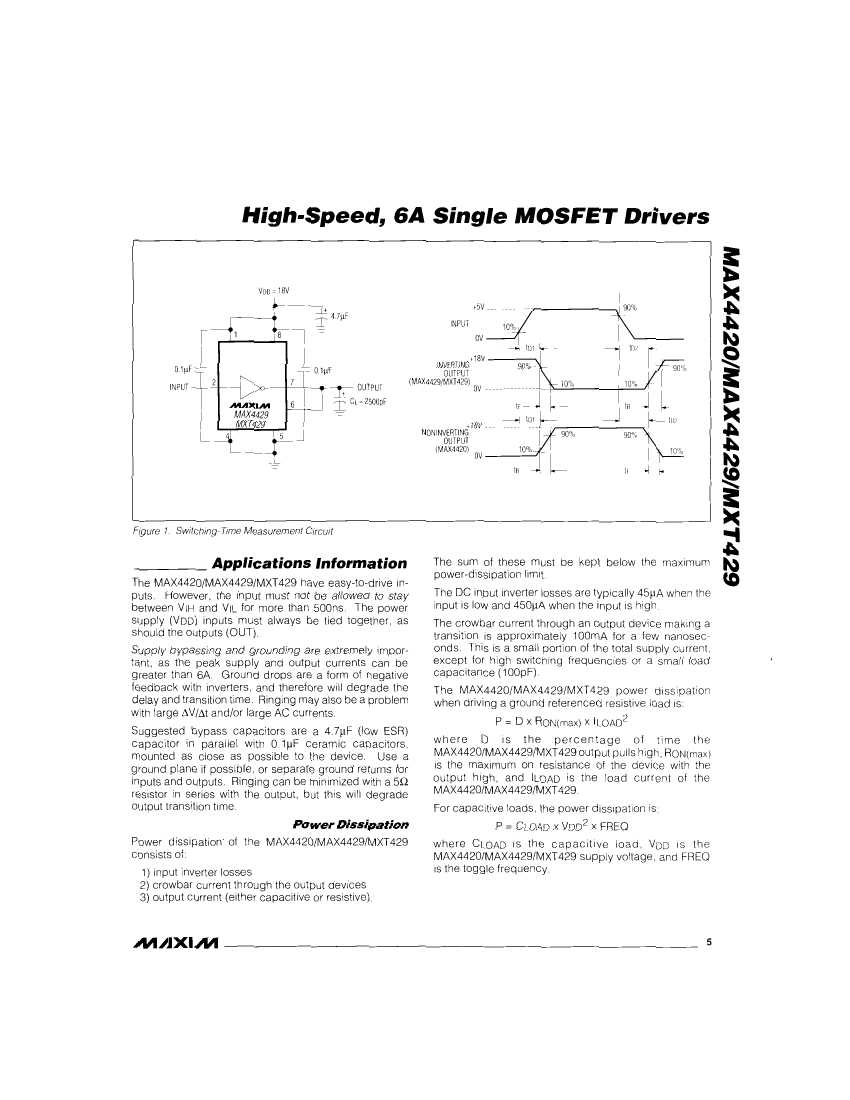

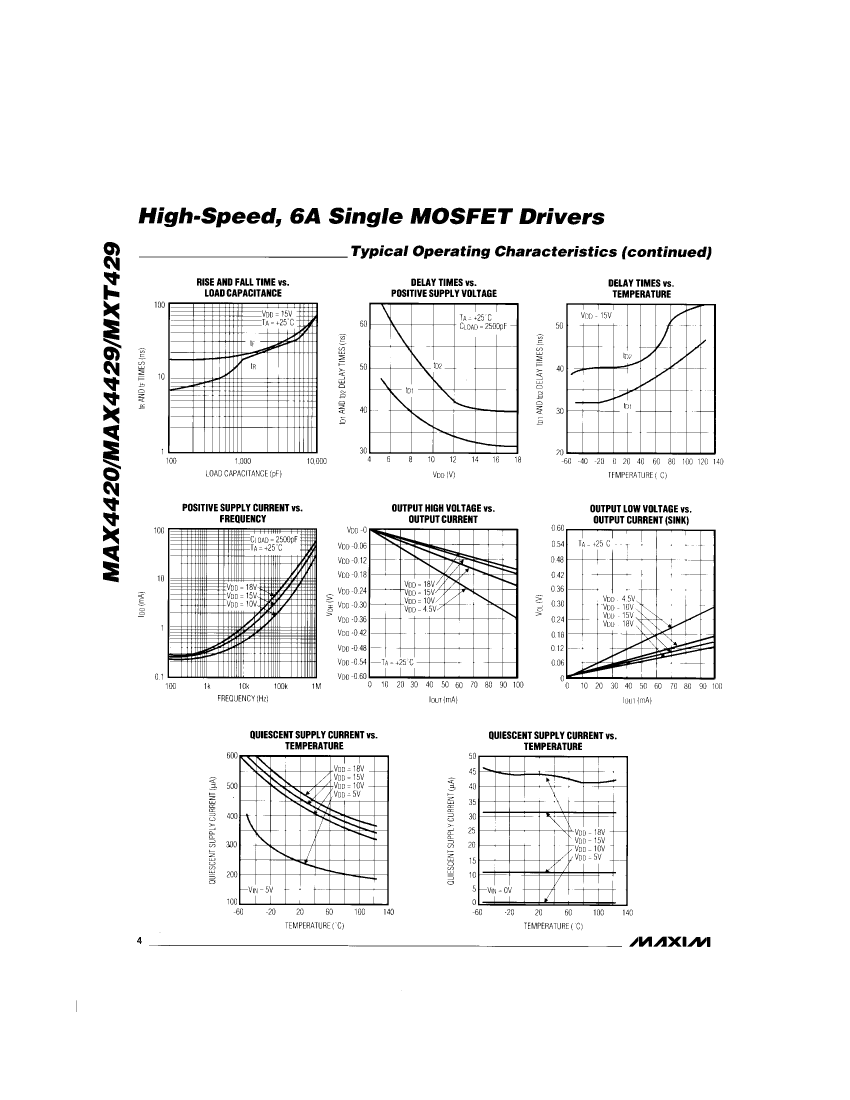

MAX4420MJA/883B Overview

Gate Drivers 6A MOSFET Driver (Noninverting)

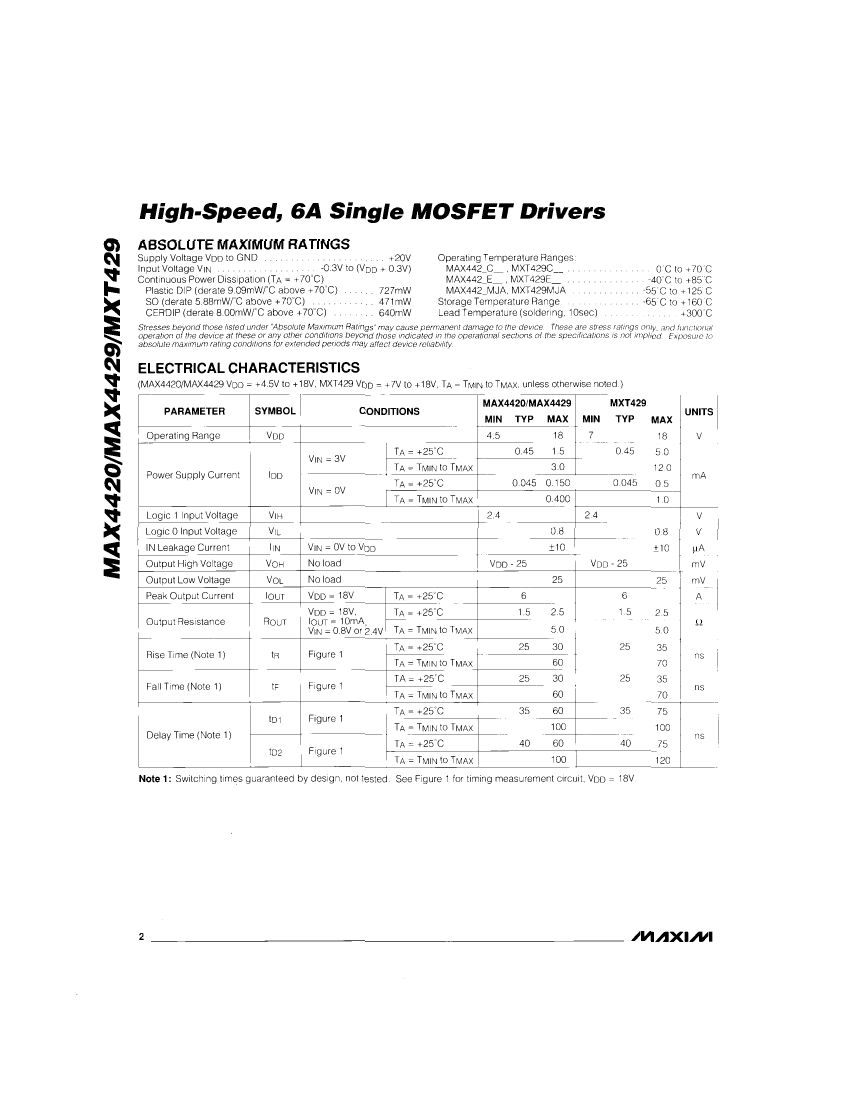

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERAMIC, DIP-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
high side driver	NO
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output peak current	6 A
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	LCC20,.35SQ
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	4.5/18 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.08 mm
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
Disconnect time	0.1 µs
connection time	0.1 µs
width	7.62 mm
