SBR12U100P5
Green
12A SBR
SUPER BARRIER RECTIFIER
®
POWERDI
®
Features
NEW PRODUCT
Ultra Low Forward Voltage Drop
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
+150°C Operating Junction Temperature
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: POWERDI5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208

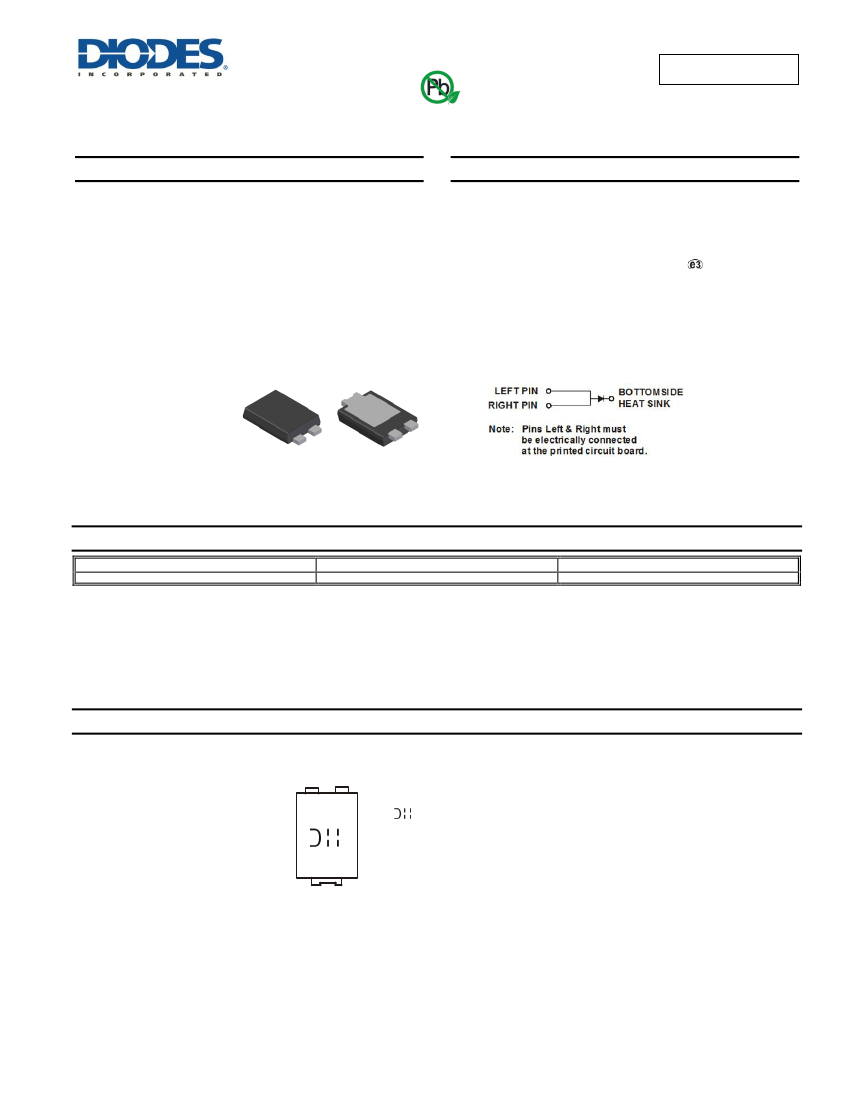

Polarity: See Diagram
Weight: 0.093 grams (Approximate)
POWERDI5
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
SBR12U100P5-13
Notes:
Case
POWERDI5
Packaging
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
S12U 100
YYW W K
S12U100 = Product Type Marking Code
= Manufacturers’ Code Marking
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 15 for 2015)
WW = Week Code (01 - 53)
K = Factory Designator
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR12U100P5
Document number: DS31388 Rev. 5 - 2
1 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR12U100P5
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
100
12
250
Unit
V
A
A
NEW PRODUCT
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Ambient (Note 5) T
A
= +25°C
Typical Thermal Resistance Junction to Lead
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJL
T
J
, T
STG
Value
27
3
-65 to +150
Unit
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 6)
Notes:
Symbol
V
F
I
R
Min
-
-
Typ
0.49
-
-
-
11
Max
-
0.51
0.71
0.25
40
Unit
V
mA
Test Condition
I
F
= 5A, T
J
= +25°C
I
F
= 5A, T
J
= +125°C
I
F
= 12A, T
J
= +25°C
V
R
= 100V, T
J
= +25°C
V
R
= 100V, T
J
= +125°C
5. Device mounted on Polymide PCB with 16x recommended pad layout.
6. Short duration pulse test used to minimize self-heating effect.
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR12U100P5
Document number: DS31388 Rev. 5 - 2
2 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR12U100P5
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
5.0
4.5
100
10
P
D
, POWER DISSIPATION (W)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
2
4
6
8
10
I
F(AV)
AVERAGE FORWARD CURRENT (A)

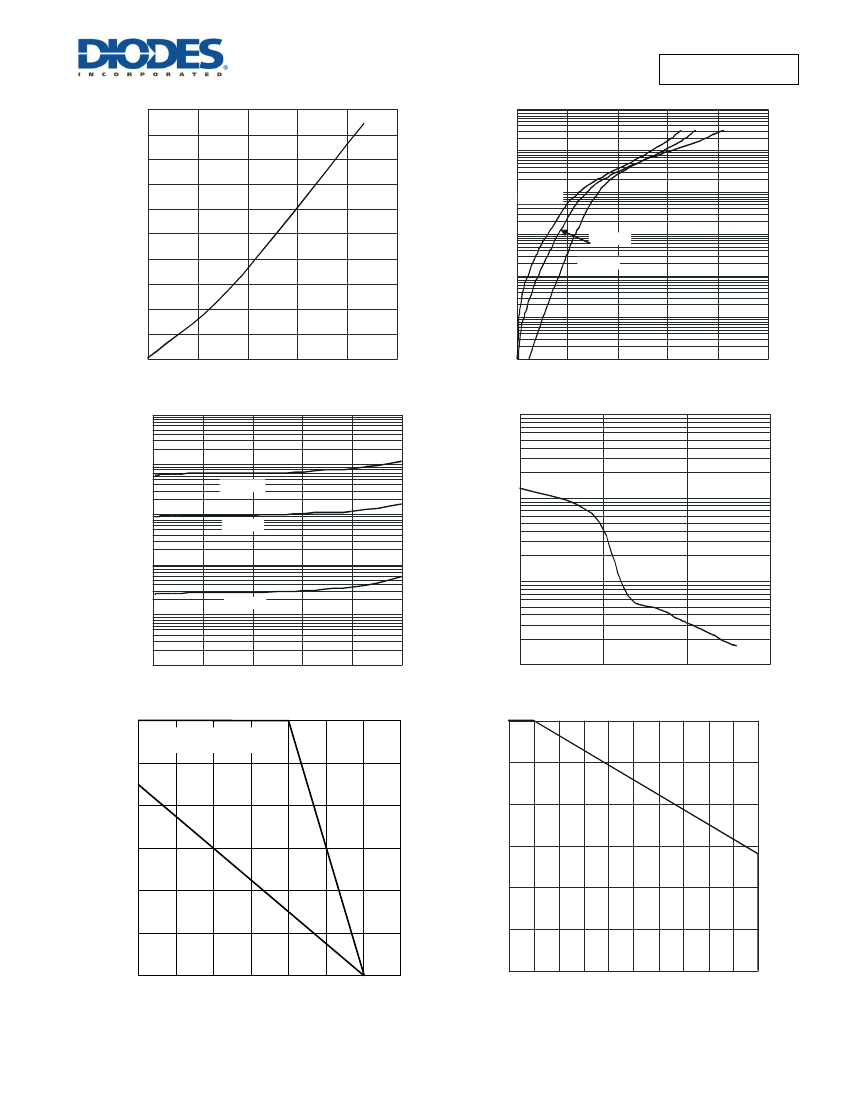

Fig. 1 Forward Power Dissipation
1
T
A
= 125°C
NEW PRODUCT
0.1
T
A
= 85°C
T
A
= 25°C
0.01
0.001
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
100
100,000
10
T
A
= 125°C
C
T
, TOTAL CAPACITANCE (pF)
10,000
1
T
A
= 85°C
0.1
1,000
T
A
= 25°C
0.01
0.001
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
R
JA
= R
JC
T
A
, DERATED AMBIENT TEMPERATURE (°C)
12
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Based on Lead Temperature (T
L
)
150
125
10
8
Note 5
100
6
75
4
50
2
0
0
25
50
75
100
125
150
T
L
, LEAD TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
175
25
0
0
10
20 30 40 50 60 70 80 90 100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR12U100P5
Document number: DS31388 Rev. 5 - 2
3 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR12U100P5

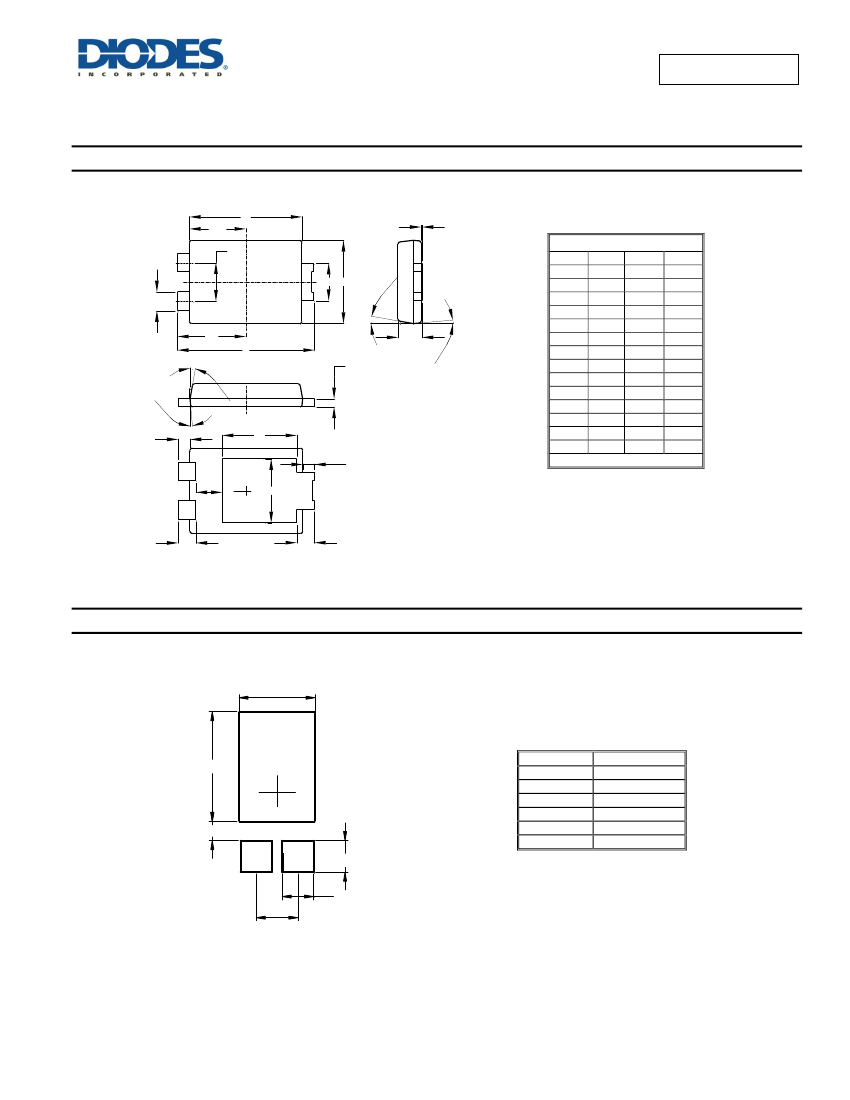

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
NEW PRODUCT
E1
E1/2
e
A1
2X b1
E/2
E
A2
10
°±
1°
10
°±
b2 D
A
5°
±1
L1
E2
L1
W
D2
POWERDI 5
Dim
Min
Max
Typ
A
1.05 1.15
1.10
A1
0.00 0.05
--
A2
0.33 0.43 0.381
b1
0.80 0.99
0.89
b2
1.70 1.88
1.78
D
3.90 4.05 3.966
D2
--
--
3.054
E
6.40 6.60 6.504
e
--
--
1.84
E1
5.30 5.45
5.37
E2
--
--
3.549
L
0.75 0.95
0.85
L1
0.50 0.65
0.57
W
1.10 1.41 1.255
All Dimensions in mm
®
1°
°
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR12U100P5
Document number: DS31388 Rev. 5 - 2
5°
±
1°
L
L
X1
Y1
G
Y
X
C
Dimensions
C
G
X
X1
Y
Y1
Value (in mm)
1.840
0.852
1.390
3.360
1.400
4.860
4 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR12U100P5
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
NEW PRODUCT
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR12U100P5
Document number: DS31388 Rev. 5 - 2
5 of 5
www.diodes.com
June 2015
© Diodes Incorporated
