DSC2G03
Silicon NPN epitaxial planar type
For high-frequency amplification
Features
High transition frequency f
T
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

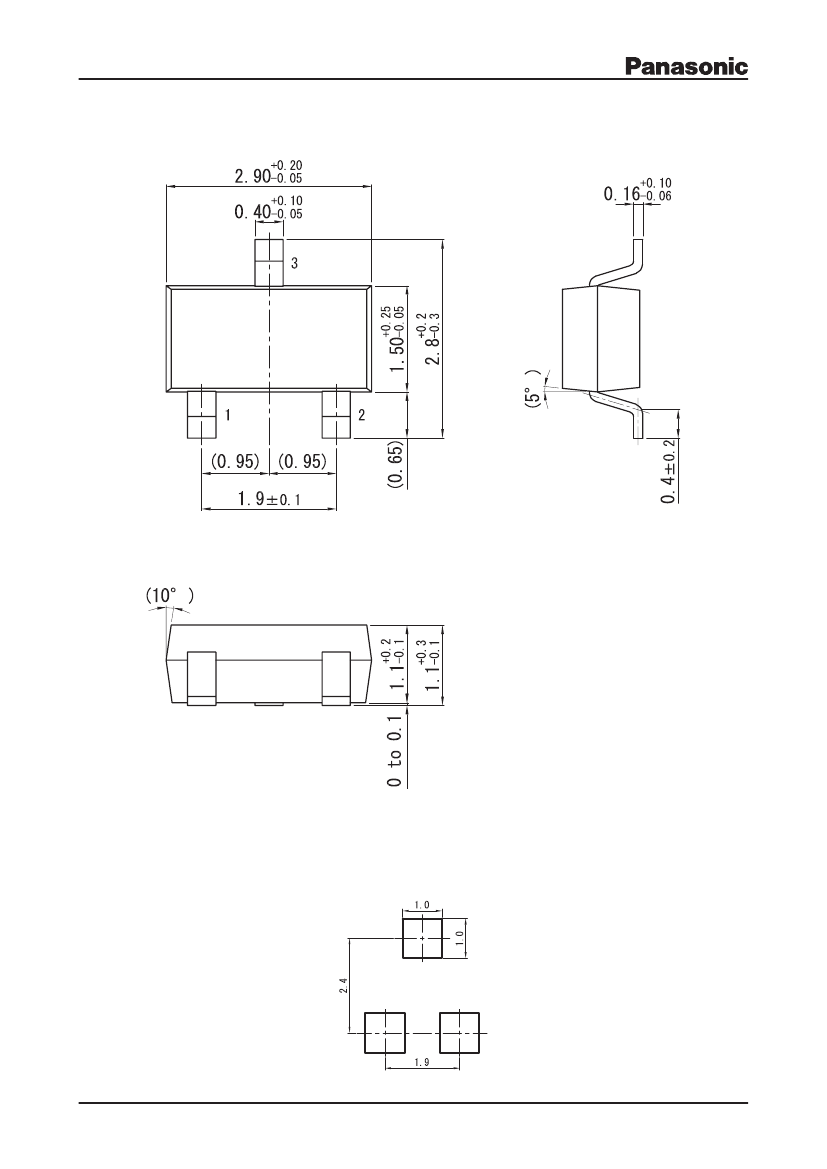

Unit: mm
Marking Symbol: C6
Packaging
DSC2G03×0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Collector power dissipation
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
opr
T
stg
Rating
30
20
3
50
200
150
–40 to +85
–55 to +150
Unit
V
V
V
mA
mW
°C
°C
°C
1: Base
2: Emitter
3: Collector
Panasonic
JEITA
Code
Mini3-G3-B
SC-59A
TO-236AA/SOT-23

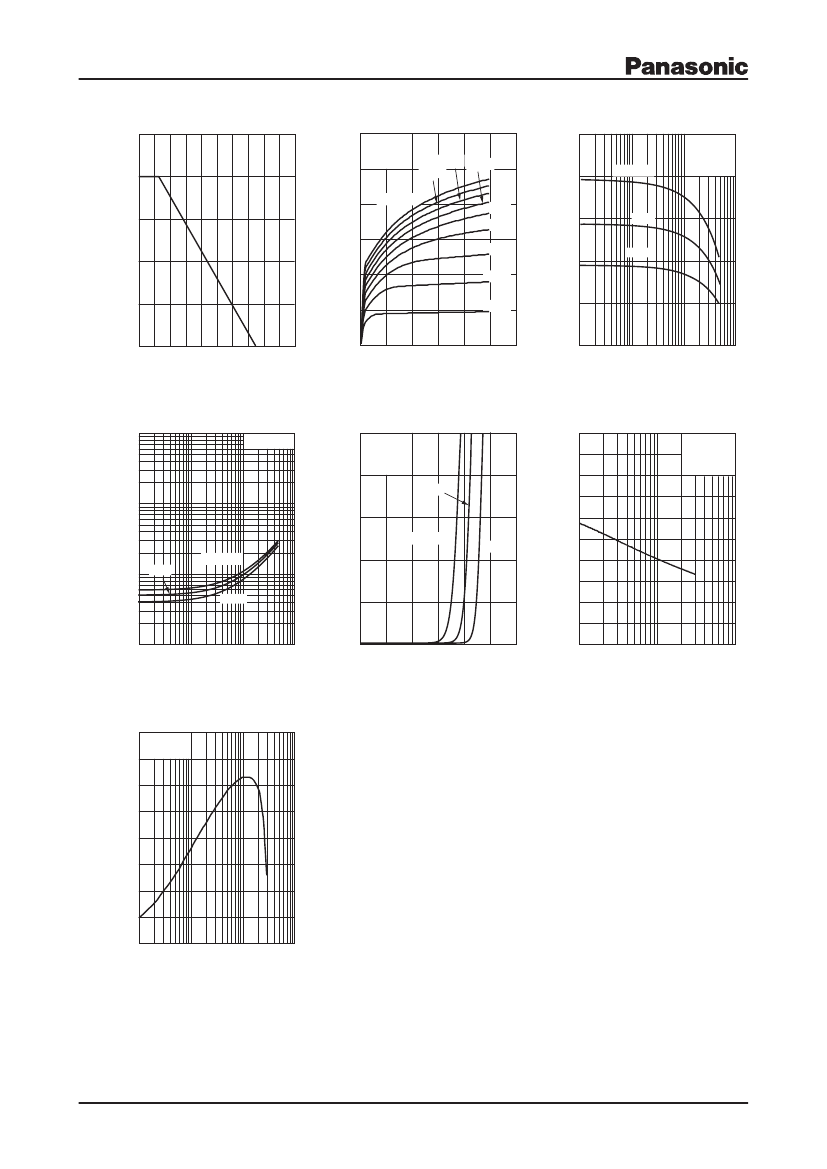

Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Emitter-base voltage (Collector open)
Base-emitter voltage
Forward current transfer ratio
Transition frequency
*1, 2
Reverse transfer capacitance
(Common emitter)
Reverse transfer capacitance
(Common base)
Power gain
2. *1: Pulse measurement
*
2: Rank classification
Code
Rank
f
T
Marking Symbol
T
T
800 to 1 400
C6T
S
S
1 000 to 1 600
C6S
0
No-rank
800 to 1 600
C6
Symbol
V
CBO
V
EBO
V
BE
h
FE
f
T
C
re
C
rb
PG
Conditions
I
C
= 100
mA,
I
E
= 0
I
E
= 10
mA,
I
C
= 0
V
CE
= 10 V, I
C
= 2 mA
V
CE
= 10 V, I
C
= 2 mA
V
CE
= 10 V, I
C
= 15 mA
V
CE
= 10 V, I
C
= 1 mA , f = 10.7 MHz
V
CB
= 6 V, I
C
= 0 , f = 1 MHz
V
CE
= 10 V, I
C
= 1 mA , f = 200 MHz
Min
30
3
Typ
Max
Unit
V
V
740
25
800
0.9
0.7
20
250
1 600
mV
MHz
pF
pF
dB
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Product of no-rank is not classified and have no marking symbol for rank.
Publication date: February 2014
Ver. BED
1
