CBRSDSH2-40
SURFACE MOUNT
2 AMP SILICON
SCHOTTKY BRIDGE RECTIFIER
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CBRSDSH2-40 is
a full wave bridge rectifier mounted in a durable epoxy
surface mount case, utilizing glass passivated chips.
MARKING: FULL PART NUMBER
FEATURES:
•
Low Leakage Current (40µA TYP @ VRRM)
•
High 2.0A Current Rating
•
Low VF Schottky Diodes (400mV TYP @ IF=2.0A)

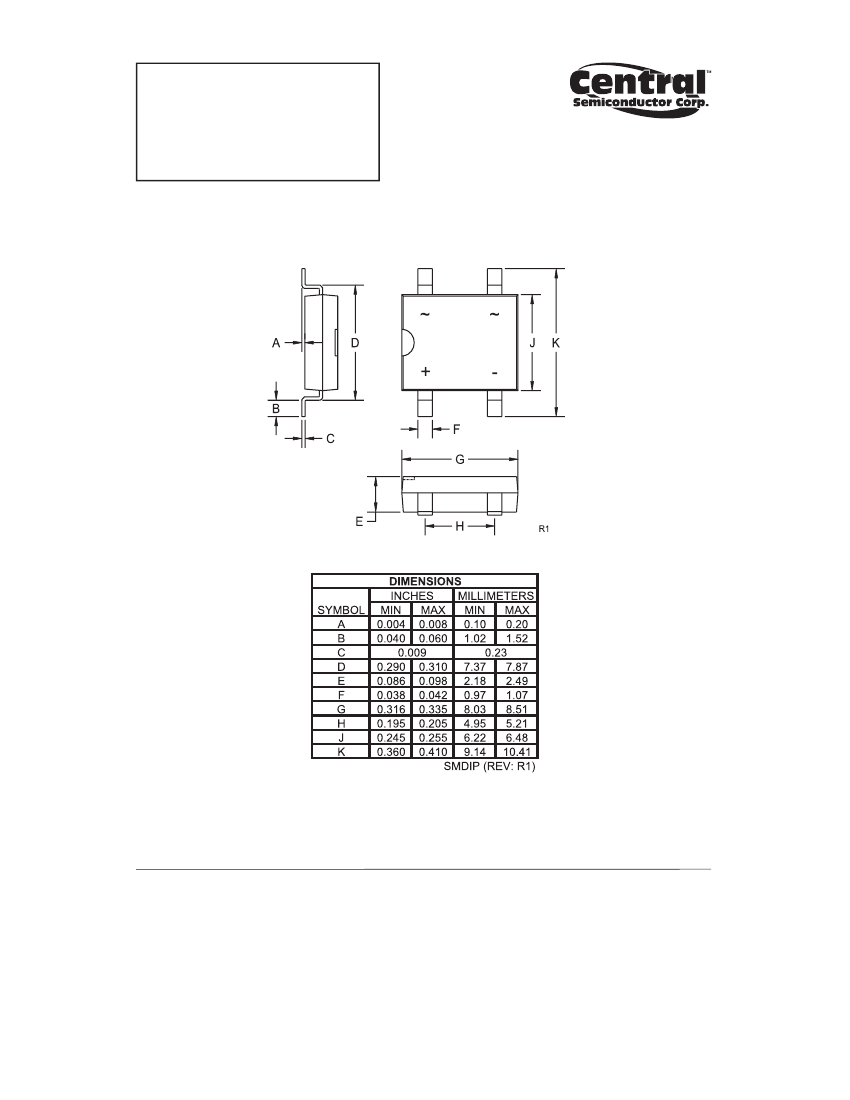

SMDIP CASE
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current
Peak Forward Surge Current (8.3ms)
Operating and Storage Junction Temperature
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance
SYMBOL
VRRM
VR
VR(RMS)
IO
IFSM
TJ, Tstg
Θ
JA
Θ
JL
40
40
28
2.0
110
-50 to +125
40
15
UNITS
V
V
V
A
A
°C
°C/W
°C/W
UNITS
µA
mV
pF
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
TYP
MAX
IR
VR=40V
40
70
VF
IF=2.0A
400
450
CJ
VR=4.0V, f=1.0MHz
400
500
Notes: (1) Devices mounted on PCB with 13mm x 13mm copper pads.

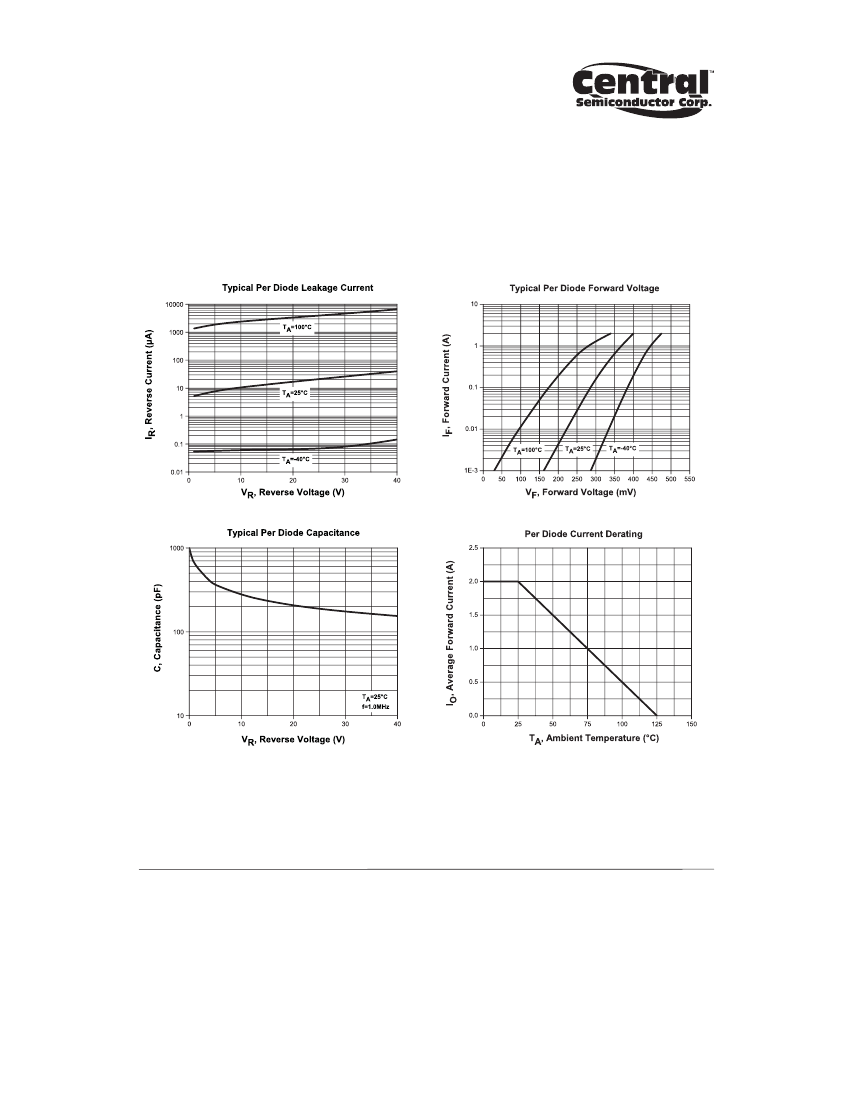

R1 (26-October 2011)
